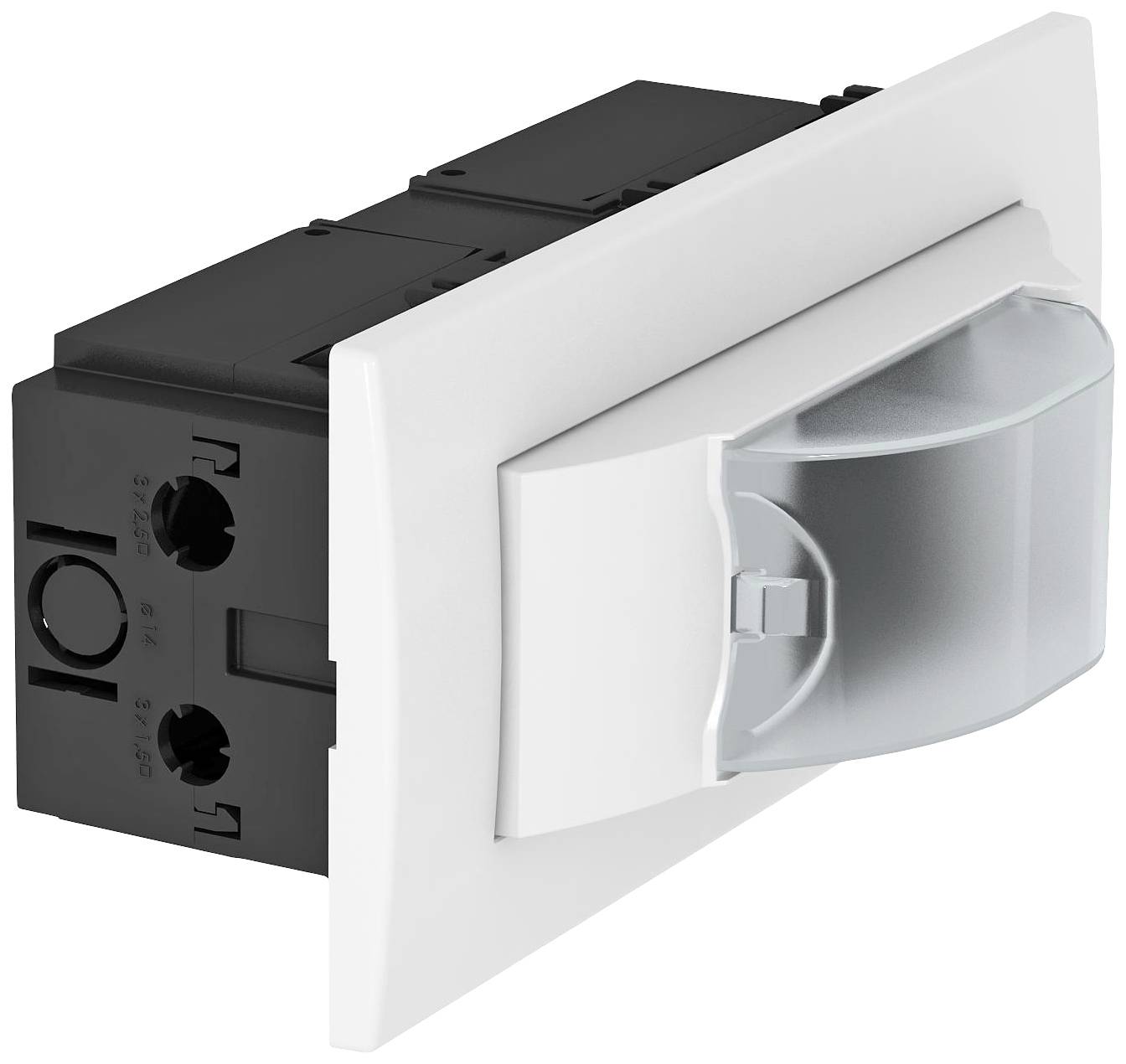

OBO Bettermann 6119319 IKR-6 RW #6119319 Switchboard module Flush mount No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard module
No. of rows
1
Mounting type
Flush mount
Width
84 mm
Height
344 mm
Technical specifications
- Width in the division units: 3
- The type of cover: Cover
- Design cover: with cut-out
- Transparent cover/door: yes
- Material of the Housing: plastic
- DIN rail: yes
- With mounting plate: no
- Growing possibility: no
- Emc Type: no
- Product type
Switchboard module
- No. of rows
1
- Mounting type
Flush mount
- Factory colour
White
- Width
84 mm
- Height
344 mm
- Dim
(W x H x D) 84 x 344 x 92 mm
- Depth
92 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965982 OBO Bettermann 6119319 IKR-6 RW #6119319 Switchboard module Flush mount No. of rows = 1 Content 1 pc(s)
Description
Installation unit for installation of circuit breakers or FI circuit-breakers in equipment cable channels. With 1 Rail 3 TE. Terminal blocks for N and PE on DIN rail completely wired with 6 mm². The built-in unit is pre-wired ready for connection. Cross-section of the cable is 6 mm². 2 Cable Glands Type V-Tec M20 are for cable entry included in the delivery
