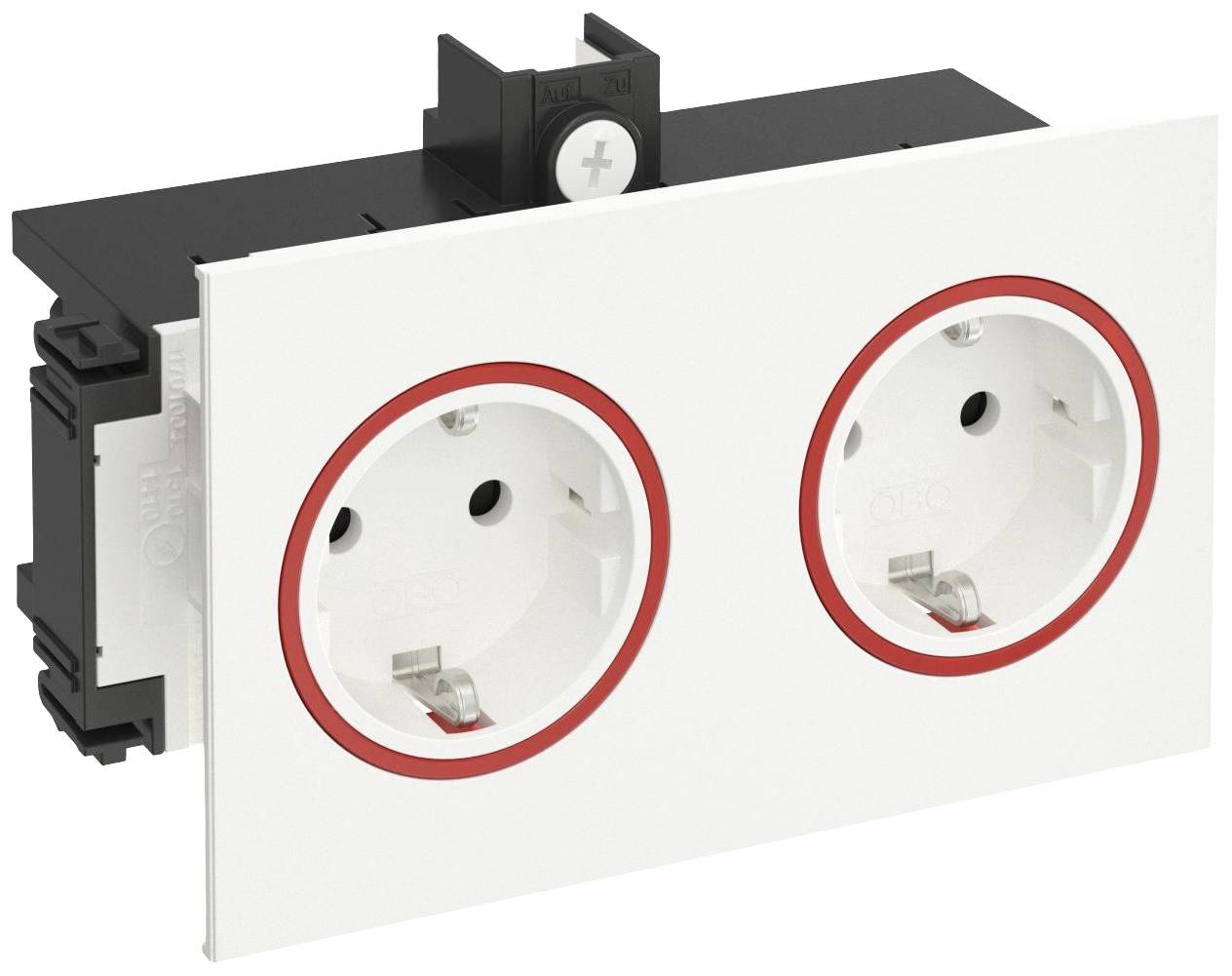

'Double socket with a red circle on a white background, without cover. Shows connection mechanism and detailed design.'

'Double socket with a red circle on a white background, without cover. Shows connection mechanism and detailed design.'

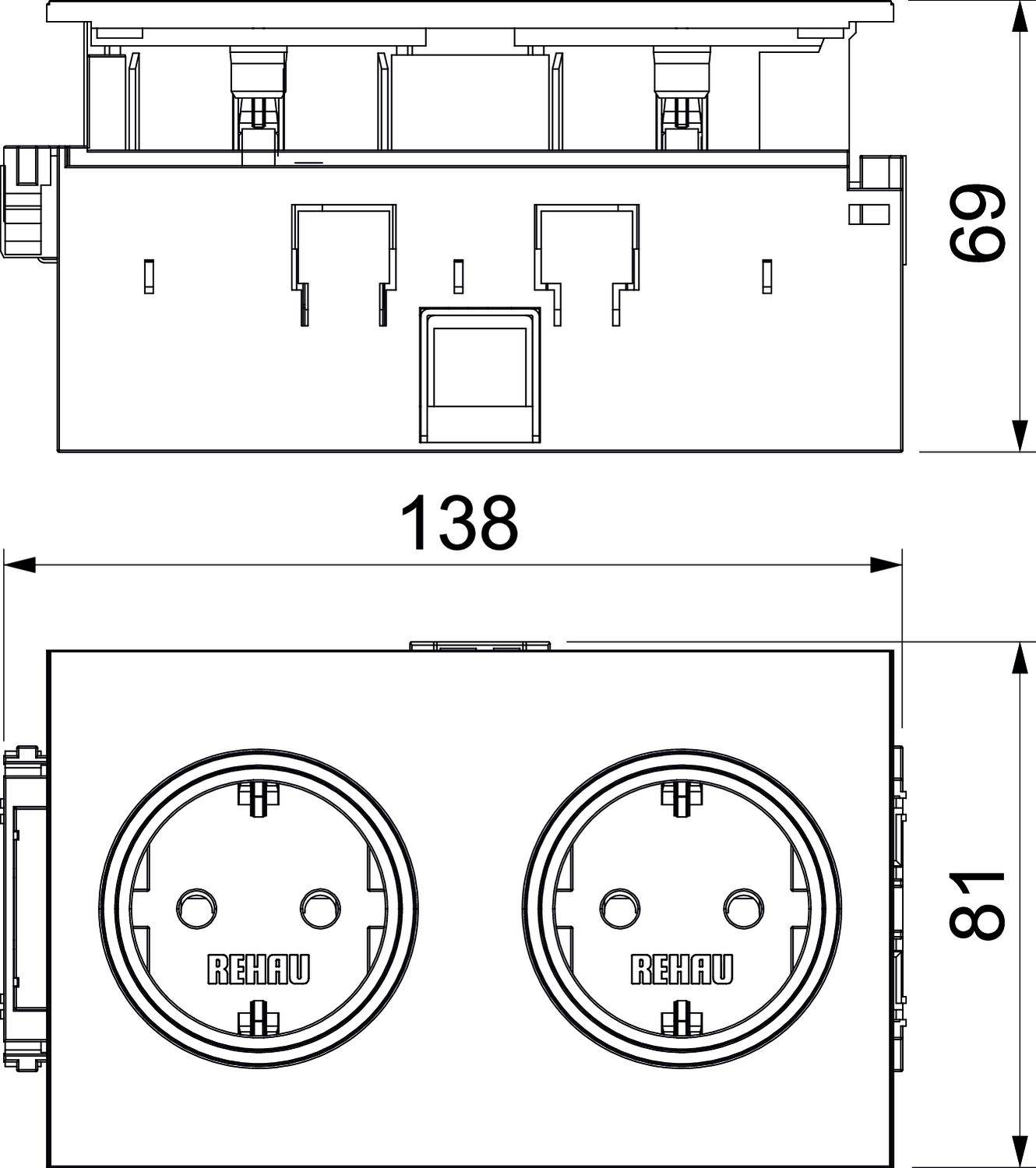

Technical drawing of a double socket with dimensions: width 138 mm, height 69 mm, depth 81 mm. Manufacturer name 'REHAU'.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Connection type: Plug-in terminal
Number of units: 2
Number of modules (for modular design): 2
Surface type: Matt
Suitable for protection class IP20
Halogen-free: Yes
Insulated mounting: Yes
Mounting type: Device installation duct
Nominal voltage: 250 V
Nominal current: 16 A
Surface: Untreated

Product type: Junction box

Type: Earthing contact socket-outlet, 2-way

Content: 1 pc(s)

Factory colour: White

Dim: (W x H) 140 mm x 82 mm

Width: 140 mm

Height: 82 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 2293656 OBO Bettermann 6121020 Junction box (W x H) 140 mm x 82 mm 1 pc(s) White

Description

SIGNA 2-way channel socket WITH increased touch protection, incl. cover (can be extended in any way by means of a plug combination), 16 A/250 V.

This text is machine translated.
