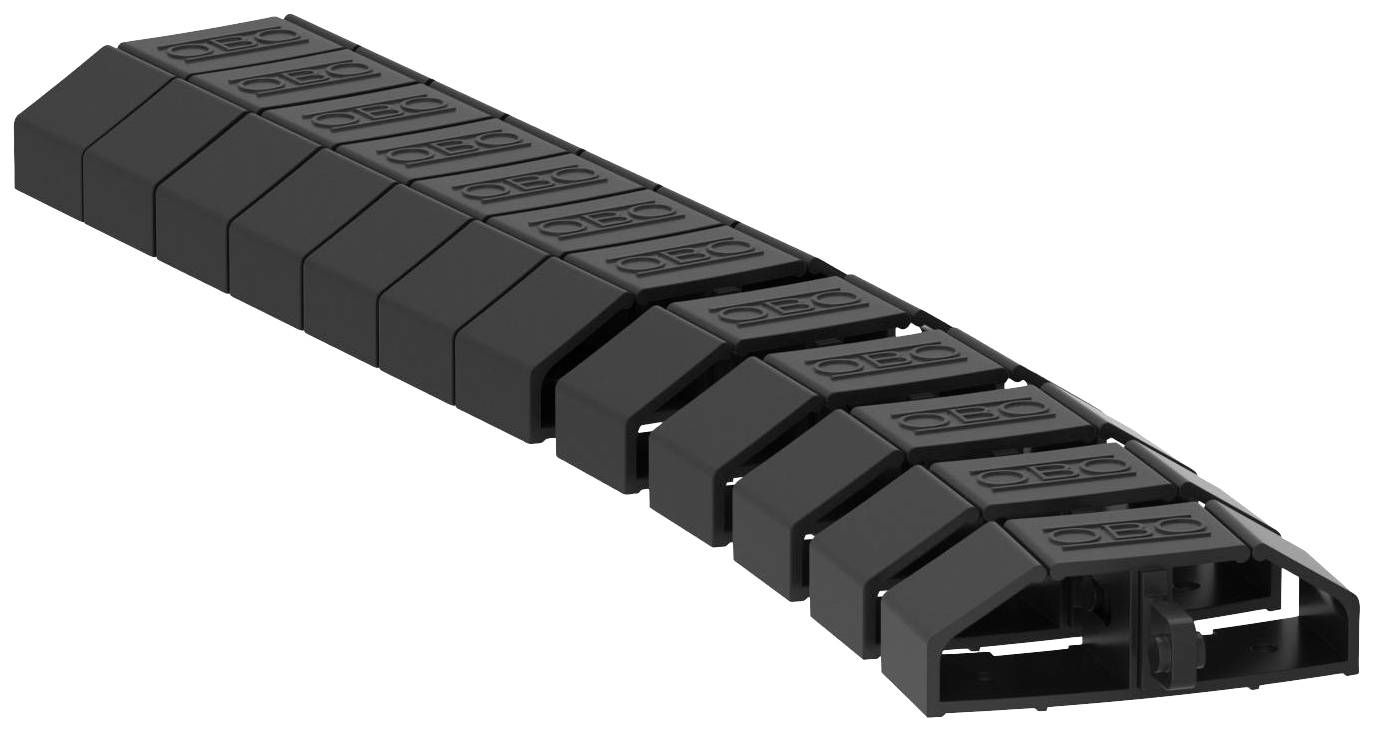

OBO Bettermann 6154930 Cable trunking (L x W x H) 1000 x 60 x 20 mm 1 pc(s) Anthracite
EAN:
Part number:
Item no:
Technical specifications
- Height = 20 mm
- Width = 60 mm
- Length = 1000 mm
- Material = Plastic
- Material good = polyvinyl chloride (PVC)
- Color = anthracite
- RAL-number =7021
- Number of fixed dividers = 1
- Mounting type = guide rail
- Product type
Cable trunking
- Content
1 pc(s)
- Factory colour
Anthracite
- Dim

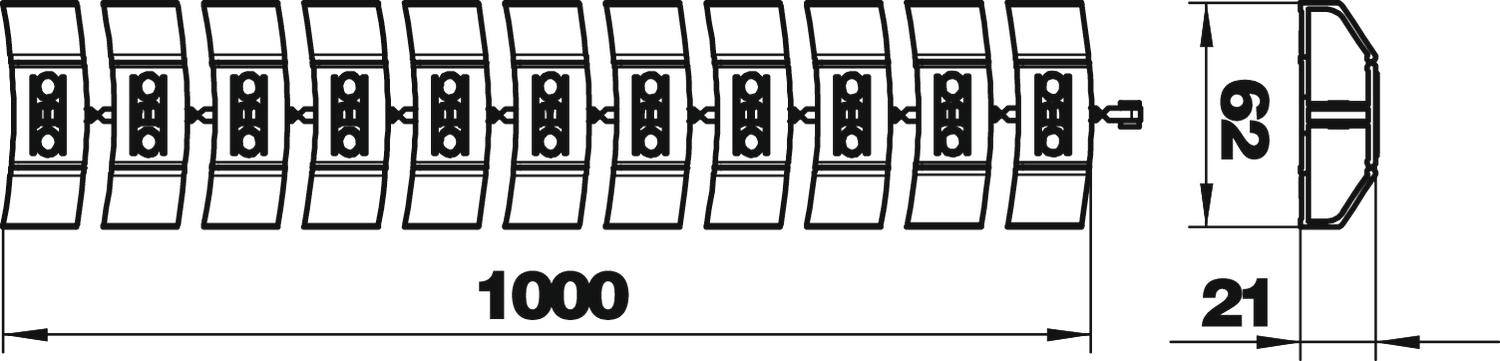

(L x W x H) 1000 x 60 x 20 mm
- Length
1000 mm
- Width
60 mm
- Height
20 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960678 OBO Bettermann 6154930 Cable trunking (L x W x H) 1000 x 60 x 20 mm 1 pc(s) Anthracite
Description
Properly and safely routes your cables to the desk. Connects table top with the cable duct or with the ground connection box. It has an integrated array separation due two chambers. The channel consists of 2 chambers, capacity per chamber: 2 cables with 8.5 mm diameter or 2 cables with 7.5 mm diameter or 4 cables with 7.0 mm diameter or 5 cables with 6.0 mm diameter
