OBO Bettermann 6225752 Cable ducting 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Design = length-wise and angle connector
- Joint connector horizontal = No
- Joint connector vertical = No
- Connection type = screw connectors
- Suitable for grid gutter = No
- Suitable for cable wire = Yes
- Suitable for cable channel = No
- Suitable for cable support system width = 300. .300 mm
- Suitable for cable support system height = 110 mm
- Length = 680 mm
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = galvanised
- Product type
Cable ducting
- Component
Connector piece
- Supplied length
680 mm
- Content
1 pc(s)
- Factory colour
Metal
- Dim

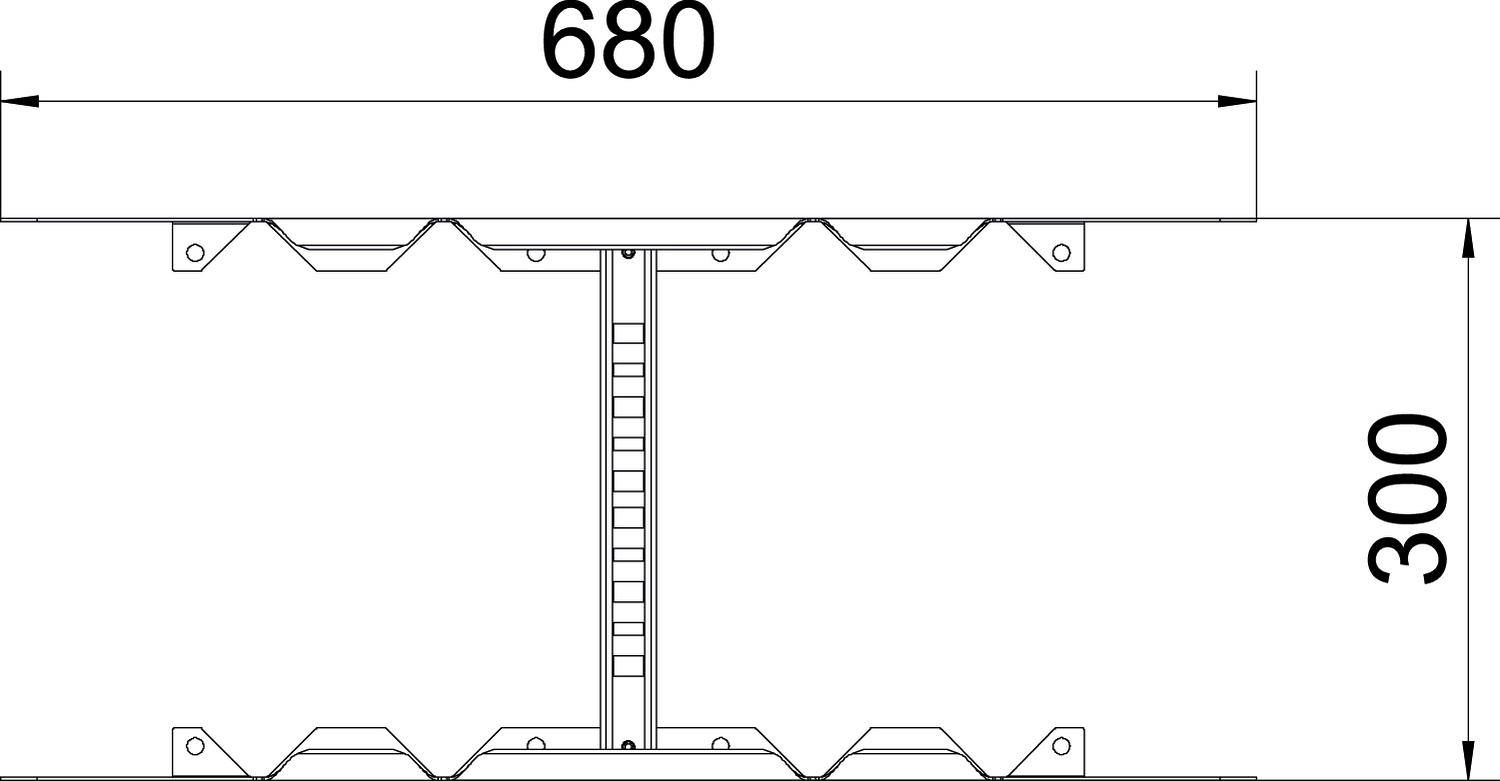

(L x W x H) 680 x 300 x 110 mm
- Length
680 mm
- Width
300 mm
- Height
110 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955567 OBO Bettermann 6225752 Cable ducting 1 pc(s) Metal
Description

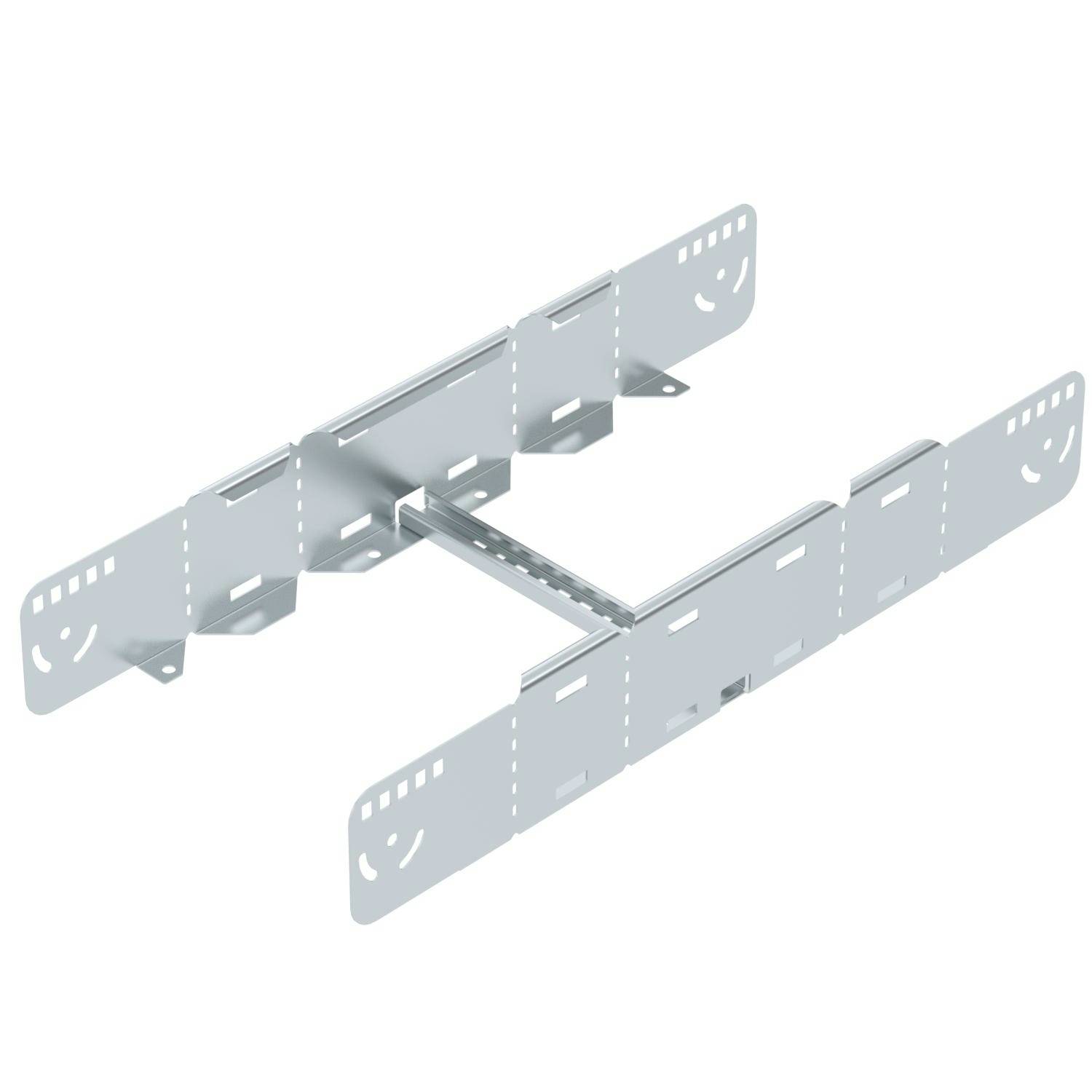

Multi-function connector for connection of cable conductors with the page height 110 mm. It can be symmetrical and asymmetrical reductions, continuous sheet of 0-60° and cultivation feeders can be created.
