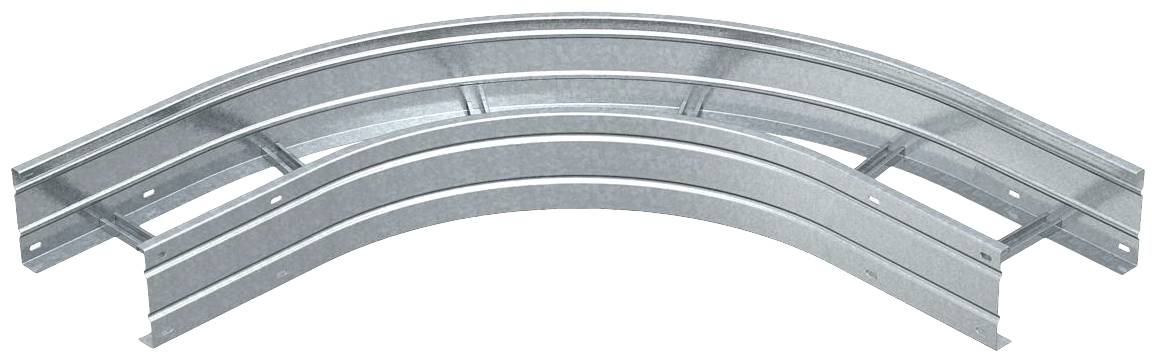

A curved metal piece with multiple fixing holes, most likely a component of a construction or assembly element.

A curved metal piece with multiple fixing holes, most likely a component of a construction or assembly element.

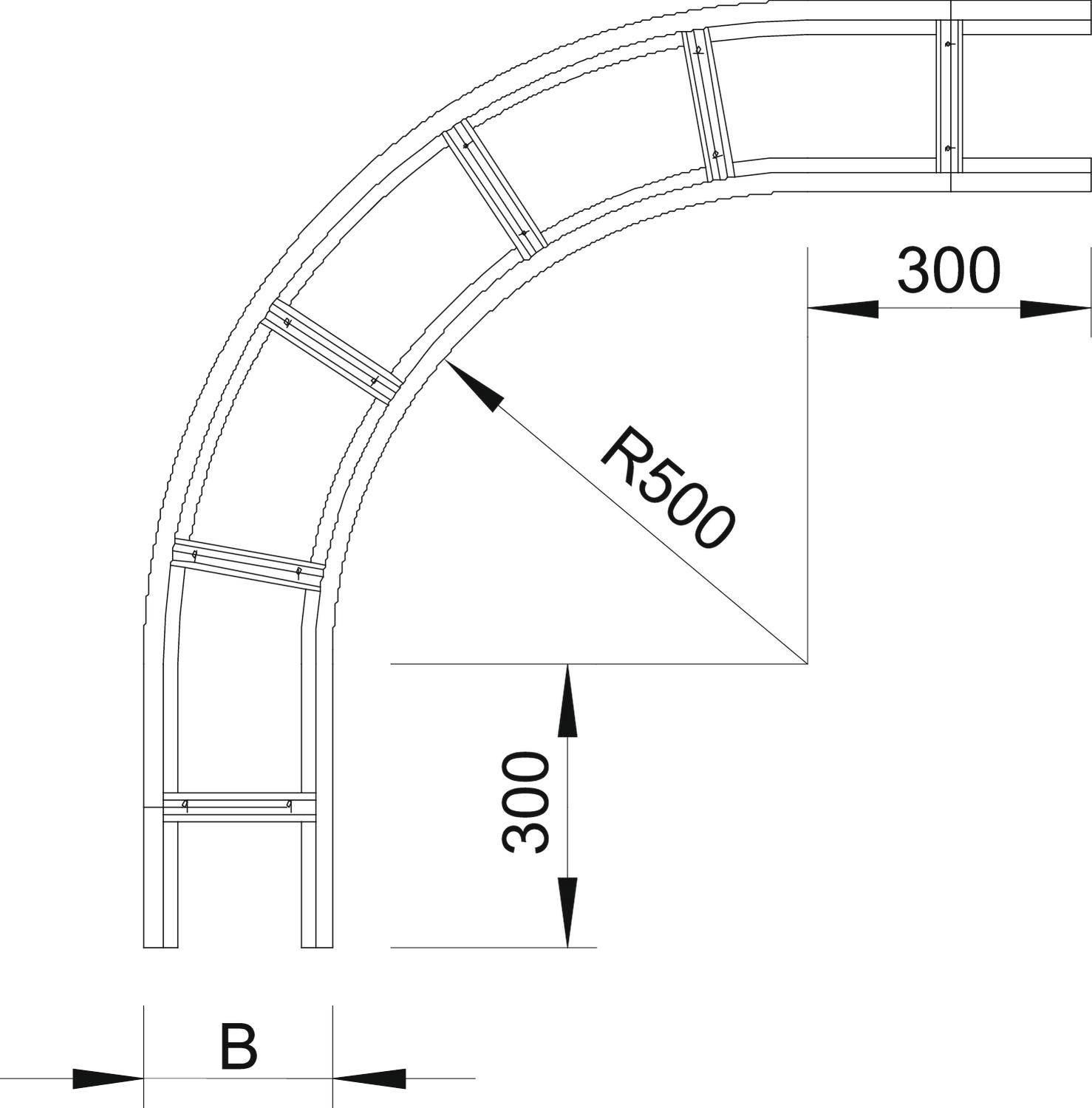

Technical drawing of a curved steel beam. The radius is 500 mm, and the distance between the cross-braces is 300 mm.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Turn (angle): 90°
Inner radius 500 mm
Cable conductor width 500 mm
Cable conductor height 160 mm
Surface: Galvanized
Direction change: Horizontal
Side holes: no.
Wide-span design: Yes
Material: Steel

Product type: Bend

Type: Design of the rung: Profile unperforated
Side bar type: Profile (open)

Content: 1 pc(s)

Dim: (W x H) 500 mm x 160 mm

Width: 500 mm

Height: 160 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 2297624 OBO Bettermann 6229360 Bend 1 pc(s)

Description

Molded part Arc 90° horizontal for all wide-span cable conductors with the side height 160 mm.
