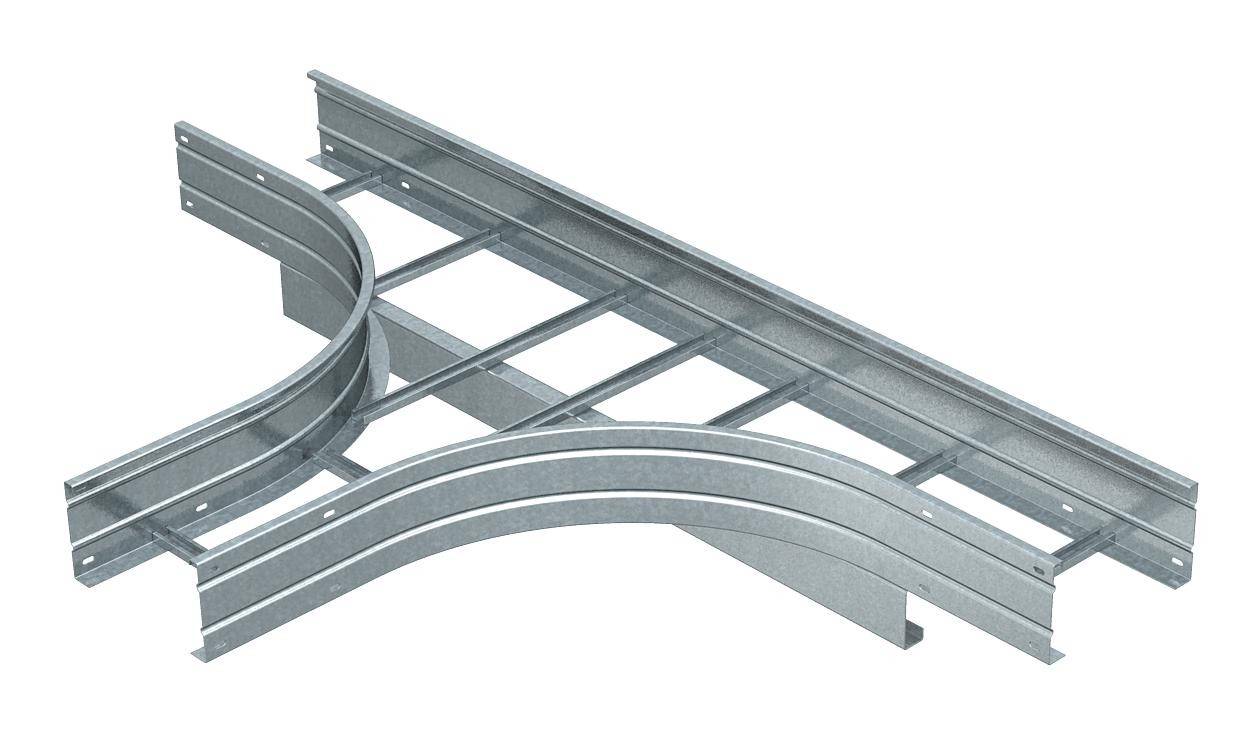

Metallic cable support system with a curved distributor, suitable for redirecting cables in various directions.

Metallic cable support system with a curved distributor, suitable for redirecting cables in various directions.

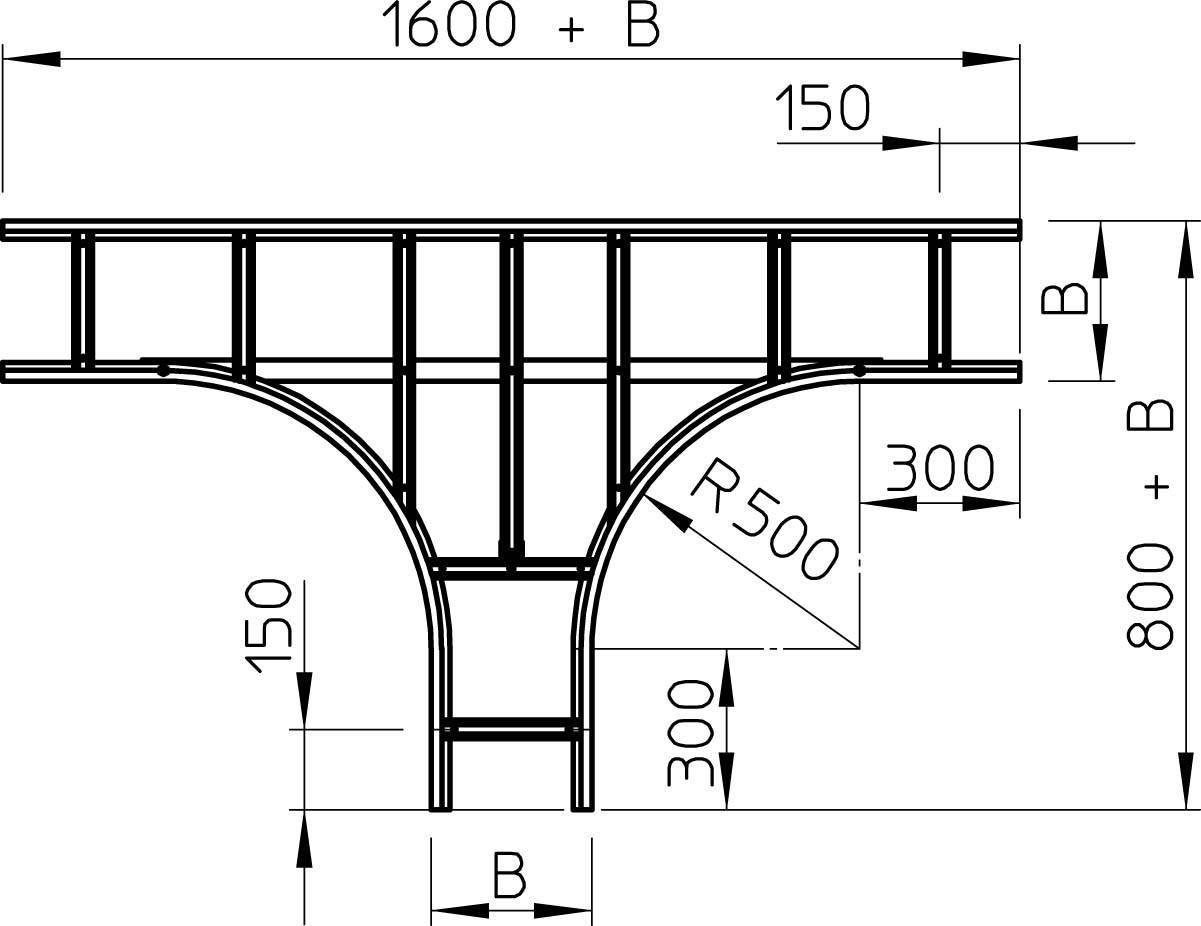

'Engineering drawing of a metal construction with a T-shaped frame. Dimensions: 1600 + B, 150, 800 + B, R500. Vertical and horizontal support beams visible.'

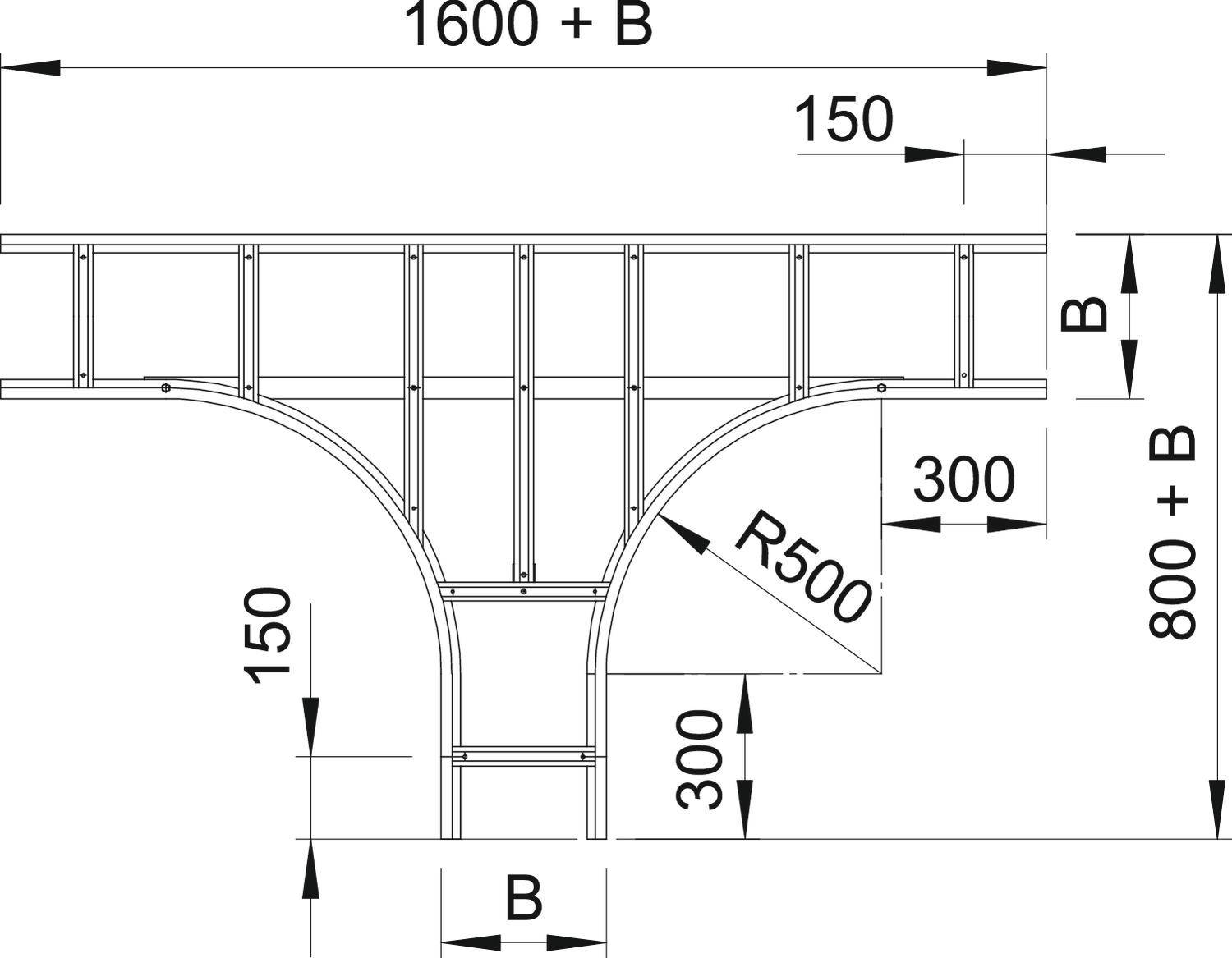

Technical drawing of a T-shaped pipe system with dimensions in millimetres, including '1600 + B', '800 + B', '150', '300' and 'R500'.

1/3

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Side arm design: Flat profile
Execution of rung: Profile unperforated
Cable length 160 mm
Cable conductor width 500 mm
Inner radius 500 mm
Wide-range version: Yes
Suitable for functional preservation: No.
Material: Stainless steel
Material quality: Stainless steel 316 Ti (1.4571)
Surface protection: Other

Product type: T piece

Component: T-piece

Content: 1 pc(s)

Dim: (W x H) 500 mm x 160 mm

Width: 500 mm

Height: 160 mm

Material (details): stainless steel

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3160713 OBO Bettermann 6229826 T piece 1 pc(s)

Description

T-piece, horizontal, for all wide-range cable conductors with side height of 160 mm.
