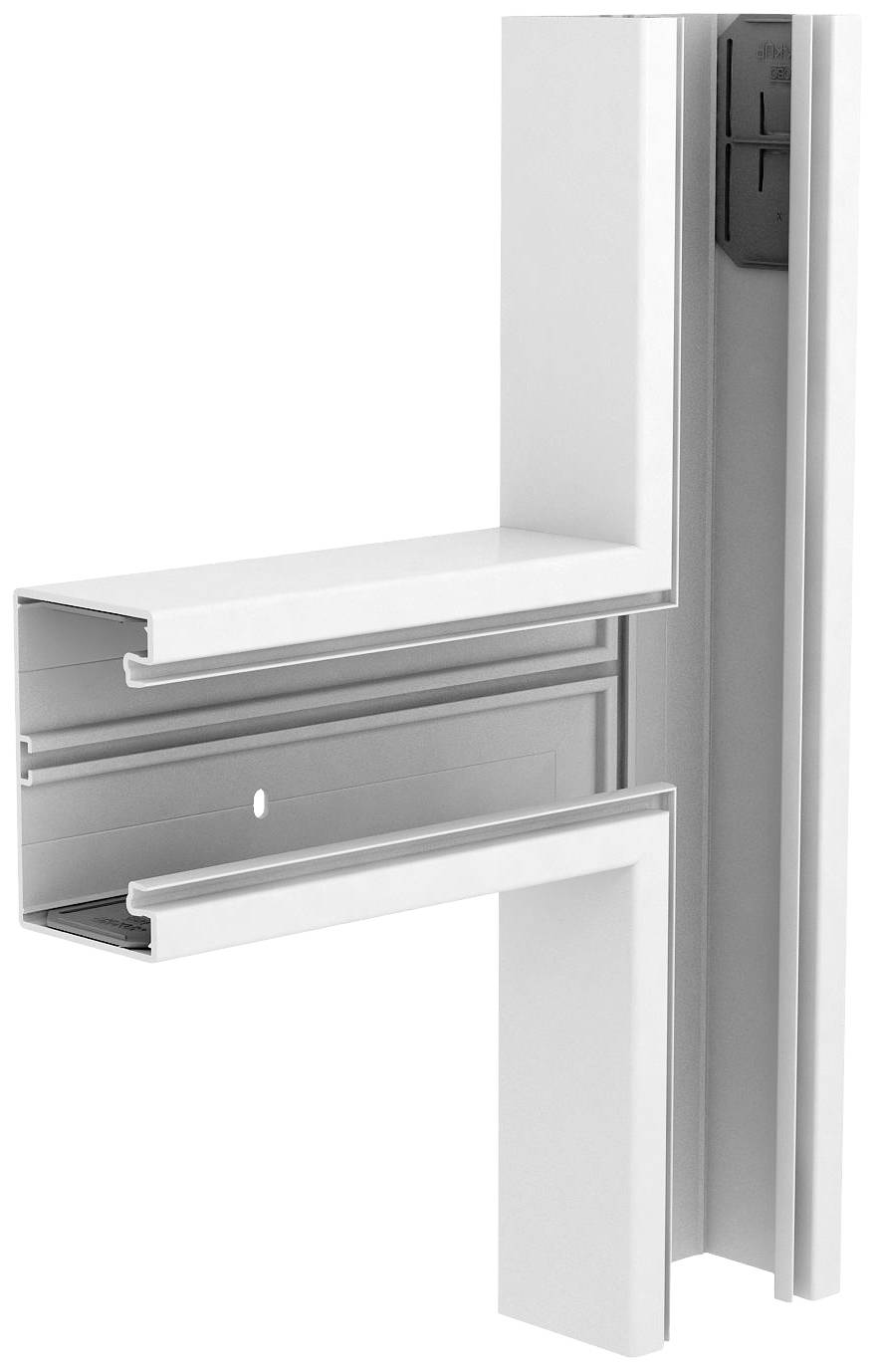

OBO Bettermann 6274360 T piece (W x D) 110 mm x 70 mm 1 pc(s) Pure white
EAN:
Part number:
Item no:
Technical specifications
- Width = 110 mm
- Depth = 70 mm
- Width of the Branch = 110 mm
- Number of upper parts = 1
- Top width 1 = 76.5 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = Yes
- Design = lower section
- Material = Plastic
- Material good = polyvinyl chloride (PVC)
- Halogen-free = No
- Surface = untreated
- Color = pure white
- RAL-number = 9010
- With protective film = No
- With channel connector = Yes
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
T piece
- Content
1 pc(s)
- Factory colour
Pure white

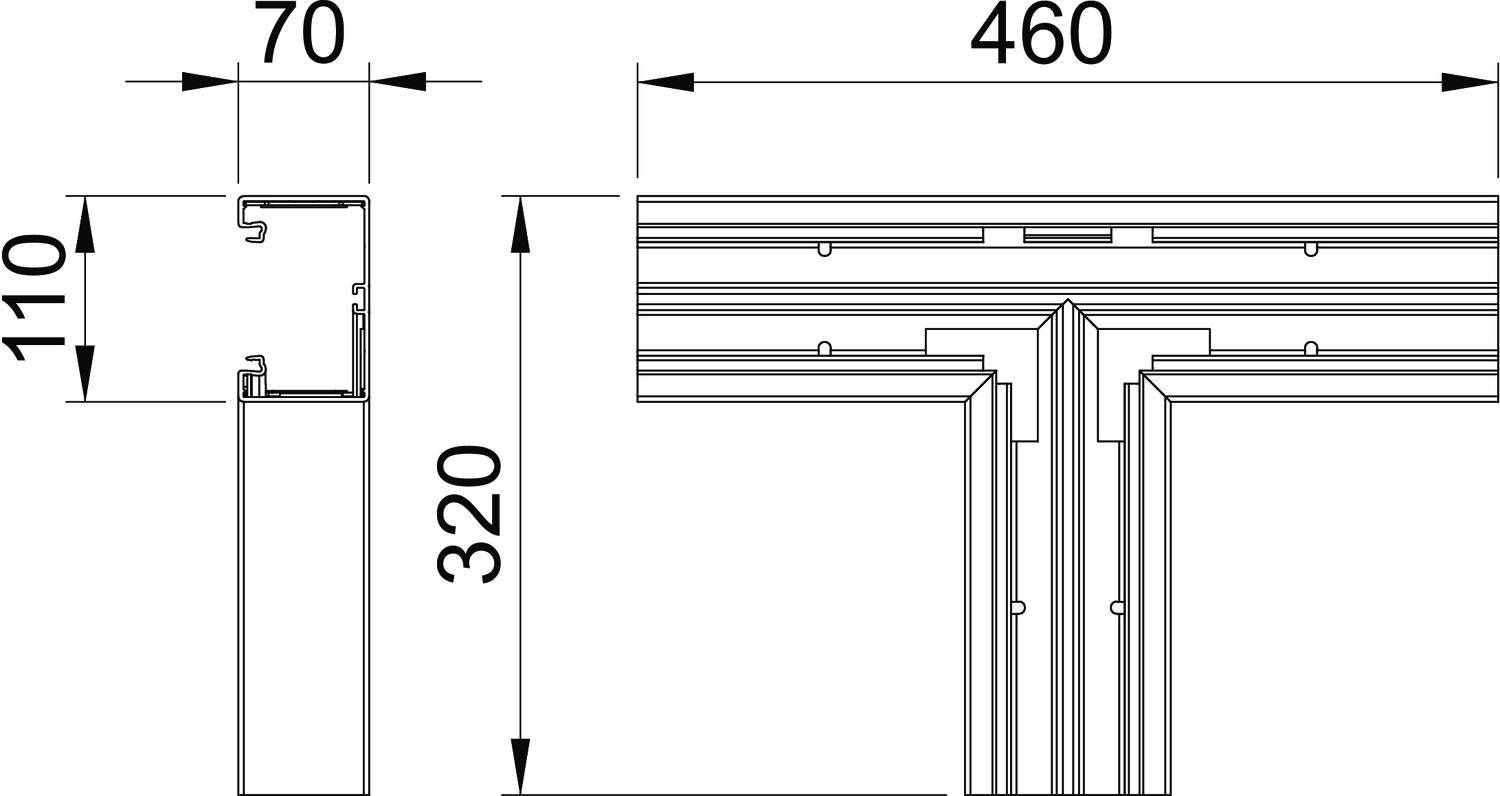

- Dim
(W x D) 110 mm x 70 mm
- Width
110 mm
- Depth
70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961896 OBO Bettermann 6274360 T piece (W x D) 110 mm x 70 mm 1 pc(s) Pure white
Description
T-piece to change the direction of the GEK-K device with system opening 80 mm.
This text is machine translated.
This text is machine translated.
