OBO Bettermann 6274412 Fasteners (W x D) 139 mm x 73 mm 1 pc(s) Light grey
EAN:
Part number:
Item no:
Technical specifications
- Width = 139 mm
- Depth = 73 mm
- Number of upper parts = 1
- Top width 1 = 0 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = Yes
- Design = hood molded part
- Angle = 80./00°
- Material = Plastic
- Material good = other
- Halogen-free = Yes
- Surface = untreated
- Color = light gray
- RAL-number = 7035
- With protective film = No
- With channel connector = No
- Mounting holes in the Ground = No
- Type of mounting the top parts = across
- With cable retaining clip = No
- Product type
Fasteners
- Content
1 pc(s)
- Factory colour
Light grey
- Dim

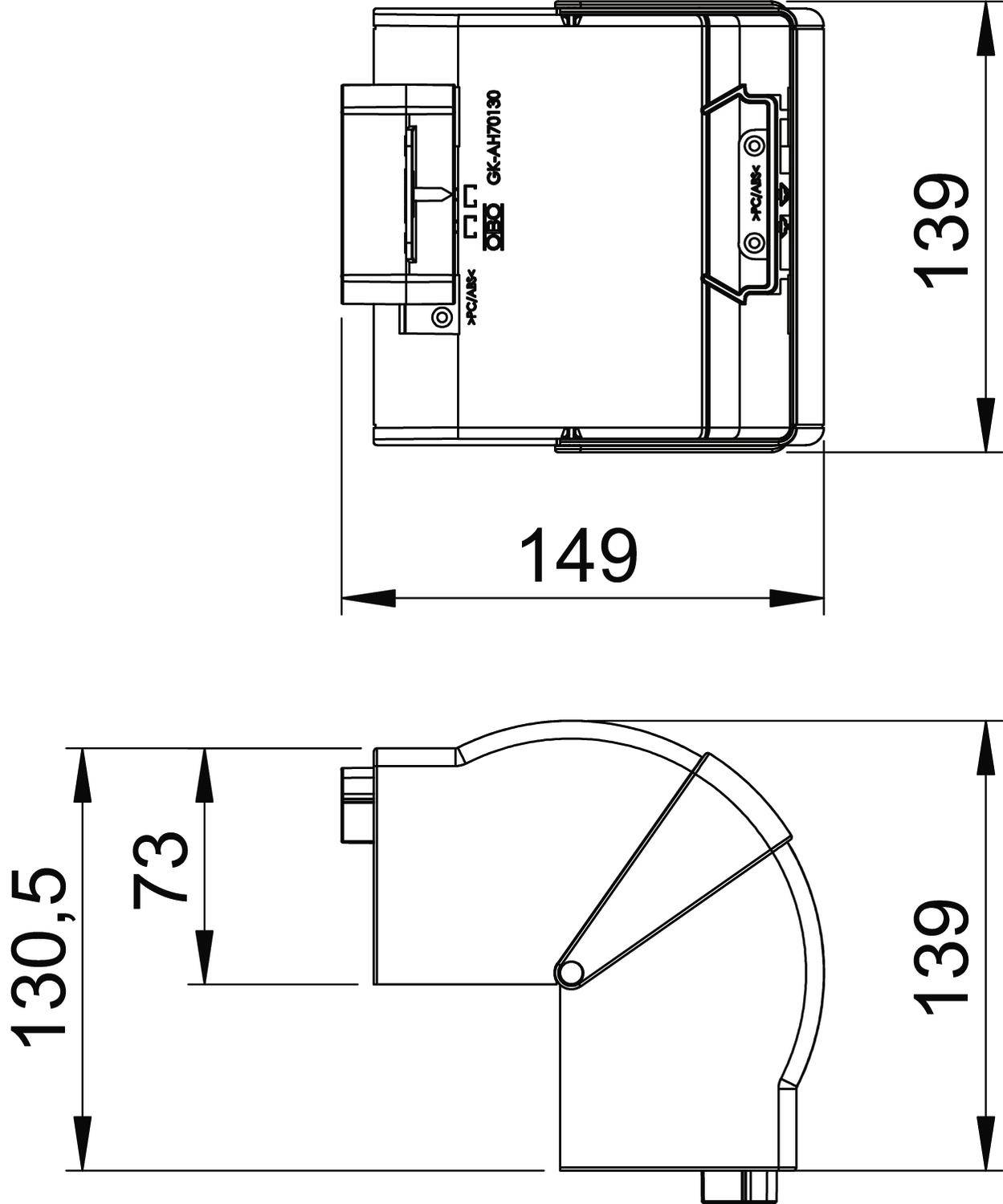

(W x D) 139 mm x 73 mm
- Width
139 mm
- Depth
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960813 OBO Bettermann 6274412 Fasteners (W x D) 139 mm x 73 mm 1 pc(s) Light grey
Description

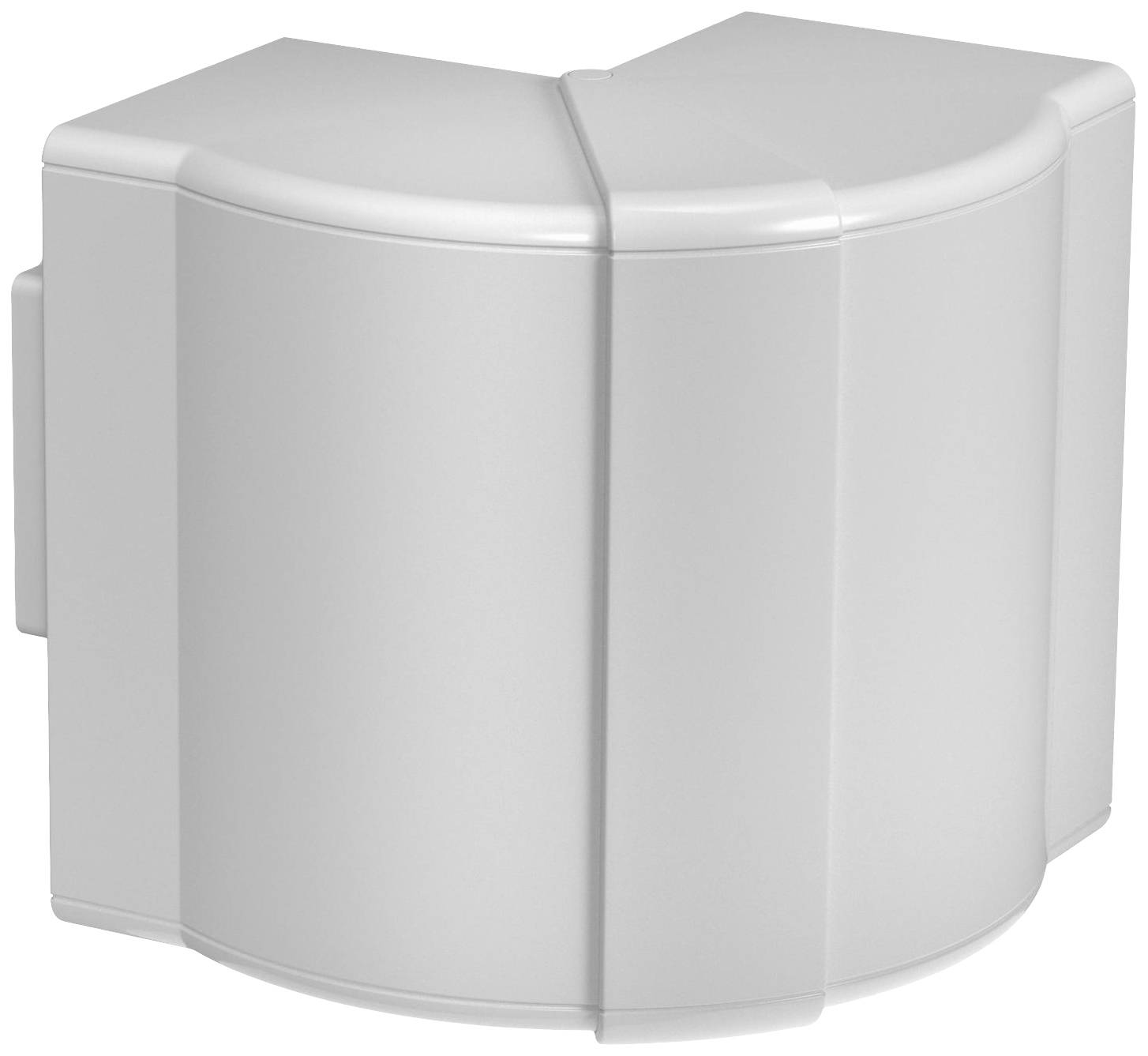

Exterior angle-hood from PC/ABS to change the direction of device installation ducts Rapid 80 of the systems GK, GS and GA. The molded parts are variable from 80° - 100° adjustable and can be used for symmetric and asymmetric channels
