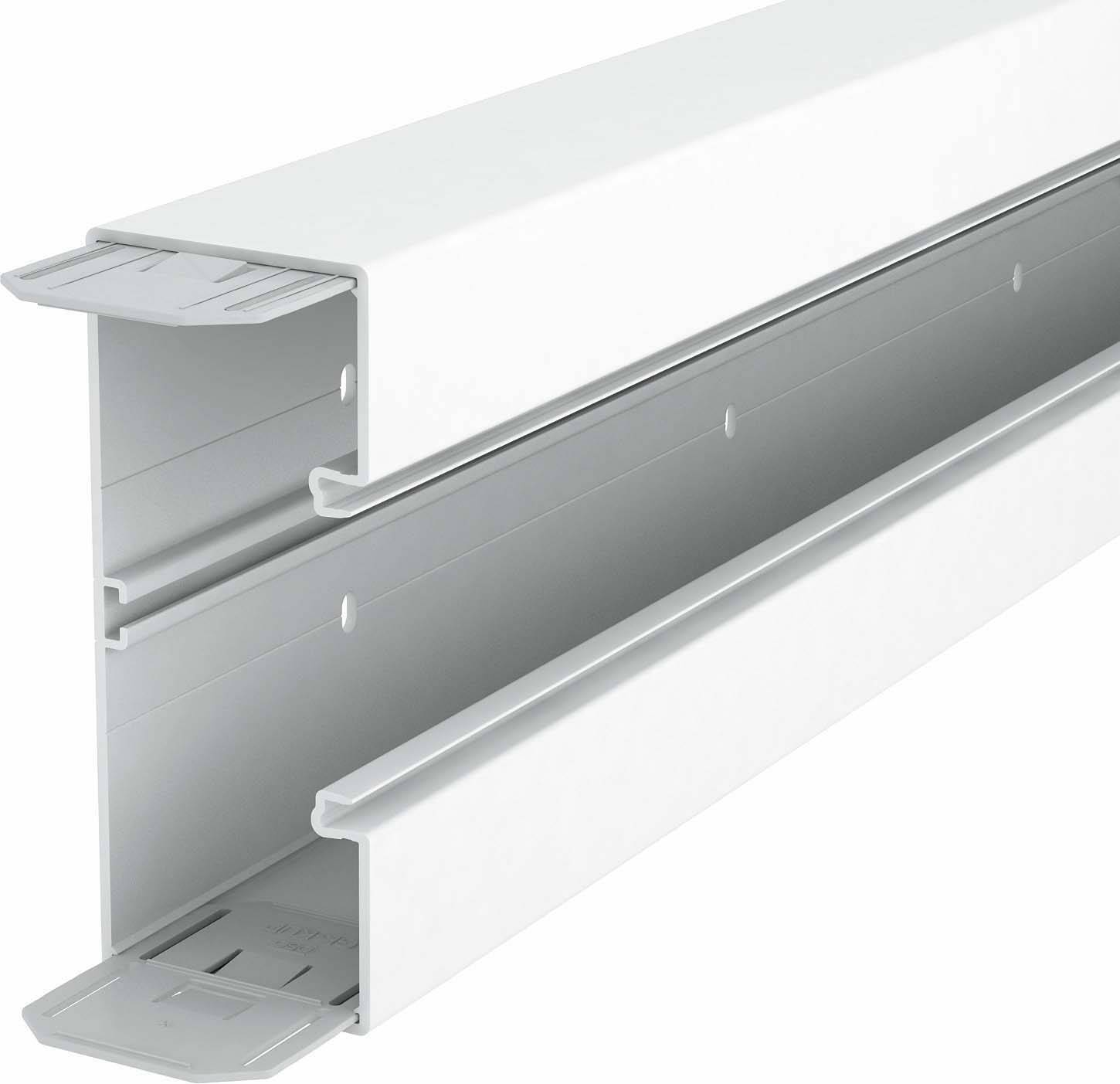

OBO Bettermann 6274700-1 Internal wiring ducts (L x W) 2000 mm x 170 mm 1 pc(s) Pure white
EAN:
Part number:
Item no:
Technical specifications
- Width = 170 mm
- Depth = 70 mm
- Length = 2000 mm
- Number of upper parts = 1
- Upper parts supplied = No
- Top width 1 = 76.5 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = Yes
- Design rectangular = Yes
- Material = Plastic
- Material good = polyvinyl chloride (PVC)
- Halogen-free = No
- Surface = untreated
- Color = pure white
- RAL-number = 9010
- Design back panel (inside) = run-C-profile
- With protective film = No
- Number of pluggable dividers = 1
- With channel connector = Yes
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
Internal wiring ducts
- Content
1 pc(s)
- Factory colour
Pure white
- Dim
(L x W x H) 2000 x 170 x 170.0000 mm
- Length
2000 mm
- Width
170 mm
- Height
170.0000 mm
- Depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956443 OBO Bettermann 6274700-1 Internal wiring ducts (L x W) 2000 mm x 170 mm 1 pc(s) Pure white
Description
GK device installation duct made up of lead-free polyvinyl chloride suitable for mounting directly on the wall or on wall consoles. The attachment is done via the control holes in the channel. The GK device installation duct has a C-profile on the ground for a partition made of plastic. In the device installation sockets of the Series 71 DG... you all switch programs in bearing ring and support bracket design and installation devices can be installed module 45. The System opening is 76.5mm. Each channel length on one side is a clutch pair of pre-assembled, upper parts are to contribute to set
