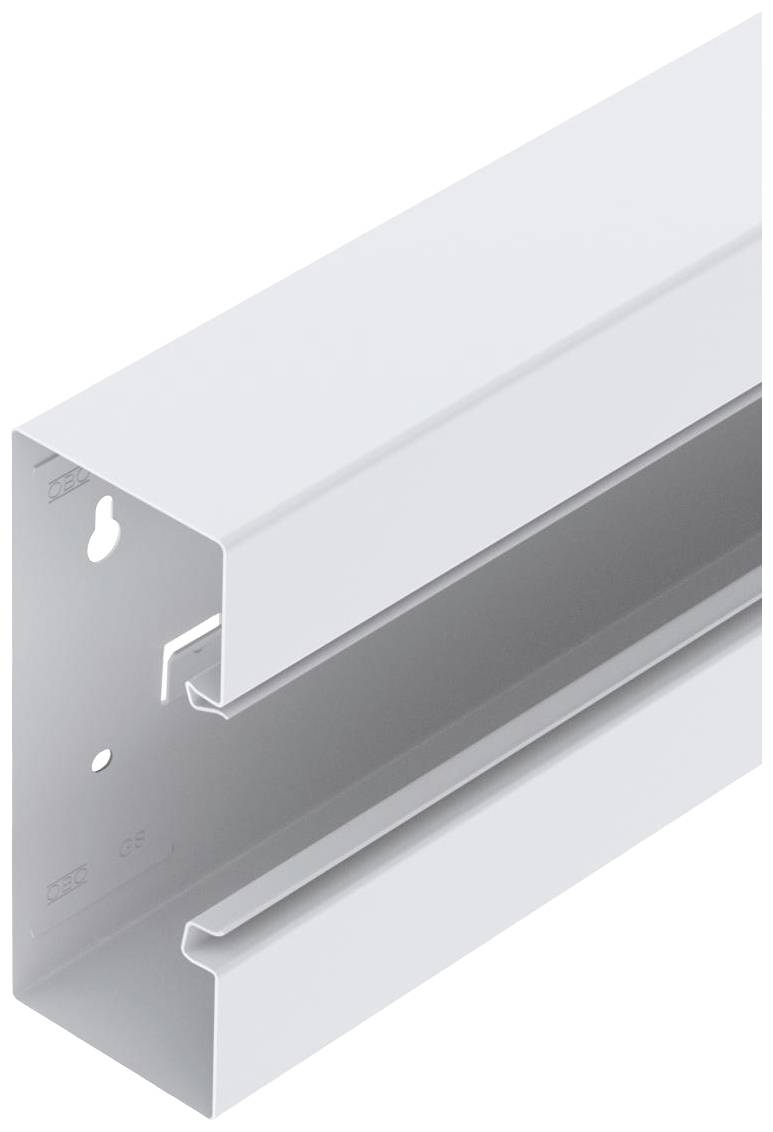

OBO Bettermann 6277600 Internal wiring ducts (L x W) 2000 mm x 170 mm 1 pc(s) Pure white
EAN:
Part number:
Item no:
Technical specifications

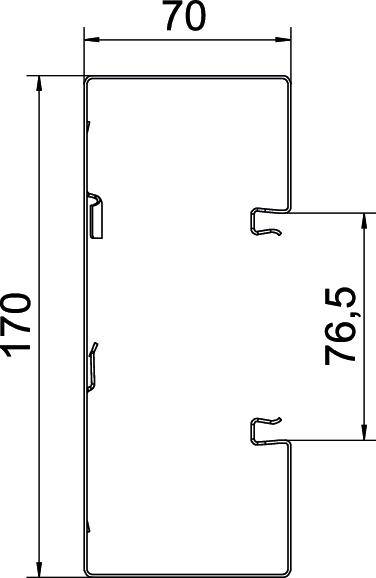

- Width = 170 mm
- Depth = 70 mm
- Length = 2000 mm
- Number of upper parts = 1
- Upper parts supplied = No
- Top width 1 = 76.5 mm
- Top width 2 = 0 mm
- Top width 3 = 0 mm
- Balanced = Yes
- Design rectangular = Yes
- Material = Steel
- Material good = other
- Halogen-free = Yes
- Surface = galvanized and coated
- Color = pure white
- RAL-number = 9010
- Design back panel (inside) = + latches
- With protective film = No
- Number of pluggable dividers = 2
- With channel connector = No
- Mounting holes in the Ground = Yes
- Type of mounting the top parts = inside
- With cable retaining clip = No
- Product type
Internal wiring ducts
- Content
1 pc(s)
- Factory colour
Pure white
- Dim
(L x W) 2000 mm x 170 mm
- Length
2000 mm
- Width
170 mm
- Depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965963 OBO Bettermann 6277600 Internal wiring ducts (L x W) 2000 mm x 170 mm 1 pc(s) Pure white
Description
Device mounting brackets for mounting on the wall or mounting brackets. The GS device installation channel has self-control unit end of the locking clip for recording a separating wall made of steel sheet. The equipotential bonding between the channel divide takes place via the coupling. Between the upper and lower sections, the measure of protection and potential compensation by the end of the channel cover patented, self-control unit. The system is real 76.5mm opening
