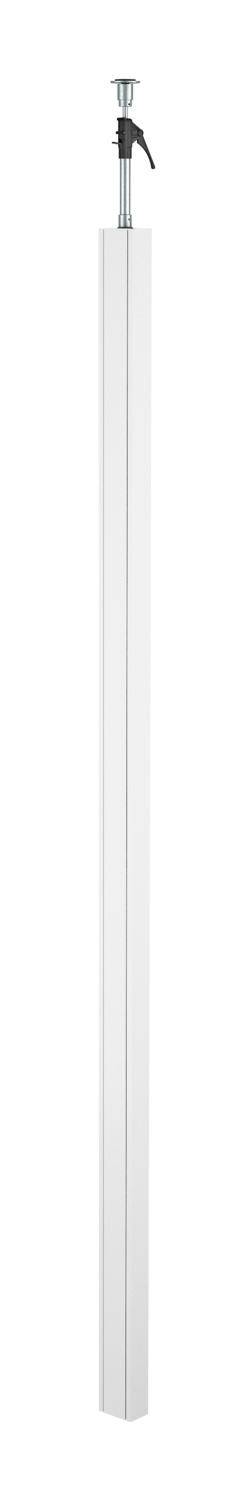

OBO Bettermann 6288940 Distribution column 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Column shape: Rectangular
- Design: One-sided
- Pre-wired: No.
- Adjustable: Yes

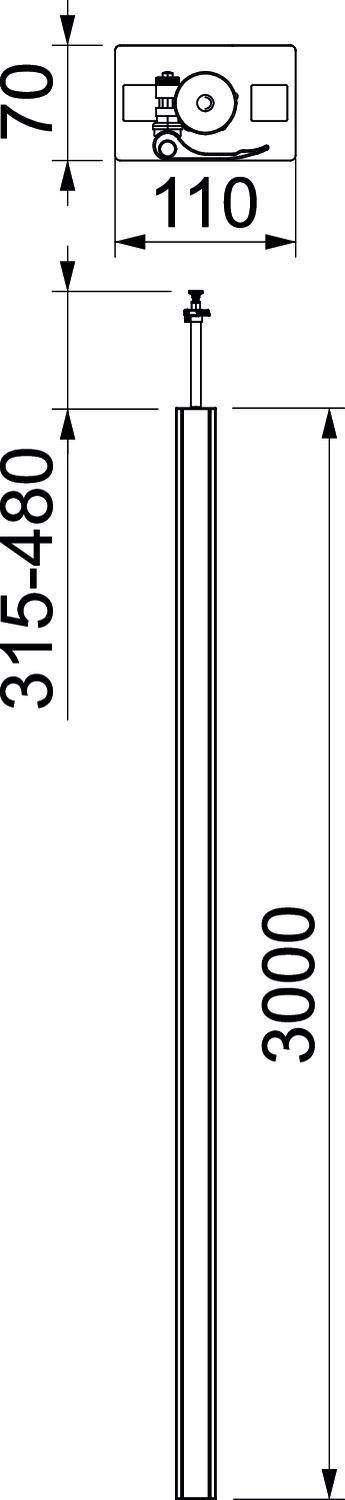

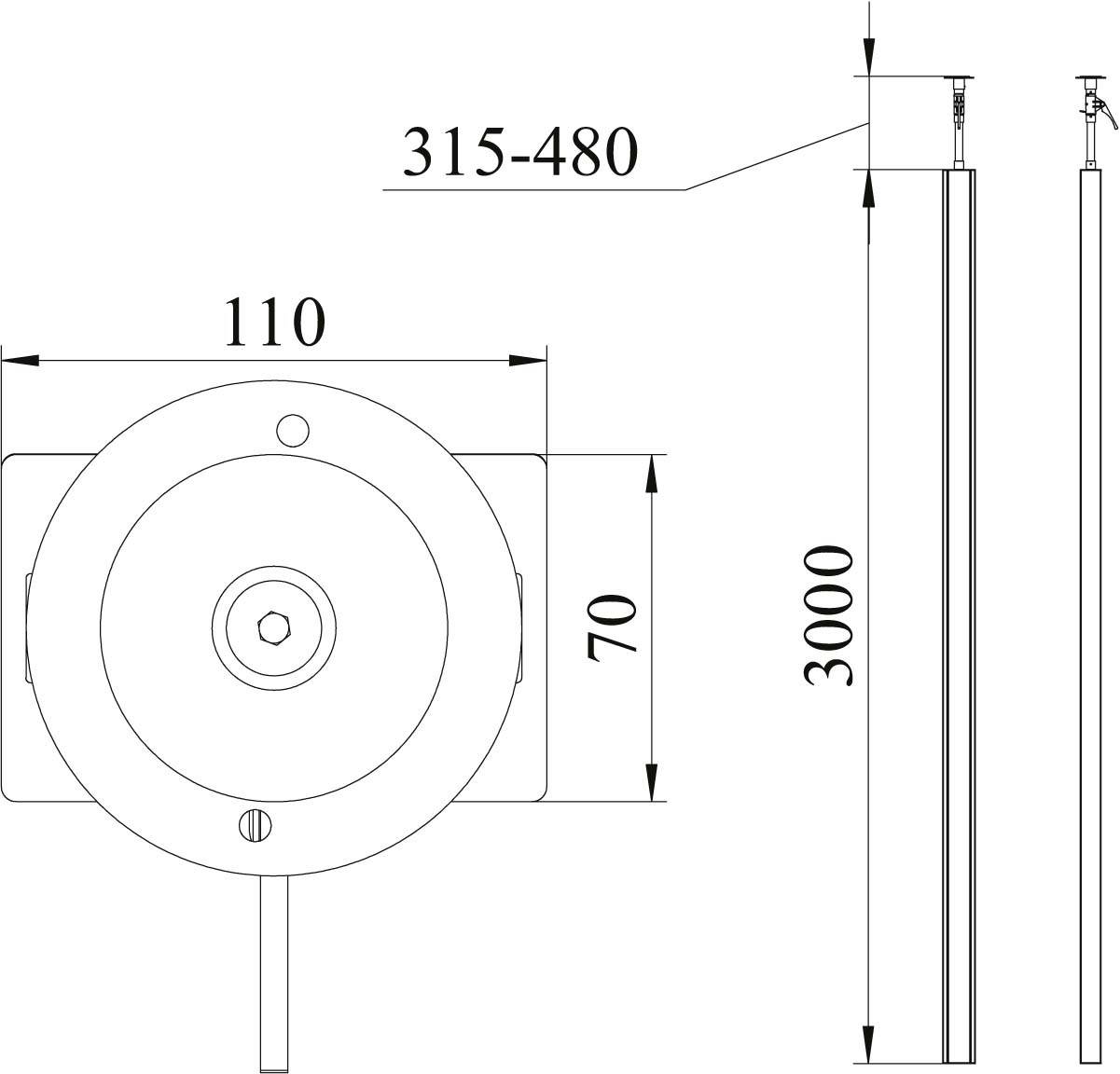

- Height adjustment 480 mm
- Column height 3315..3480 mm
- Column depth 70 mm
- Column width 110 mm
- Number of upper parts to be used: 1
- Upper section width 76.5 mm
- Mounting type: Clamp
- Locally variable: No.
- Suitable for ceiling mounting: Yes
- Suitable for floor mounting: Yes
- Cable entry: On top
- End-to-end profile: Yes
- Material of the installation column: Aluminium
- Material quality Installation column: Other
- Halogen-free material of the installation column: Yes
- Surface protection column: Other
- Colour of column: White
- RAL number of the column: 9010
- Top material: Aluminium
- Material quality Upper part: Other
- Halogen-free material of the top: Yes
- Upper surface: Anodised and anodized
- Upper part color: White
- RAL number top part: 9010
- Product type
Distribution column
- Component
Device mounting brackets
- Type
single sided
- Content
1 pc(s)
- Factory colour
White
- Dim
(W x D) 110 mm x 70 mm
- Width
110 mm
- Depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159955 OBO Bettermann 6288940 Distribution column 1 pc(s) White
Description
ISS aluminum installation column with a 76.5 mm system opening.
Set includes:
1 single-section column with clamping mounting
Total length 3315 mm - 3480 mm
1 Ceiling mounting with clamping device
1 upper section aluminum
Length: 3000 mm
The installation column is for mounting device panel-mounted sockets that snap into place
The 71GD series... suitable. Optional installation of a type GA-TW70 partition (6279711)
And the mounting of a type KL80A top bracket (6288640) is possible.
The installation column is pre-assembled and ready for immediate use. The following accessories can be used depending on the installation situation.
