OBO Bettermann 6289040 Distribution column 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Column shape: Other
- Design: One-sided
- Pre-wired: No.
- Adjustable: Yes
- Height adjustment 1500 mm
- Column height 2300..3800 mm
- Column depth 110 mm
- Column width 100 mm
- Number of upper parts to be used: 1
- Upper section width 76.5 mm
- Mounting type: Base
- Removable location: Yes
- Suitable for ceiling mounting: Yes
- Suitable for floor mounting: Yes
- Cable entry: On top
- Continuous profile: No.
- Material of the installation column: Aluminium
- Material quality Installation column: Other
- Halogen-free material of the installation column: Yes
- Surface protection column: Other
- Colour of column: White
- RAL number of the column: 9010
- Top material: Aluminium
- Halogen-free material of the top: Yes
- Upper part color: White
- RAL number top part: 9010
- Product type
Distribution column
- Component
Device mounting brackets
- Type
single sided
- Content
1 pc(s)
- Factory colour
White
- Dim

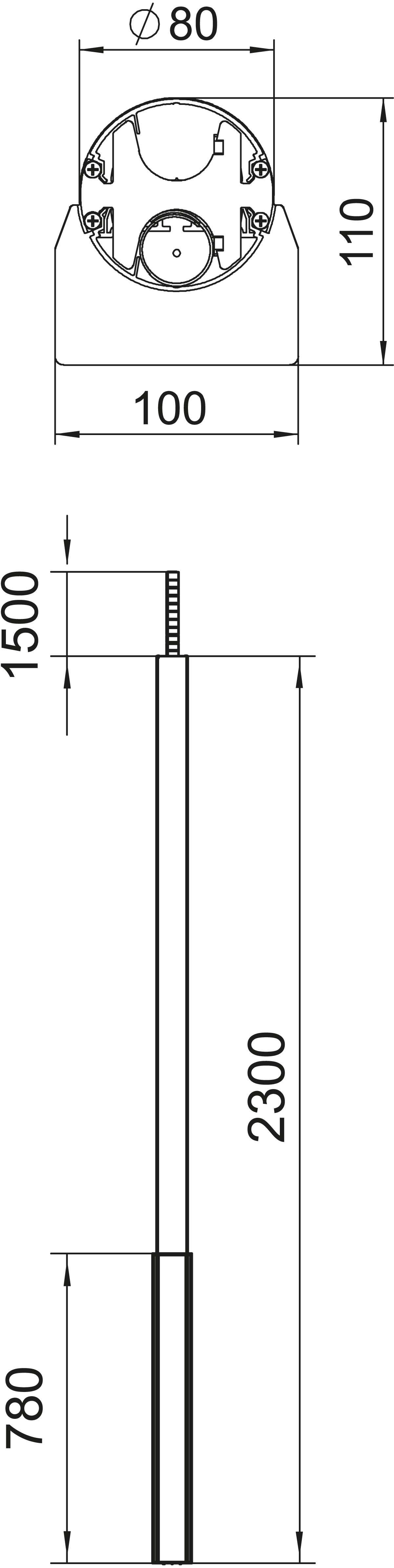

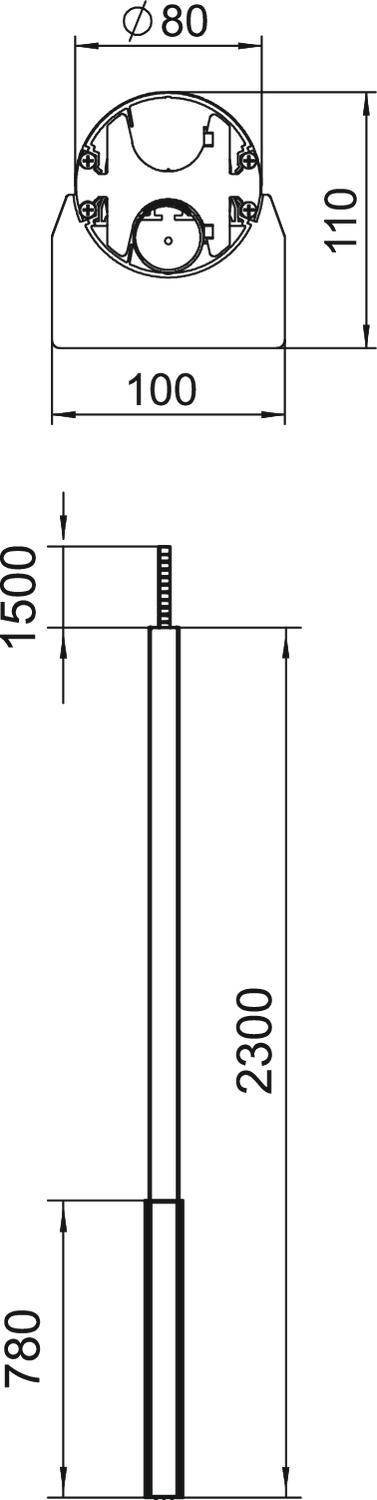

(W x H x D) 100 x 2300 x 110 mm
- Width
100 mm
- Height
2300 mm
- Depth
110 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159965 OBO Bettermann 6289040 Distribution column 1 pc(s) White
Description

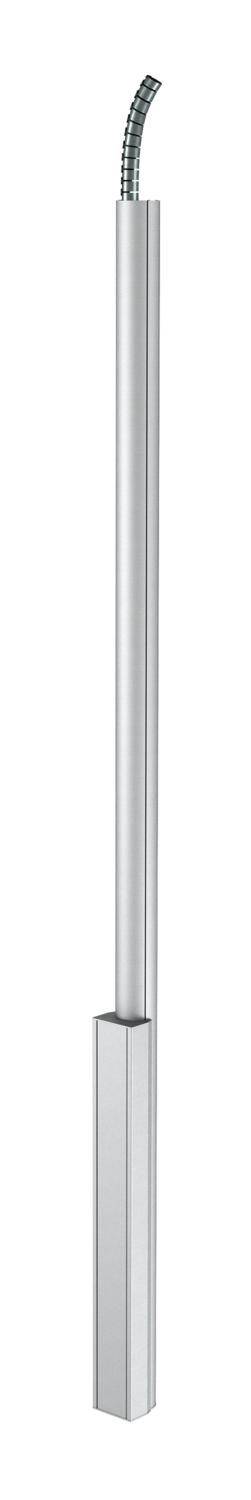

ISS installation column made of aluminum with flexible tube to the ceiling.
Set includes:
1 single-section column with flexible hose to the ceiling
Total length: 2300 mm.
1 flexible hose, length 1500 mm
1 stackable installation area aluminum
Length: 780 mm
The installation column has a 76.5 mm system opening in the area for device installation and is for mounting series 71GD series front-latch device mounted sockets... suitable. The base plate as stand type SFISSF as well as the hose connection to the ceiling type SAISSF must be ordered separately (see following article).
This text is machine translated.
Set includes:
1 single-section column with flexible hose to the ceiling
Total length: 2300 mm.
1 flexible hose, length 1500 mm
1 stackable installation area aluminum
Length: 780 mm
The installation column has a 76.5 mm system opening in the area for device installation and is for mounting series 71GD series front-latch device mounted sockets... suitable. The base plate as stand type SFISSF as well as the hose connection to the ceiling type SAISSF must be ordered separately (see following article).
This text is machine translated.
