OBO Bettermann 6289976 Distribution column 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Column shape: Oval
- Design: Double-sided
- Pre-wired: No.
- Adjustable: Yes

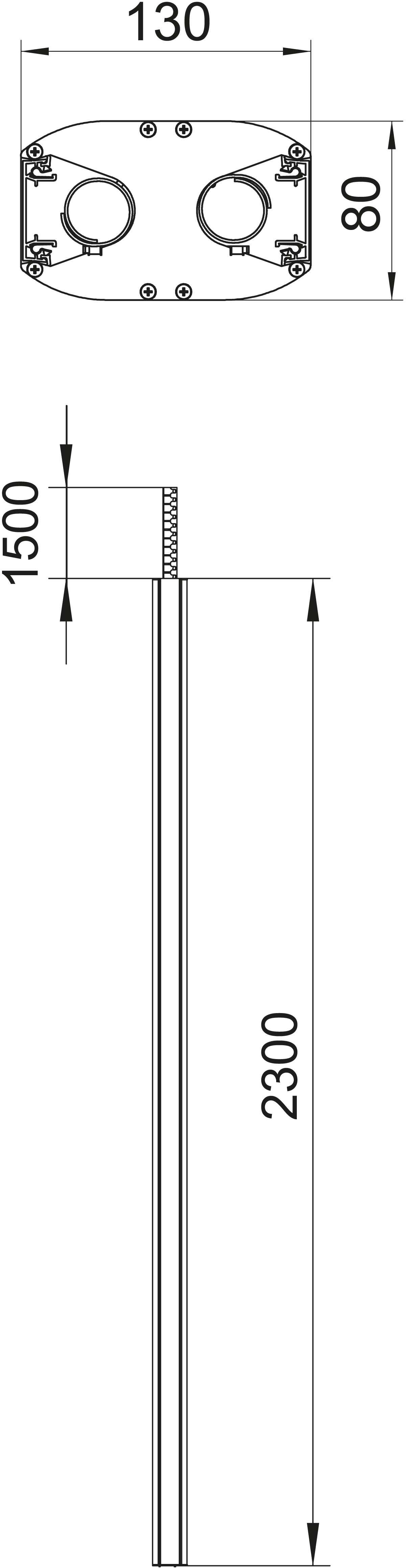

- Height adjustment 1500 mm
- Column height 2300..3800 mm
- Column depth 130 mm
- Column width 80 mm
- Number of upper parts to be used: 2
- Upper section width 45 mm
- Mounting type: Base
- Removable location: Yes
- Suitable for ceiling mounting: Yes
- Suitable for floor mounting: Yes
- Cable entry: On top
- End-to-end profile: Yes
- Material of the installation column: Aluminium
- Material quality Installation column: Other
- Halogen-free material of the installation column: Yes
- Surface protection column: Anodised/anodized
- Colour of column: Other
- Top material: Aluminium
- Halogen-free material of the top: Yes
- Upper surface: Anodised and anodized
- Product type
Distribution column
- Component
Device mounting brackets
- Type
double-sided
- Supplied length
2300 mm
- Content
1 pc(s)
- Dim
(W x D) 80 mm x 130 mm
- Width
80 mm
- Depth
130 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159959 OBO Bettermann 6289976 Distribution column 1 pc(s)
Description

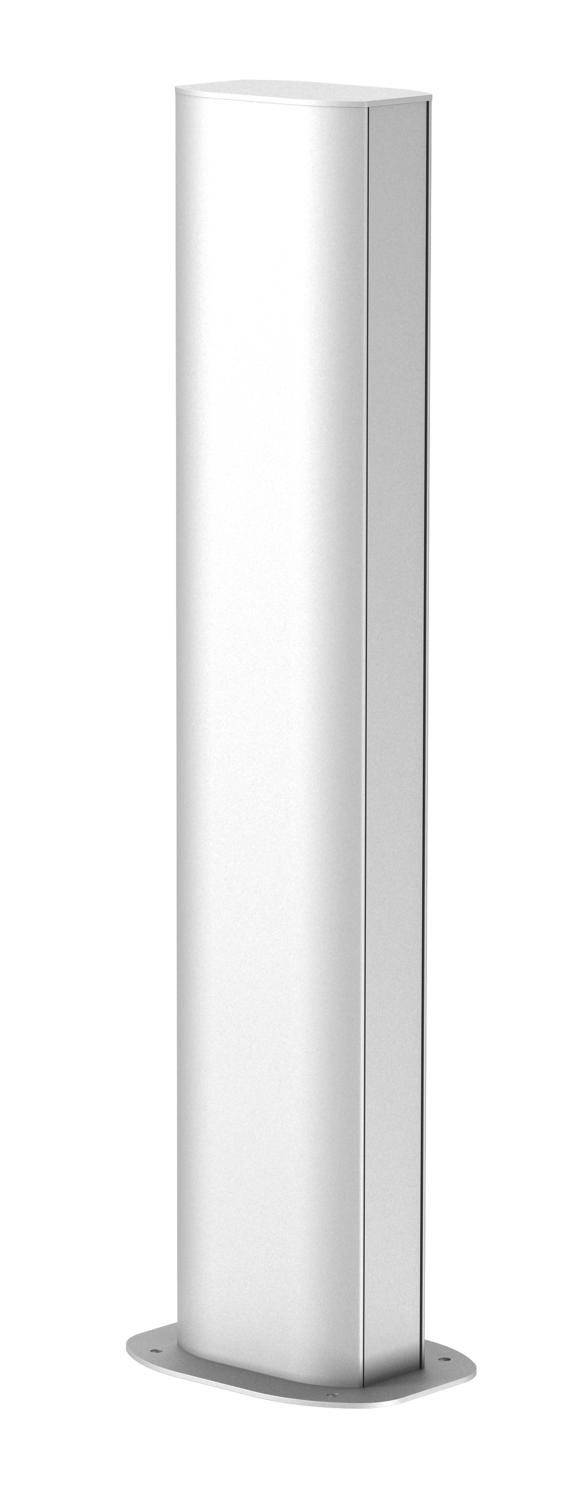

ISS installation column made of aluminum with a 45 mm system opening.
Set includes:
1 two-section column with 2 flexible hoses to the ceiling
Overall length of aluminum profile 2300 mm
2 upper part aluminum length 2300 mm
The colors are either pure white or anodized. Two 45 mm system openings for the direct installation of module 45® mounting devices are located opposite each other. The base plate as stand type SFISSF as well as the hose connection to the ceiling type SAISSF must be ordered separately (see following article).
This text is machine translated.
Set includes:
1 two-section column with 2 flexible hoses to the ceiling
Overall length of aluminum profile 2300 mm
2 upper part aluminum length 2300 mm
The colors are either pure white or anodized. Two 45 mm system openings for the direct installation of module 45® mounting devices are located opposite each other. The base plate as stand type SFISSF as well as the hose connection to the ceiling type SAISSF must be ordered separately (see following article).
This text is machine translated.
