OBO Bettermann 6290010 Distribution column 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Column shape: Oval
- Design: One-sided
- Pre-wired: No.
- Adjustable: Yes

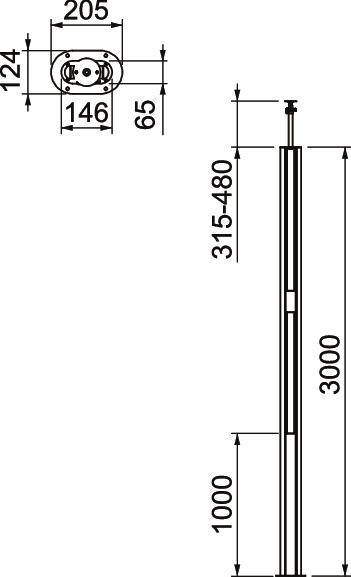

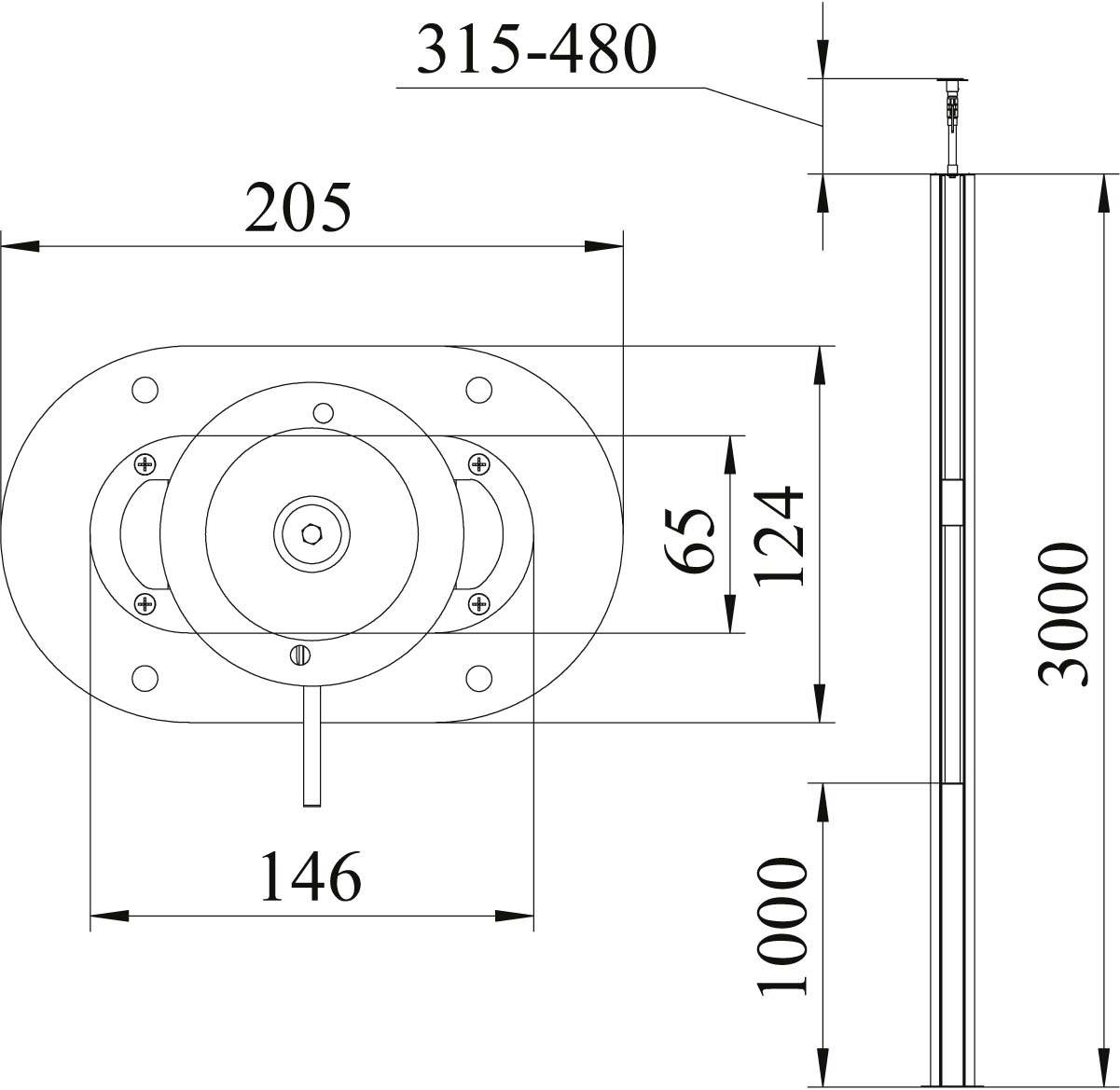

- Height adjustment 480 mm
- Column height 3315..3480 mm
- Column depth 65 mm
- Column width 146 mm
- Number of upper parts to be used: 1
- Upper section width 76.5 mm
- Mounting type: Clamp
- Locally variable: No.
- Suitable for ceiling mounting: Yes
- Suitable for floor mounting: Yes
- Cable entry: On top
- Continuous profile: No.
- Material of the installation column: Aluminium
- Material quality Installation column: Other
- Halogen-free material of the installation column: Yes
- Surface protection column: Other
- Colour of column: White
- RAL number of the column: 9010
- Top material: Aluminium
- Halogen-free material of the top: Yes
- Upper part color: White
- RAL number top part: 9010
- Product type
Distribution column
- Component
Device mounting brackets
- Type
single sided
- Content
1 pc(s)
- Factory colour
White
- Dim
(W x D) 146 mm x 65 mm
- Width
146 mm
- Depth
65 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159962 OBO Bettermann 6290010 Distribution column 1 pc(s) White
Description

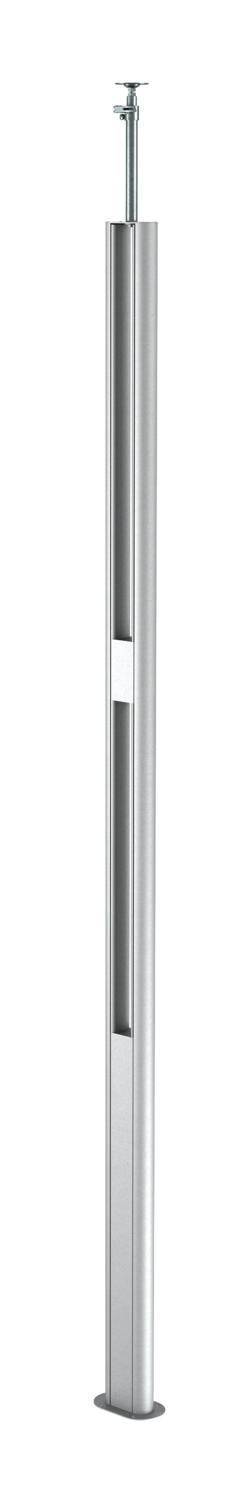

ISS twin aluminum installation column with a 76.5 mm system opening.
Set includes:
1 single-section column with clamping mounting
Total length 3315 mm - 3480 mm
1 lighting attachments
1 Ceiling mounting with clamping device
1 channel installation profile
Length: 1000 mm
1 upper section aluminum
Length: 1000 mm
1 Floor plate ISSBP70140
The range for mounting devices is to hold snap-in
71GD series device installation sockets... suitable. The plateau for securing lights is mounted at a height of 1850 mm and has an individual height of 148 mm. Here, different solutions for workplace or general room lighting can be realized with standard wall holders of the lamp manufacturer.
The installation column is pre-assembled and ready for immediate use. The following accessories can be used depending on the installation situation.
This text is machine translated.
Set includes:
1 single-section column with clamping mounting
Total length 3315 mm - 3480 mm
1 lighting attachments
1 Ceiling mounting with clamping device
1 channel installation profile
Length: 1000 mm
1 upper section aluminum
Length: 1000 mm
1 Floor plate ISSBP70140
The range for mounting devices is to hold snap-in
71GD series device installation sockets... suitable. The plateau for securing lights is mounted at a height of 1850 mm and has an individual height of 148 mm. Here, different solutions for workplace or general room lighting can be realized with standard wall holders of the lamp manufacturer.
The installation column is pre-assembled and ready for immediate use. The following accessories can be used depending on the installation situation.
This text is machine translated.
