OBO Bettermann 6290406 Distribution column 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Column shape: Square
- Design: Double-sided
- Pre-wired: No.
- Adjustable: No.
- Column height 6000 mm
- Column depth 160 mm
- Column width 160 mm
- Number of upper parts to be used: 2
- Upper section width 76.5 mm
- Mounting type: Mounting flange
- Locally variable: No.
- Suitable for ceiling mounting: Yes
- Suitable for floor mounting: Yes
- Cable entry: On top
- End-to-end profile: Yes
- Material of the installation column: Aluminium
- Material quality Installation column: Other
- Halogen-free material of the installation column: Yes
- Surface protection column: Anodised/anodized
- Colour of column: Other
- Top material: Aluminium
- Halogen-free material of the top: Yes
- Upper surface: Anodised and anodized
- Product type
Distribution column
- Type
double-sided
- Supplied length
6000 mm
- Content
1 pc(s)
- Dim
(W x H x D) 160 x 6000 x 160 mm
- Width
160 mm
- Height
6000 mm
- Depth
160 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162449 OBO Bettermann 6290406 Distribution column 1 pc(s)
Description

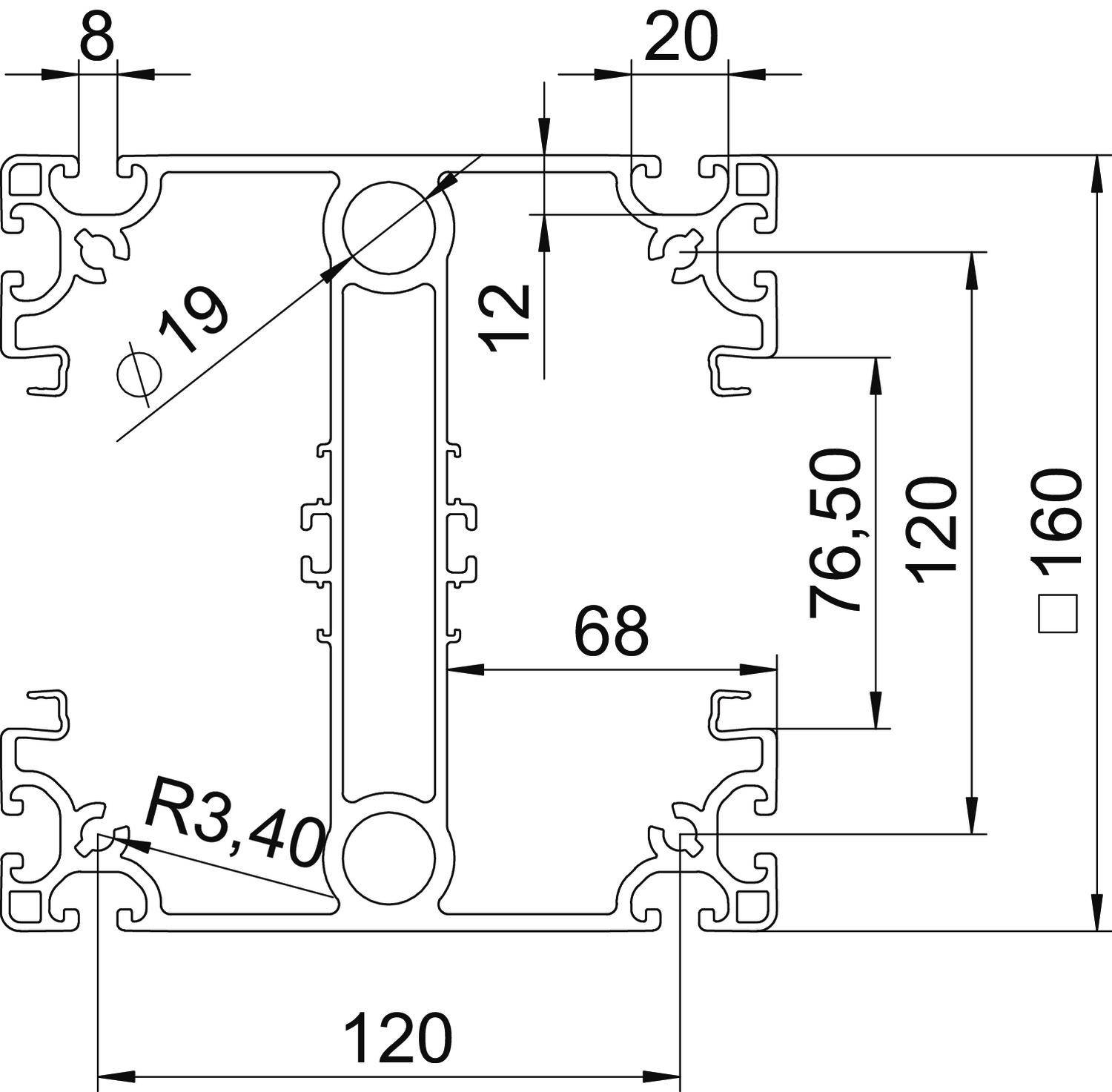

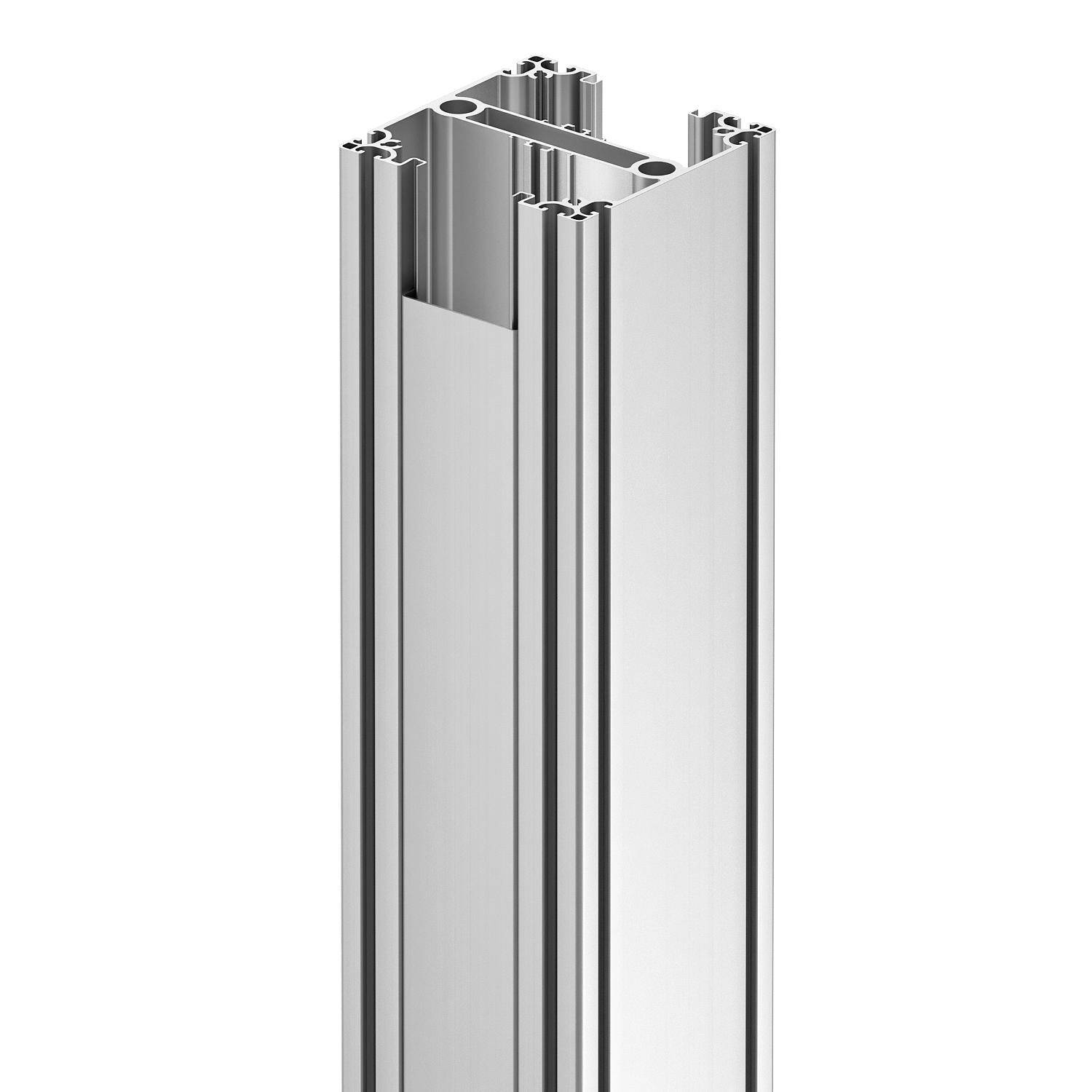

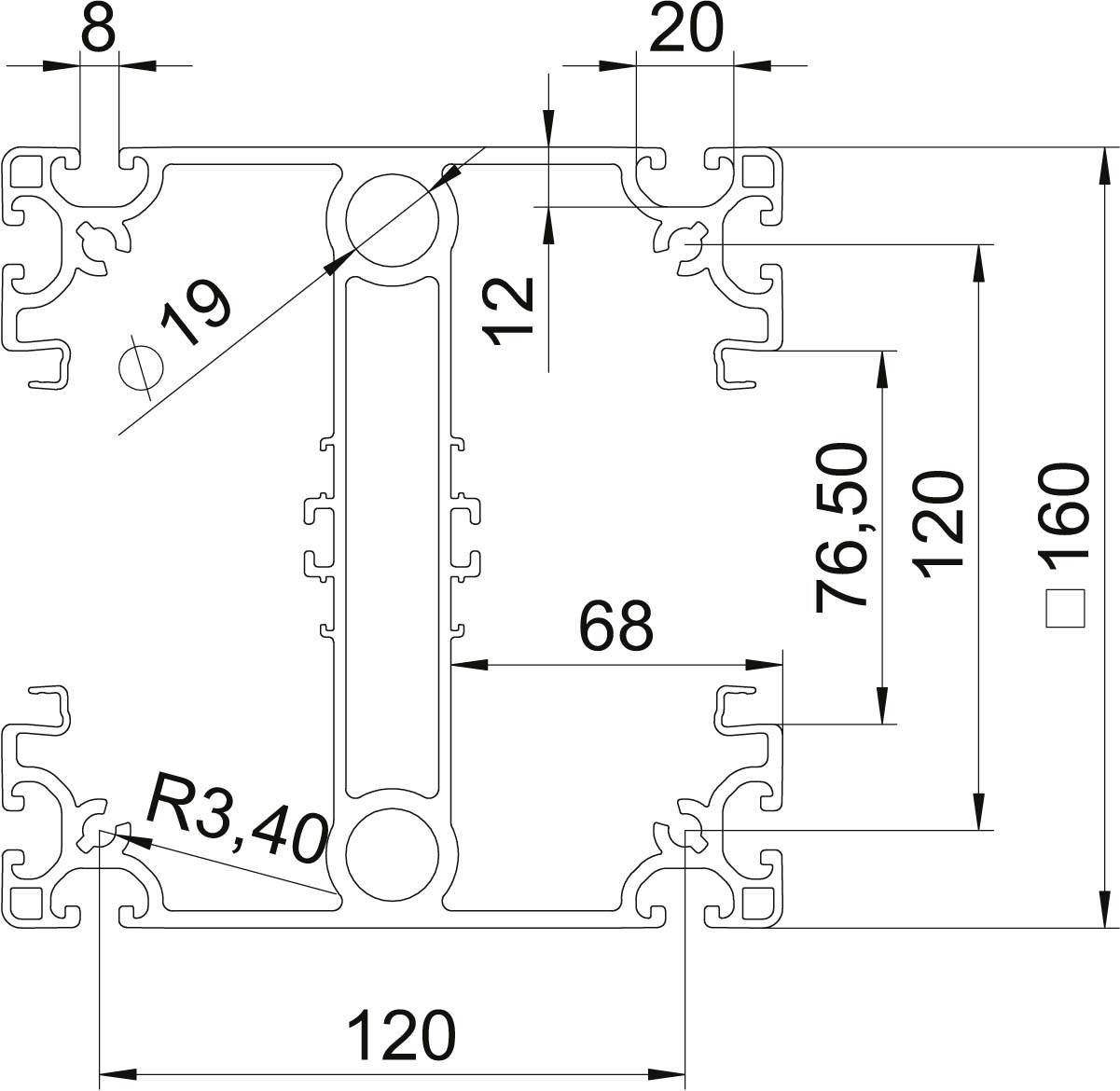

ISS installation column for equipment of mounting workstations in production plants. The anodized aluminum profile in heavy design has a 2-sided opposite side 76.5 mm system opening for accommodating the series 71GD series mounting boxes or the 71MT series mounting brackets. All 4 sides of the profile have an installation groove in standard dimension nominal size 8 for mounting a wide range of additional components (item system kit). It comes with the column profile as well as the required tops for the system openings in 2000 mm lengths and a PE bag with 20 additional locking clips type RKV3V, in order to allow partial lengths of the upper parts. Two closed channels inside the profile can be used as an option for guiding compressed air.
