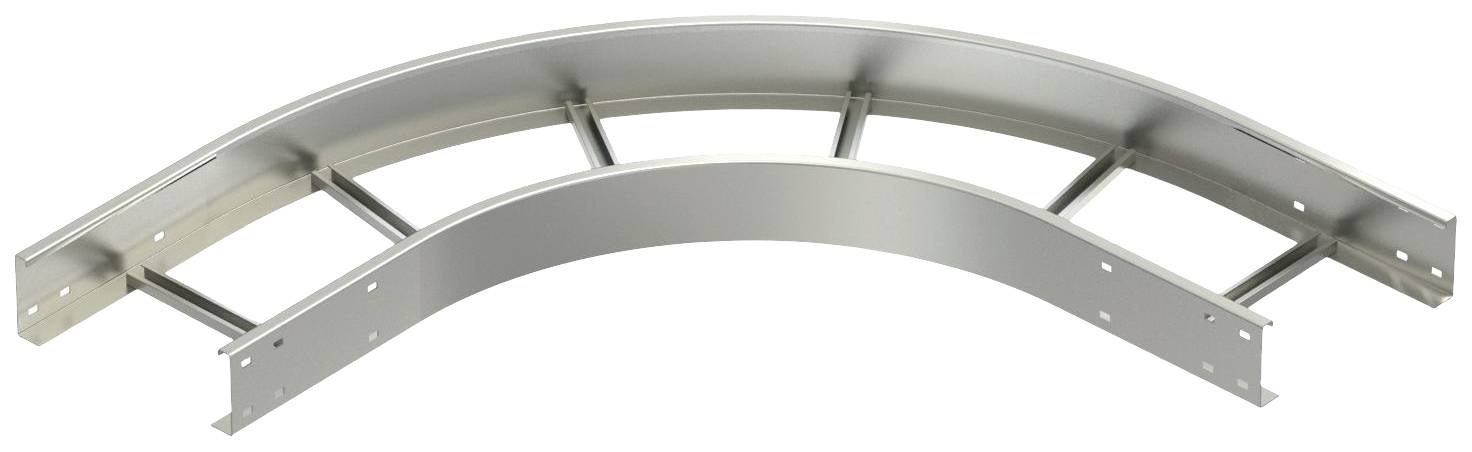

Galvanised metal arch support, with cross-bars, used in construction for structural support.

Galvanised metal arch support, with cross-bars, used in construction for structural support.

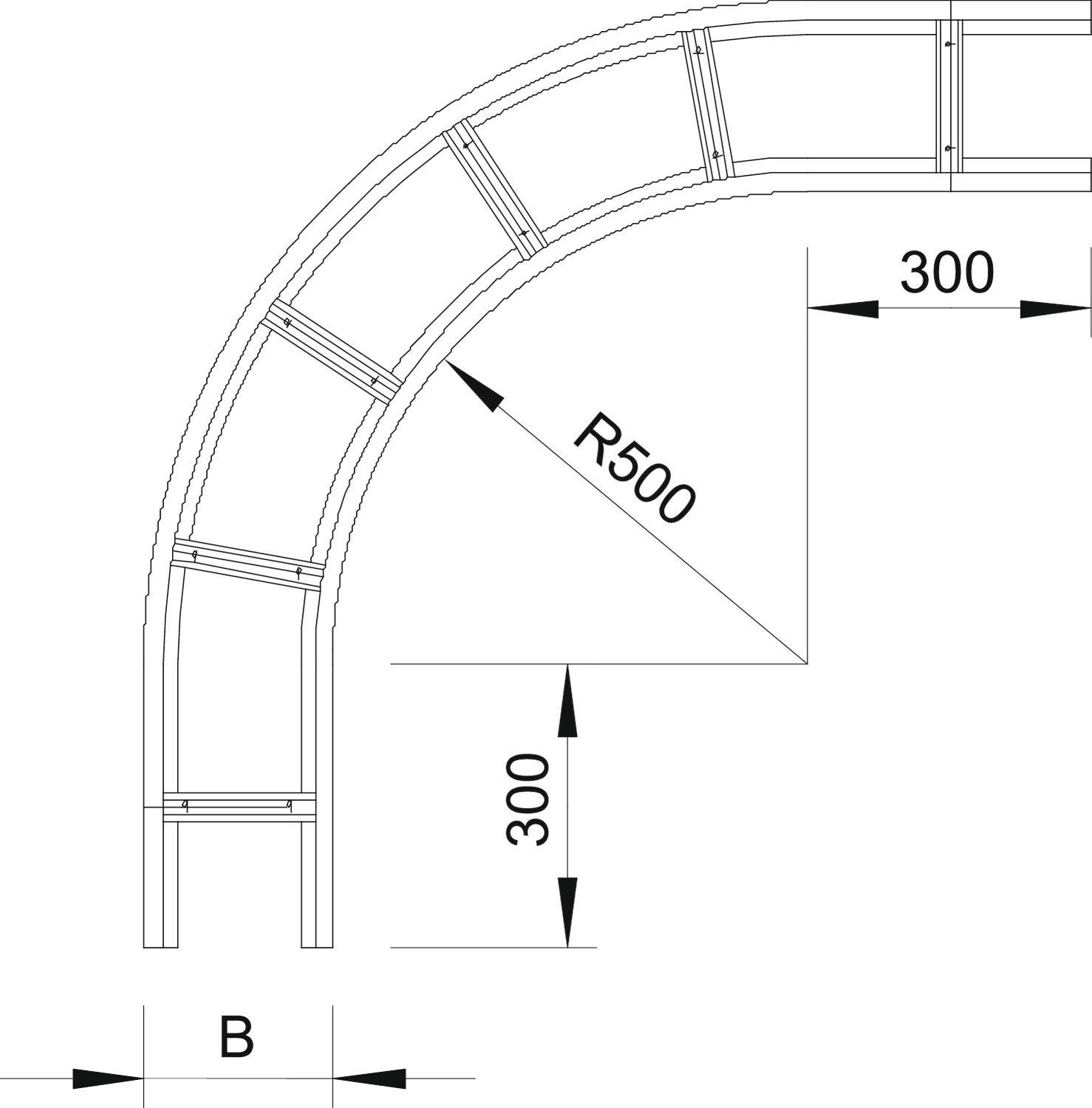

Technical drawing of a curved beam with a radius of 500 mm, a width of 300 mm and dashed lines for supports.

1/2

OBO Bettermann

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Turn (angle): 90°
Inner radius 500 mm
Cable conductor width 500 mm
Cable conductor height 110 mm
Direction change: Horizontal
Side holes: no.
Wide-span design: Yes
Material quality: rust and acid-resistant steel

Product type: Bend

Type: Design of the rung: Profile unperforated

Content: 1 pc(s)

Dim: (W x H) 500 mm x 110 mm

Width: 500 mm

Height: 110 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 2292680 OBO Bettermann 6312556 Bend 1 pc(s)

Description

Molded part arc 90° horizontal for all wide-span cable strips with a side height of 110 mm.

This text is machine translated.
