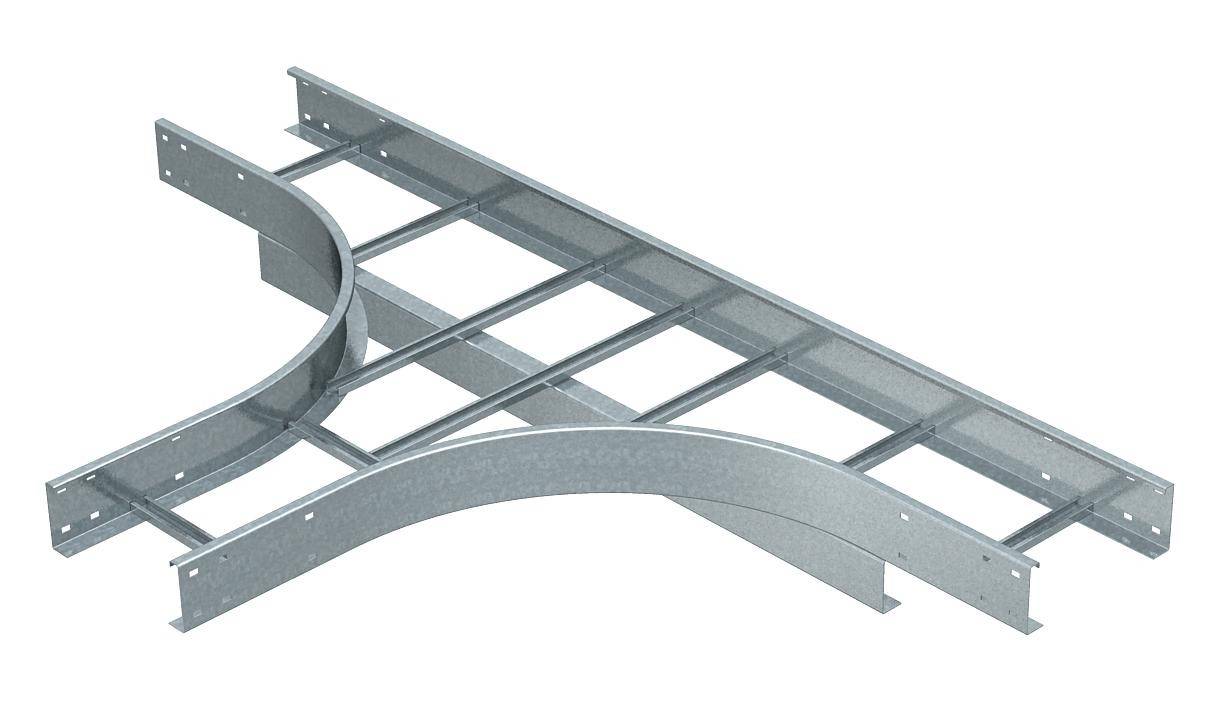

Metallic cable support system in the form of a 45-degree curve for cable management.

Metallic cable support system in the form of a 45-degree curve for cable management.

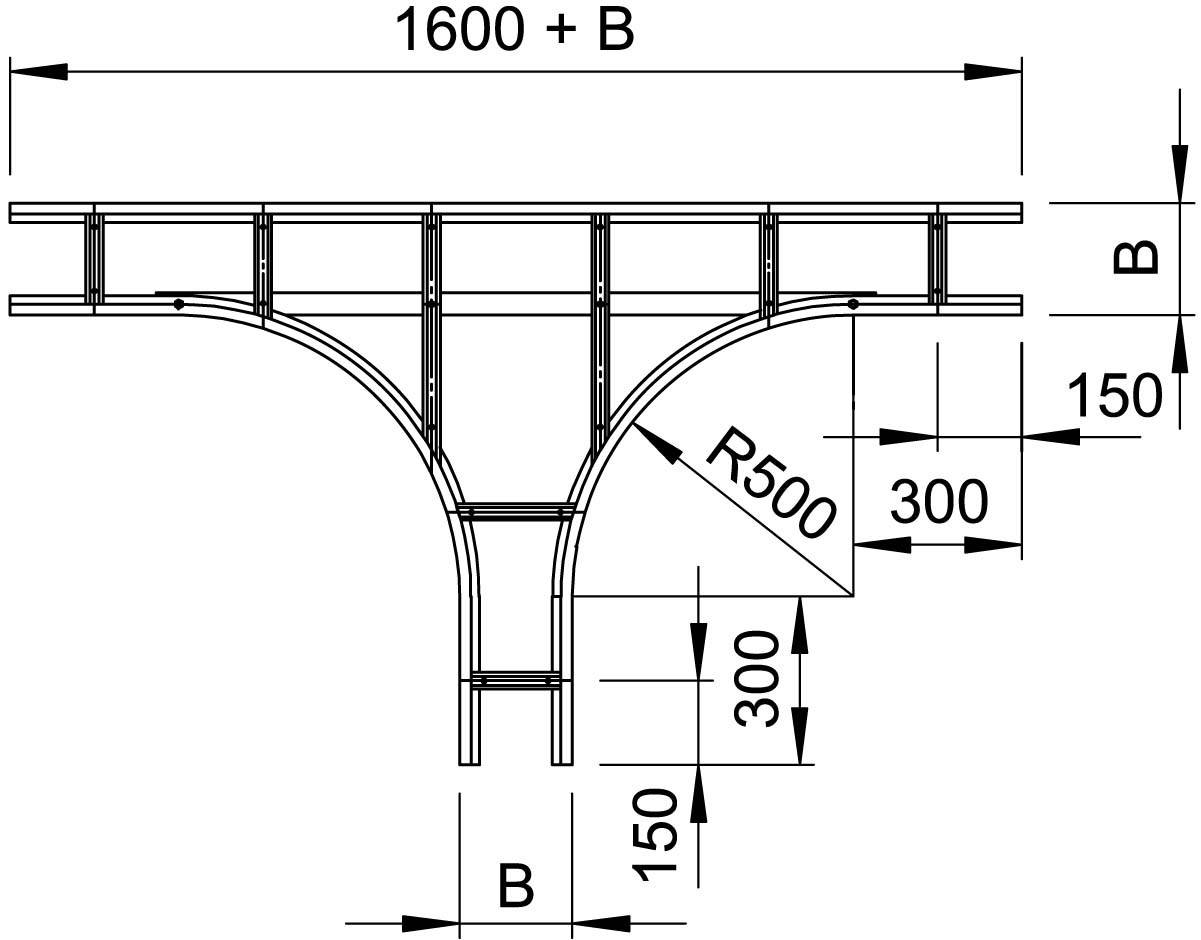

Technical drawing of a T-structure. Total length: 1600 + B, arcs with R500. Height specifications: 150 top, 300 bottom. Width B.

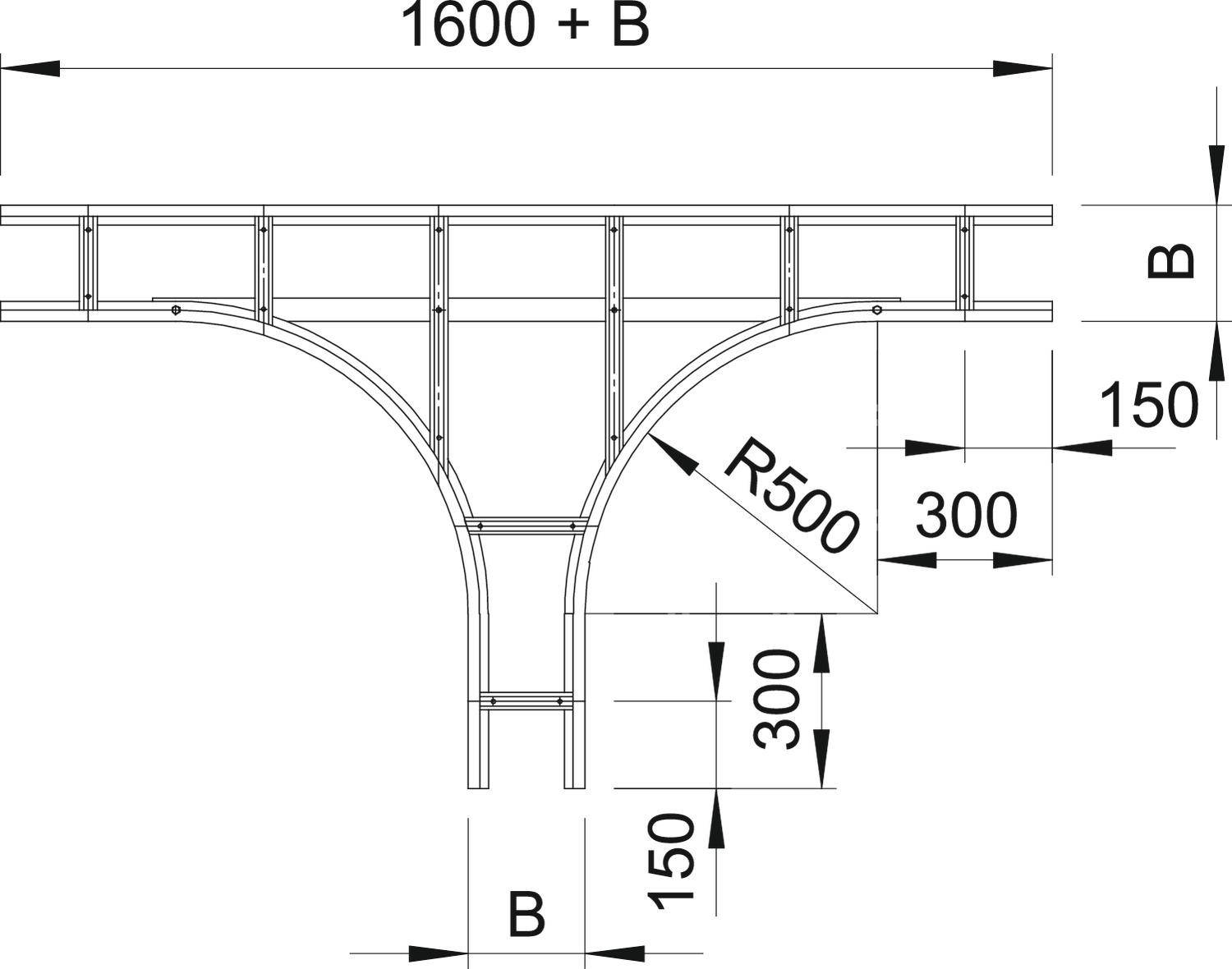

Technical drawing of a carrier system with dimensions: '1600 + B', 'R500', '300', and '150'. Shows bends and supports.

1/3

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Side arm design: Flat profile
Execution of rung: Profile unperforated
Cable length 110 mm
Cable conductor width 500 mm
Symmetric version: Yes
Inner radius 500 mm
Wide-range version: Yes
Suitable for functional preservation: No.
Material: Stainless steel
Material quality: Stainless steel 316 Ti (1.4571)
Surface protection: Other

Product type: T piece

Component: T-piece

Content: 1 pc(s)

Dim: (W x H) 500 mm x 110 mm

Width: 500 mm

Height: 110 mm

Material (details): stainless steel

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3160956 OBO Bettermann 6312821 T piece 1 pc(s)

Description

T-piece, horizontal, for all wide-range cable conductors with side height of 110 mm.
