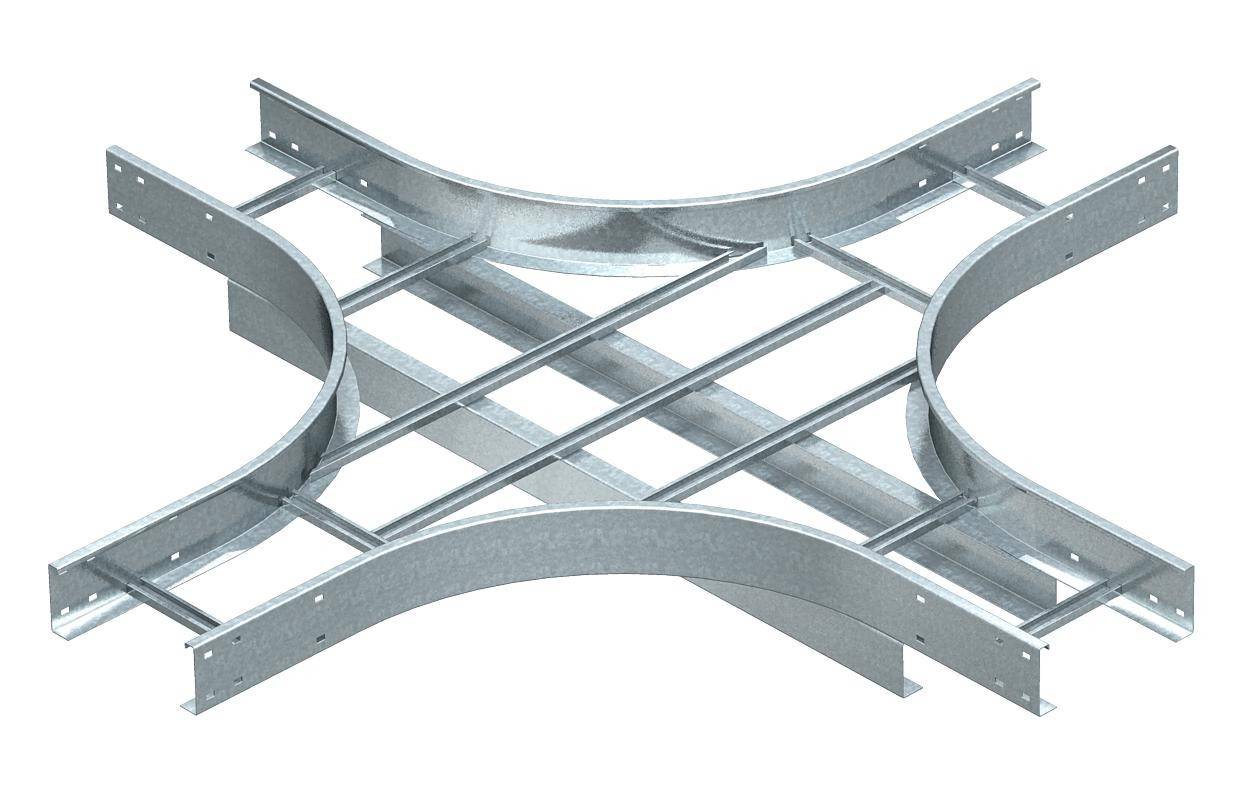

Metallic cable trunking cross piece, showing a robust construction made of galvanised steel with four connection points for cable connections.

Metallic cable trunking cross piece, showing a robust construction made of galvanised steel with four connection points for cable connections.

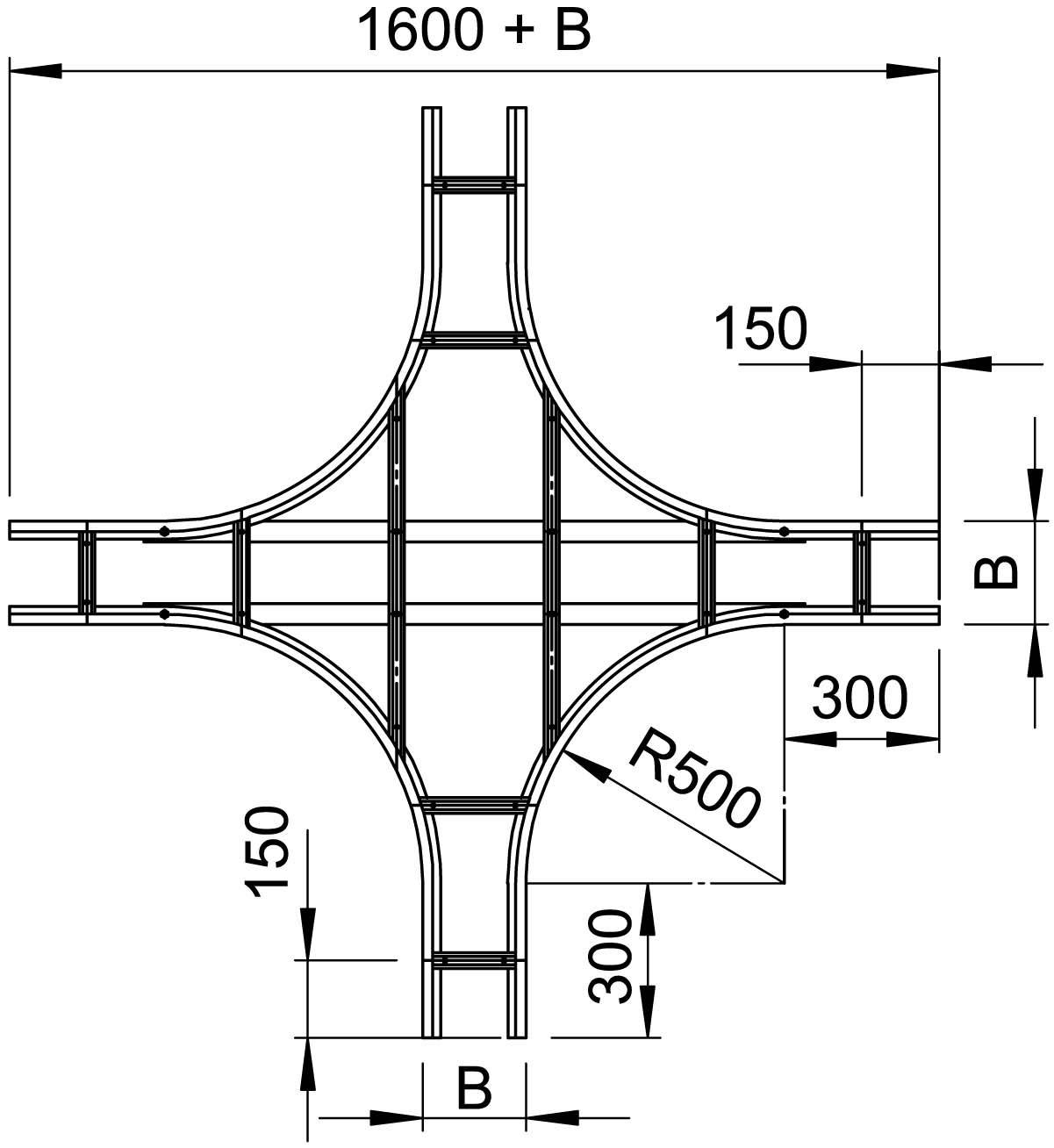

Technical drawing of a crossing element with dimensions and radii. Dimensions: 1600 + B width, R500 radius, 150 and 300 distances.

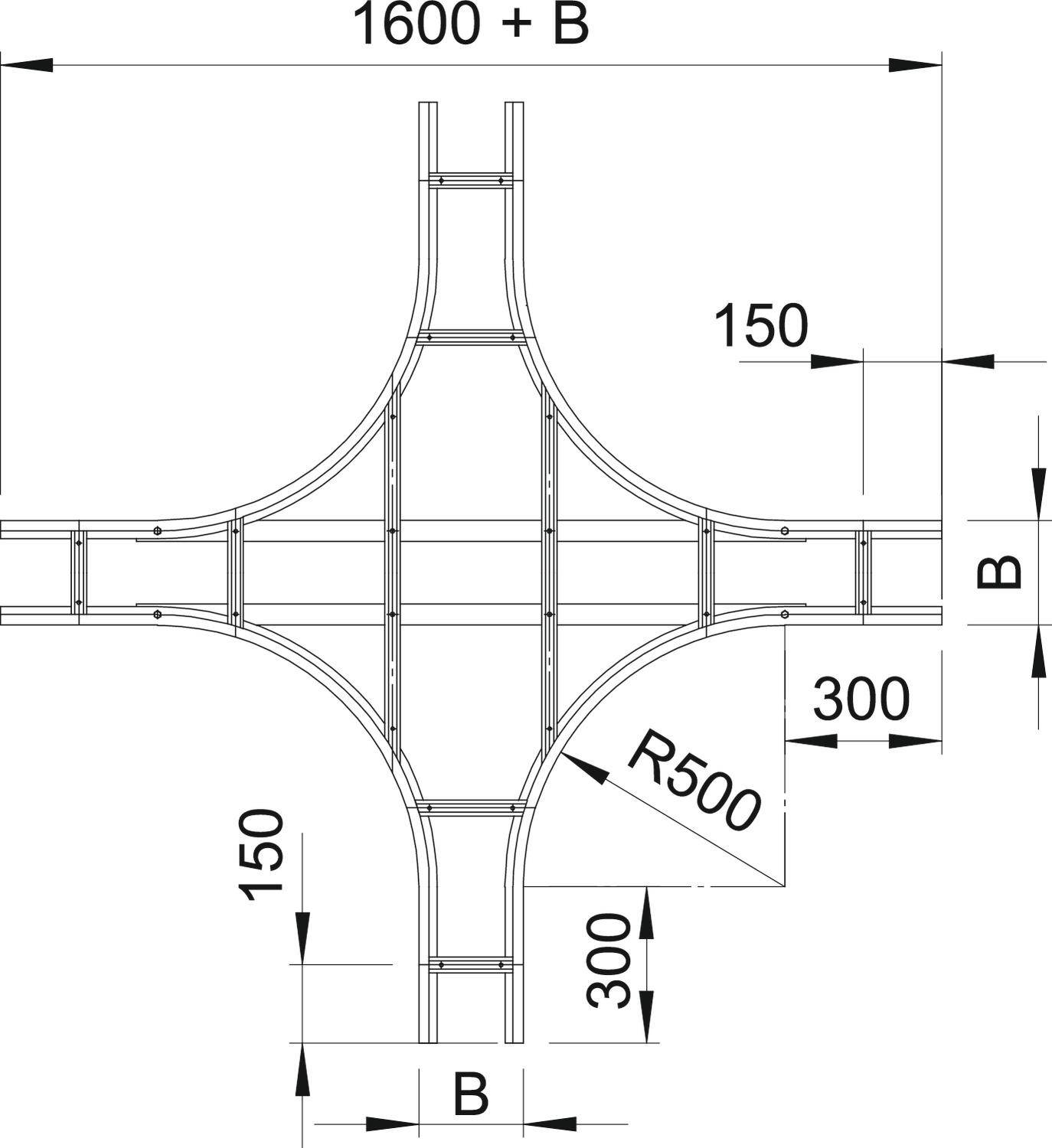

Technical drawing of a four-armed steel construction with dimensions: horizontal length 1600 + B, vertical width B, radii R500.

1/3

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Side arm design: Flat profile
Execution of rung: Profile unperforated
Cable length 110 mm
Cable conductor width 200 mm
Inner radius 500 mm
Wide-range version: Yes
Suitable for functional preservation: No.
Material: Steel
Material quality: Other
Surface protection: Hot-dip galvanized
Colour: Other

Product type: X-joint

Content: 1 pc(s)

Dim: (W x H) 200 mm x 110 mm

Width: 200 mm

Height: 110 mm

Material (details): Steel

UKCA: yes

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3162493 OBO Bettermann 6312934 X-joint 1 pc(s)

Description

Crossing, horizontal, for all wide-range cables with side height of 110 mm
