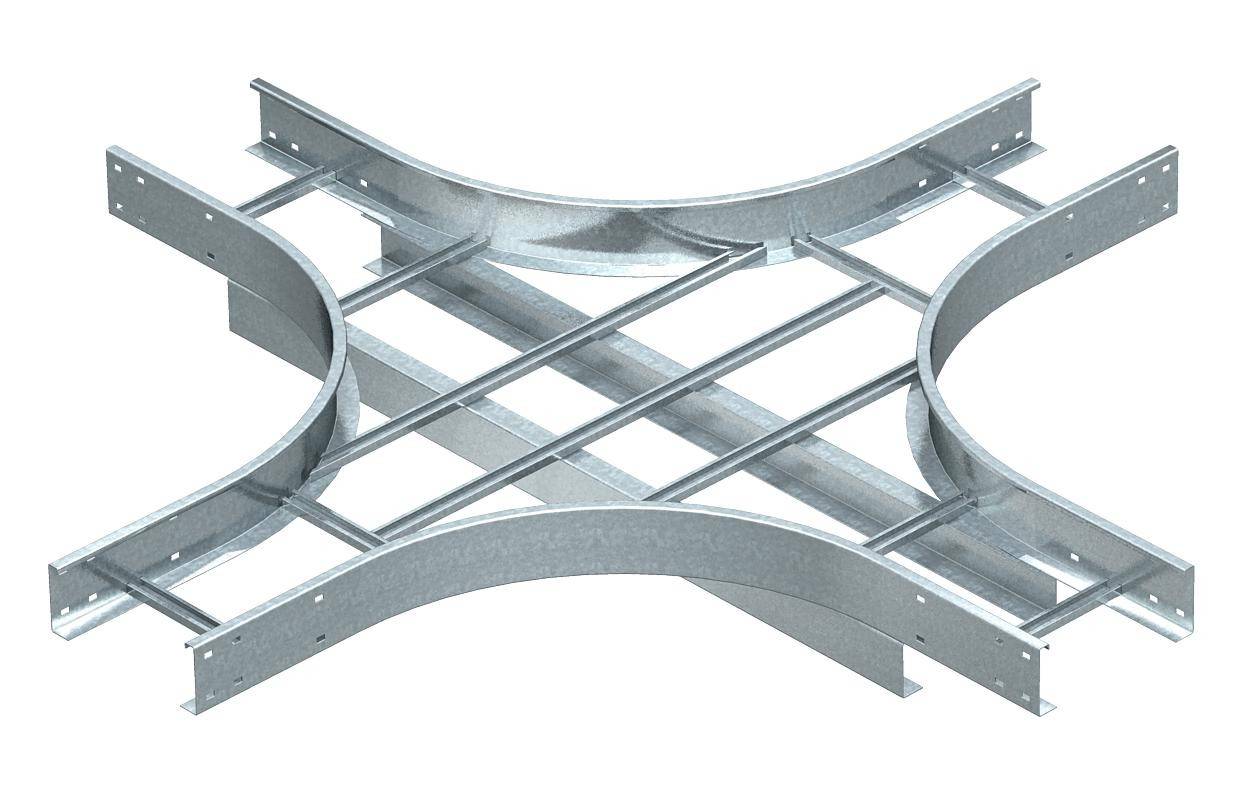

Galvanised metal cable trunking cross piece for connecting and guiding multiple cable routes in four directions.

Galvanised metal cable trunking cross piece for connecting and guiding multiple cable routes in four directions.

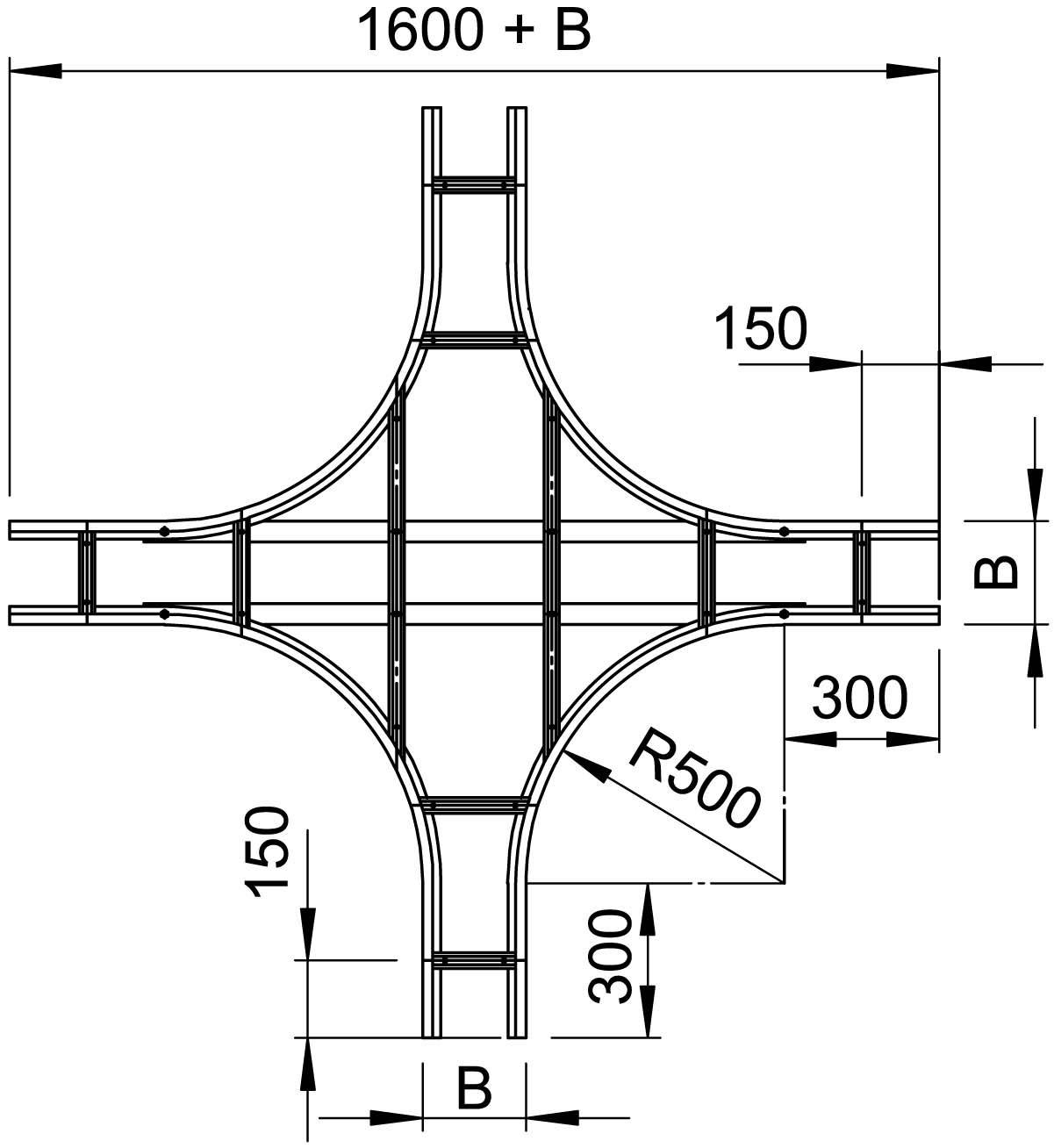

Technical drawing of a crossing piece with dimensional specifications. It depicts pipes with radii of 500, length units of 1600 + B, and tolerances of 150 and 300.

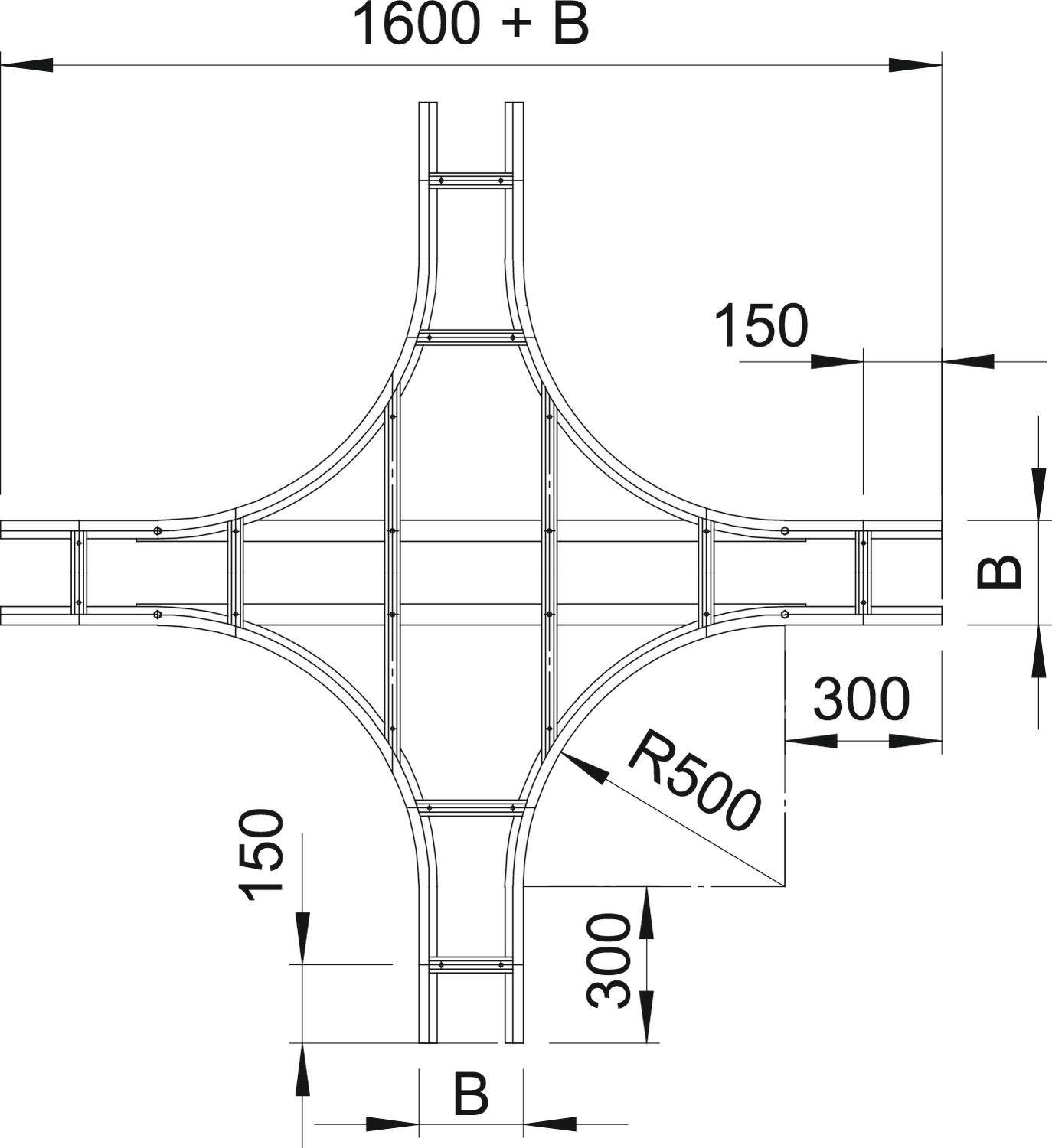

Technical drawing of a crossing piece with dimensions: 1600 + B width, 150 mm and 300 mm spacings, R500 curvature.

1/3

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Side arm design: Flat profile
Execution of rung: Profile unperforated
Cable length 110 mm
Cable conductor width 300 mm
Inner radius 500 mm
Wide-range version: Yes
Suitable for functional preservation: No.
Material: Steel
Material quality: Other
Surface protection: Hot-dip galvanized
Colour: Other

Product type: X-joint

Content: 1 pc(s)

Dim: (W x H) 300 mm x 110 mm

Width: 300 mm

Height: 110 mm

Material (details): Steel

UKCA: yes

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3162495 OBO Bettermann 6312942 X-joint 1 pc(s)

Description

Crossing, horizontal, for all wide-range cables with side height of 110 mm
