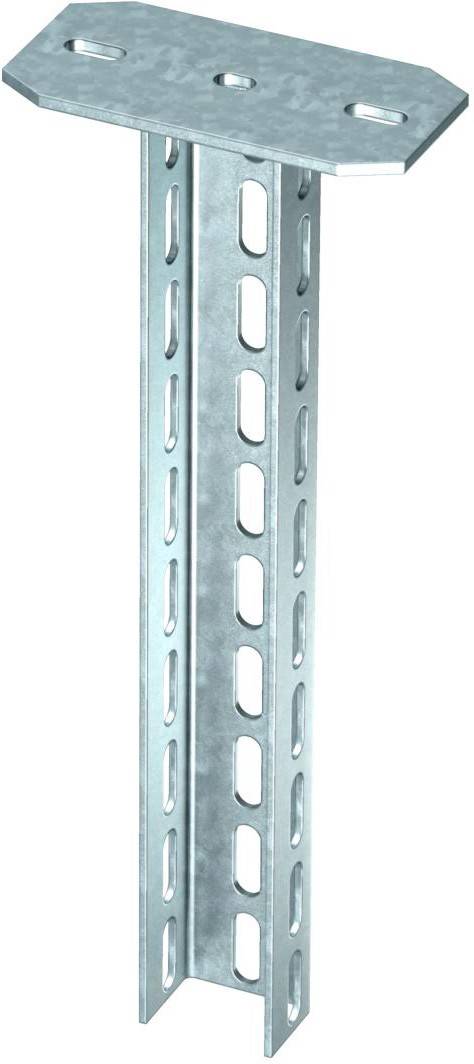

A vertical, galvanised steel support column with a rectangular base, perforated for mounting purposes. Used in construction and assembly applications.

A vertical, galvanised steel support column with a rectangular base, perforated for mounting purposes. Used in construction and assembly applications.

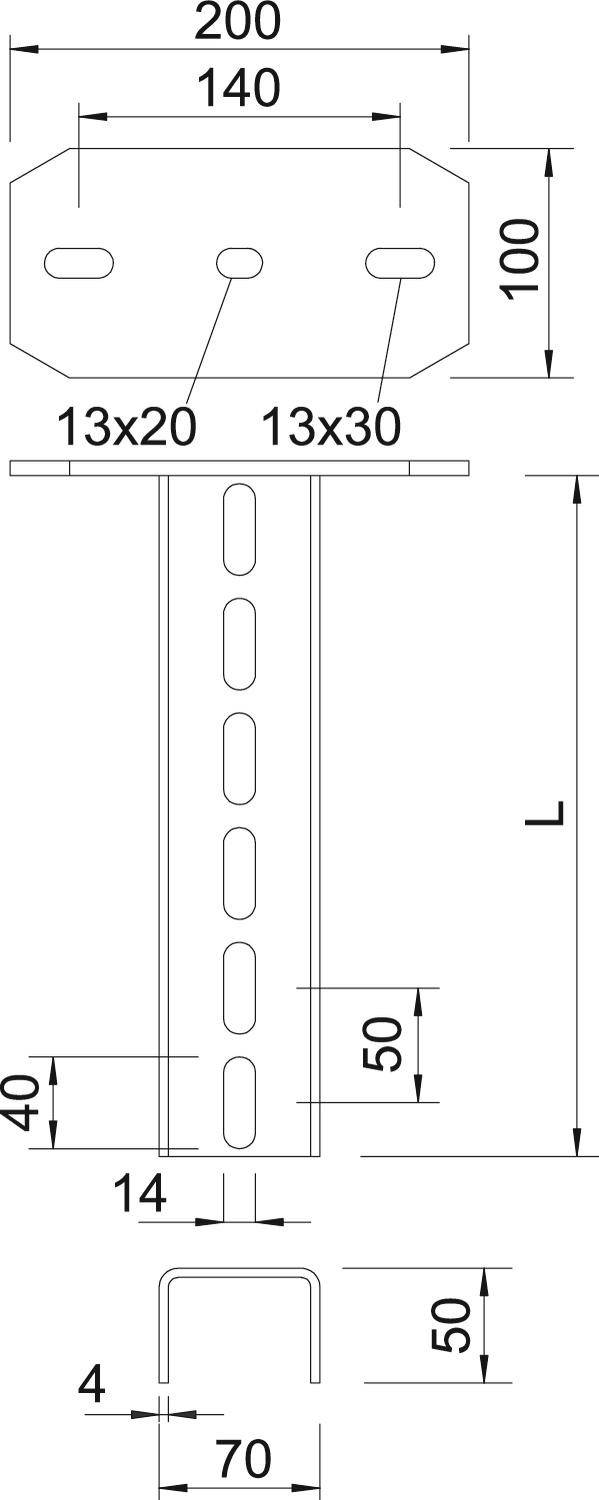

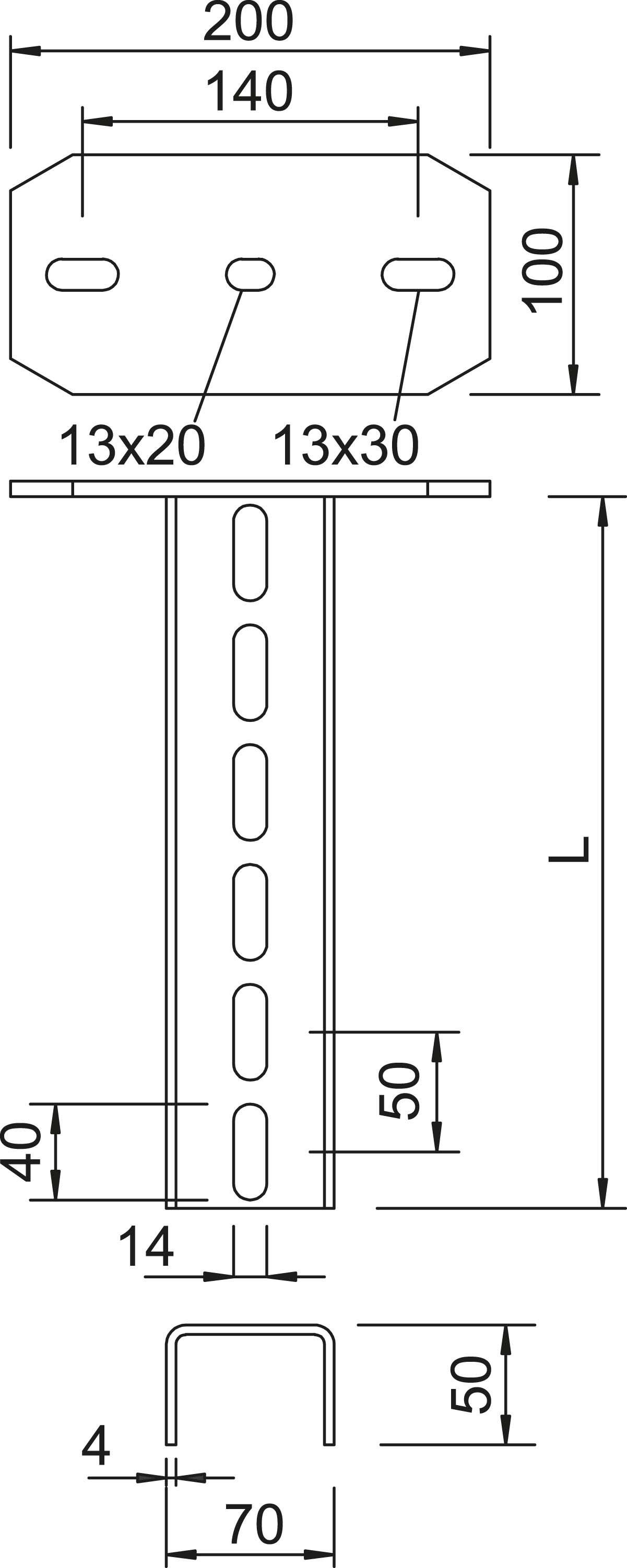

Technical drawing of a metal post with dimensions. Top plate: 140x100 mm, post height 'L', fixing holes: 13x20 mm, 13x30 mm. U-shaped base, width 70 mm, height 50 mm.

1/3

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Length: 3000 mm
Profile width 70 mm
Profile height 50 mm
Design: U-profile
Load capacity 11 kN
Suitable for functional preservation: No.
Material: Steel
Stainless steel, stained: No.
Material quality: Other
Surface protection: Hot-dip galvanized
Weight: 12.65 kg

Product type: Suspension rod

Type: U profile

Supplied length: 3000 mm

Content: 1 pc(s)

Dim: (L x W x H) 3000.00 x 70 x 50 mm

Length: 3000.00 mm

Width: 70 mm

Height: 50 mm

Material (details): Steel

Weight: 12.65 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3162857 OBO Bettermann 6339360 Suspension rod 1 pc(s)

Description

Suspension rod (U-profile) in the dimensions 70 x 50 mm with welded-on head plate.
