OBO Bettermann 6357506 Fasteners (L x W) 116 mm x 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Design = trapezium ceiling bracket (trapezoidal shape)
- Max. Drill diameter in steel = 11 mm
- Material = Steel
- Material good = other
- Surface = galvanised
- Adjustable height = No
- Attachment to the trapezoidal sheet metal with threaded rod = Yes
- With angeschweisster nut = No
- Product type
Fasteners
- Content
1 pc(s)
- Factory colour
Multicolour

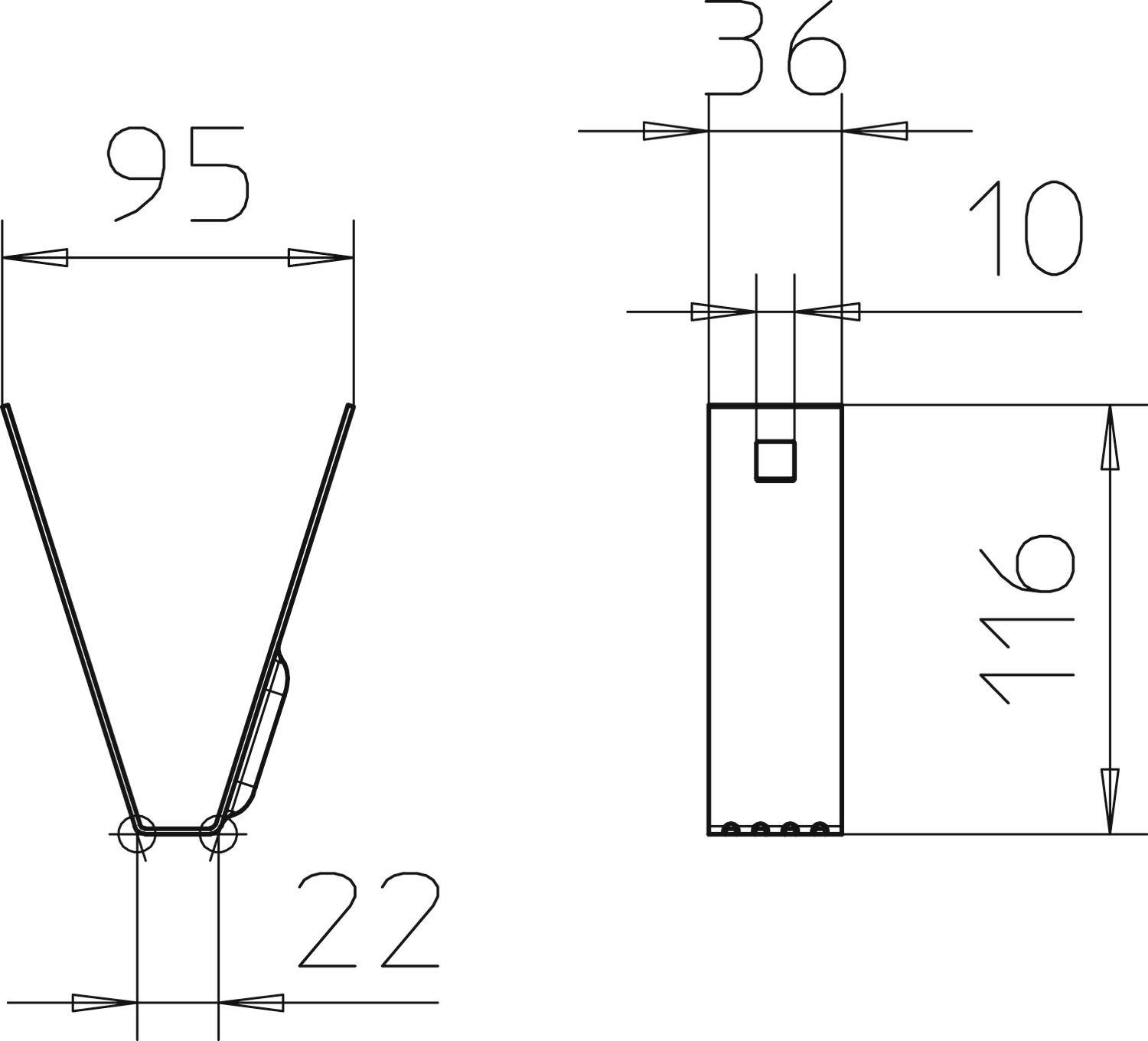

- Dim
(L x W x H) 116 x 100 x 95.0000 mm
- Length
116 mm
- Width
100 mm
- Height
95.0000 mm
- Depth
36.0000 mm
- Cable tie length
0.036 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966172 OBO Bettermann 6357506 Fasteners (L x W) 116 mm x 100 mm 1 pc(s)
Description
Trapezium mounting the suspended mounting of cable channels of standard trapezoidal ceilings. The mounting is done, for example, by a lock or a hexagonal screw M 10 x 110, which is easily by the holes of the trapezoidal attachment and the ceiling can be inserted. Here is the statics of the trapezoidal sheet metal ceiling to be observed.
