OBO Bettermann 6424552 Wall and handle boom 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications

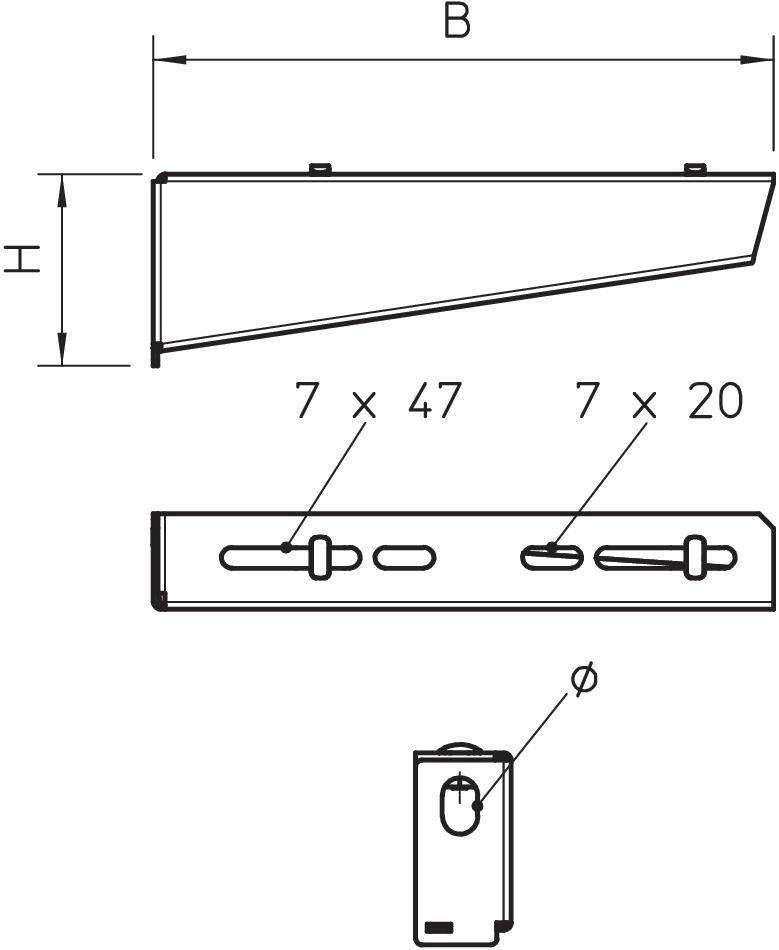

- Length = 210 mm
- Height = 65 mm
- Suitable for cable support system width = 0. .200 mm
- Design = wall and handle boom
- .90° angle = 90.
- Load capacity = 1.2 kN
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = galvanised
- Product type
Wall and handle boom
- Component
Cable duct support
- Supplied length
210 mm
- Content
1 pc(s)
- Factory colour
Metal
- Length
210 mm
- Height
65 mm
- Cable tie length
0.21 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966260 OBO Bettermann 6424552 Wall and handle boom 1 pc(s) Metal
Description

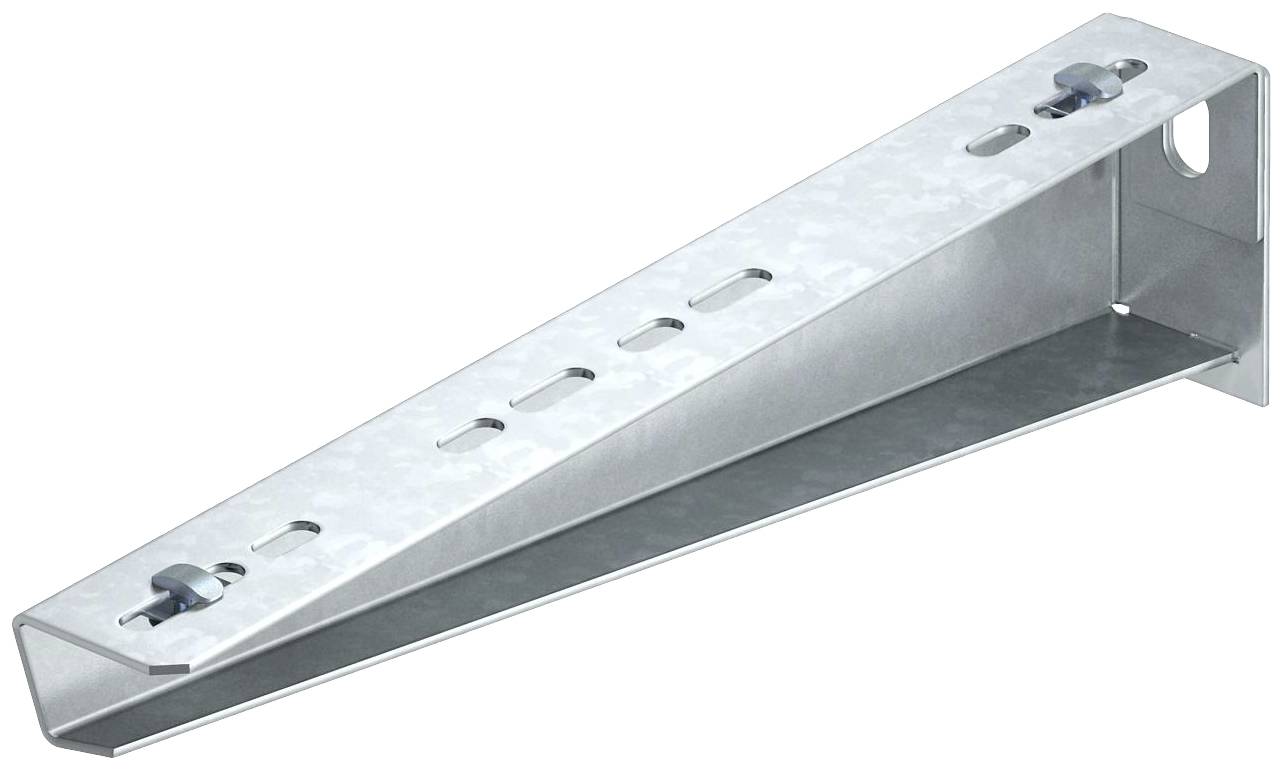

Lightweight wall and handle boom including quick mounting in folded design, including two pre-assembled quick fixing for the rational cable gutter attachment and round-head screw M10x25 for mounting at the U-handle
This text is machine translated.
This text is machine translated.
