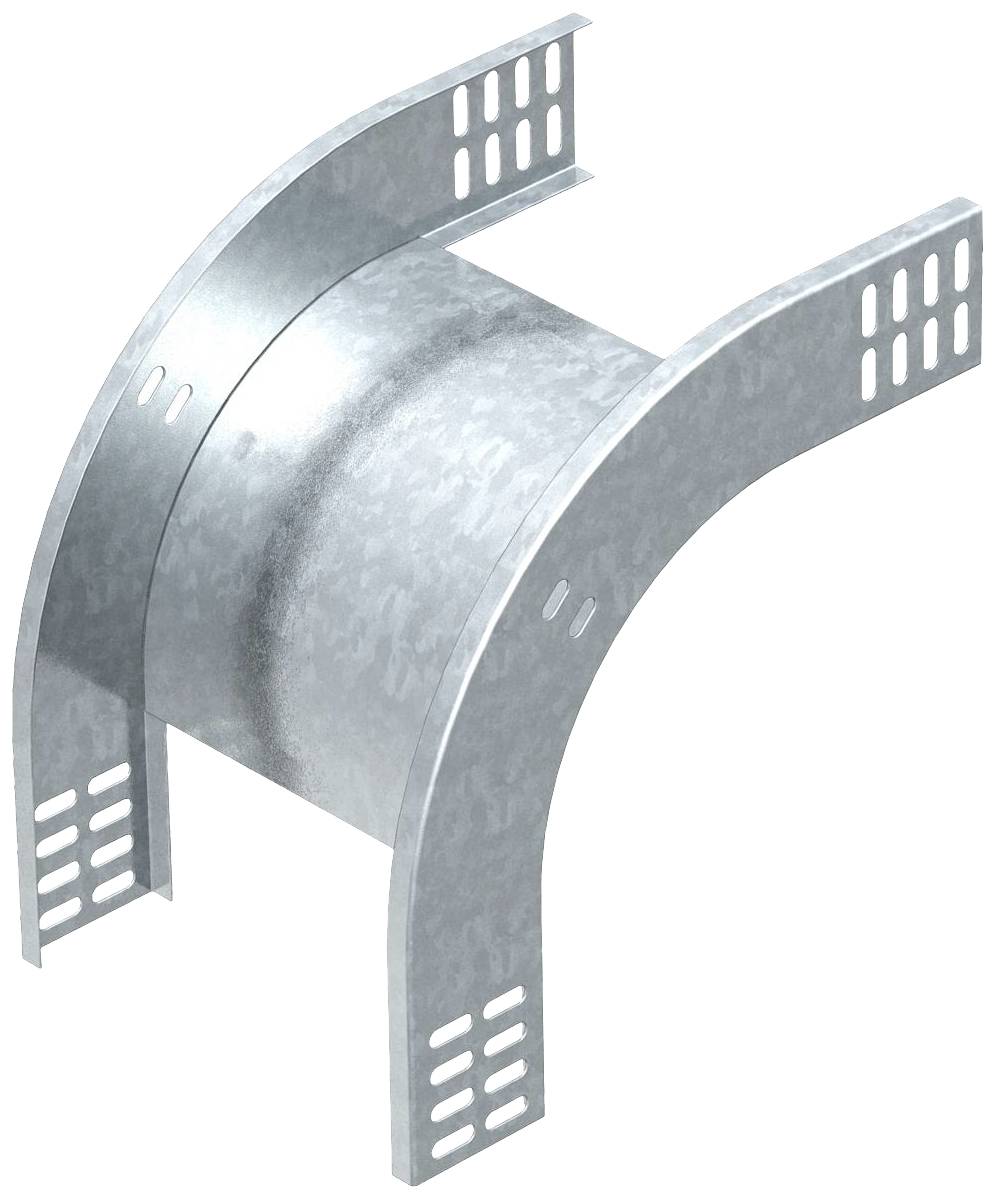

OBO Bettermann 7007055 Bend (W x H) 100 mm x 60 mm 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Change the direction = vertically falling
- Turn (angle) = 90°
- Design = sheet rigid
- Inner radius = 180 mm
- Cable channels height = 60 mm
- Cable channels width = 100 mm
- Side holes = No
- Mounting holes in the Ground = No
- Design = integrated connector
- Wide clamping design = No
- Suitable for function receives = No
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = galvanised
- With the upper part = No
- Product type
Bend
- Content
1 pc(s)
- Factory colour
Metal
- Dim
(W x H x D) 100 x 60 x 60 mm
- Width
100 mm
- Height
60 mm
- Depth
60 mm
- Cable tie length
0.06 mm
- Weight
0.61
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963552 OBO Bettermann 7007055 Bend (W x H) 100 mm x 60 mm 1 pc(s) Metal
Description
The vertical sheet is pushed over the end of the cable channel and screwed. Mounting materials are to be ordered separately
