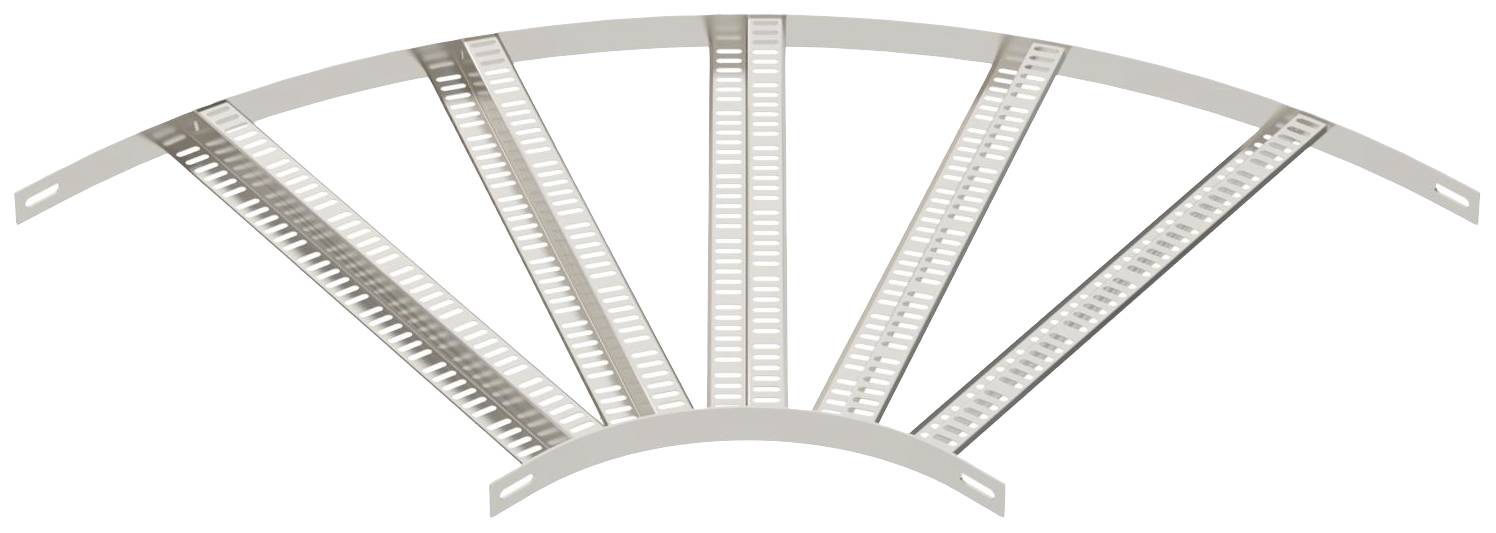

Fan-shaped metal structure with five segmented struts extending uniformly and tapering upwards. Used for support purposes.

Fan-shaped metal structure with five segmented struts extending uniformly and tapering upwards. Used for support purposes.

Technical drawing of a staircase with six steps in a quarter circle. Dimensions: 300 mm step height, step width 300 mm, radius R250.

1/2

OBO Bettermann

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Turn (angle): 90°
Inner radius 250 mm
Cable conductor width 600 mm
Cable conductor height 35 mm
Direction change: Horizontal
Side holes: no.
Wide-span design: no.
Material: Stainless steel

Product type: Bend

Type: Design of the rung: Profile punched
Side bar design: Flat profile

Content: 1 pc(s)

Dim: (W x H) 600 mm x 35 mm

Width: 600 mm

Height: 35 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 2297143 OBO Bettermann 7099272 Bend 1 pc(s)

Description

90° bow for shipbuilding cable ladder type SLZ L with a side height of 35 mm, with welded, perforated Z-rungs.
