OBO Bettermann 7204008 Fire protection 1 pc(s)
EAN:
Part number:
Item no:

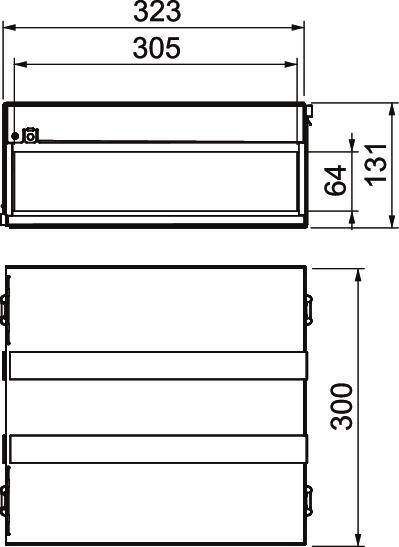

Technical specifications
- Design: Screw box
- Shape: Square
- External height 131 mm
- Outer width 323 mm
- Inner height: 64 mm
- Inner width 305 mm
- Plate thickness/product length 300 mm
- Accessories required: Yes
- Product type
Fire protection
- Type
Schottky Box
- Content
1 pc(s)
- Dim
(L x W x H) 300 x 323 x 131 mm
- Length
300 mm
- Width
323 mm
- Height
131 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162731 OBO Bettermann 7204008 Fire protection 1 pc(s)
Description
Fire protection box as a sealing system made of two-part stainless steel housing with an impressive fire extinguishing inlays. Can be used in walls and ceilings. Fast mounting thanks to the detachable Magic connection. Interior fully equipped with installations. For indoor use. Closure of the remaining openings with fire protection foam PYROSIT® NG, especially simple in difficult geometries. CE-labeled construction product with general design approval. Fire resistance class EI90 (fire resistant). Inclusive of graphite strips.
