OBO Bettermann 7204050 Fire protection 1 pc(s)
EAN:
Part number:
Item no:

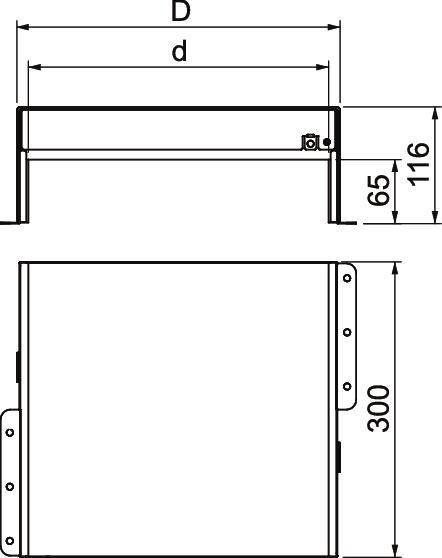

Technical specifications
- Design: Screw box
- Shape: Square
- External height 116 mm
- Outer width 623 mm
- Inner height: 65 mm
- Inner width 605 mm
- Plate thickness/product length 300 mm
- Accessories required: Yes
- Product type
Fire protection
- Type
Schottky Box
- Content
1 pc(s)
- Dim
(L x W x H) 300 x 623 x 116 mm
- Length
300 mm
- Width
623 mm
- Height
116 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162744 OBO Bettermann 7204050 Fire protection 1 pc(s)
Description
Fire protection box as a sealing system made of one-piece stainless steel housing with an impressive fire extinguishing inlays. Can be used in walls on the floor of the raw floor, below the system floors and as a sealing of platforms in ceilings. Interior fully equipped with installations. For indoor use. Closure of the remaining openings with fire protection foam PYROSIT® NG, especially simple in difficult geometries. CE-labeled construction product with general design approval. Fire resistance class EI90 (fire resistant). Inclusive of graphite strips.
