OBO Bettermann 7204120 Fire protection 1 pc(s)
EAN:
Part number:
Item no:

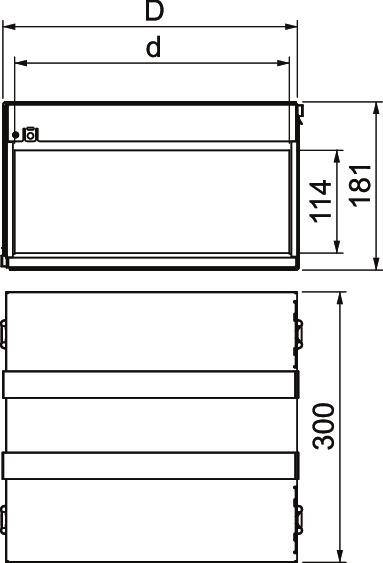

Technical specifications
- Design: Screw box
- Shape: Square
- External height 181 mm
- Outer width 123 mm
- Inner height: 114 mm
- Inner width 105 mm
- Plate thickness/product length 300 mm
- Accessories required: Yes
- Product type
Fire protection
- Type
Schottky Box
- Content
1 pc(s)
- Dim
(L x W x H) 300 x 123 x 181 mm
- Length
300 mm
- Width
123 mm
- Height
181 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162693 OBO Bettermann 7204120 Fire protection 1 pc(s)
Description
Fire protection box as a sealing system made of two-part stainless steel housing with an impressive fire extinguishing inlays. Can be used in walls and ceilings. Fast mounting thanks to the detachable Magic connection. Interior fully equipped with installations. For indoor use. Closure of the remaining openings with fire protection foam PYROSIT® NG, especially simple in difficult geometries. CE-labeled construction product with general design approval. Fire resistance class EI90 (fire resistant). Inclusive of graphite strips.
