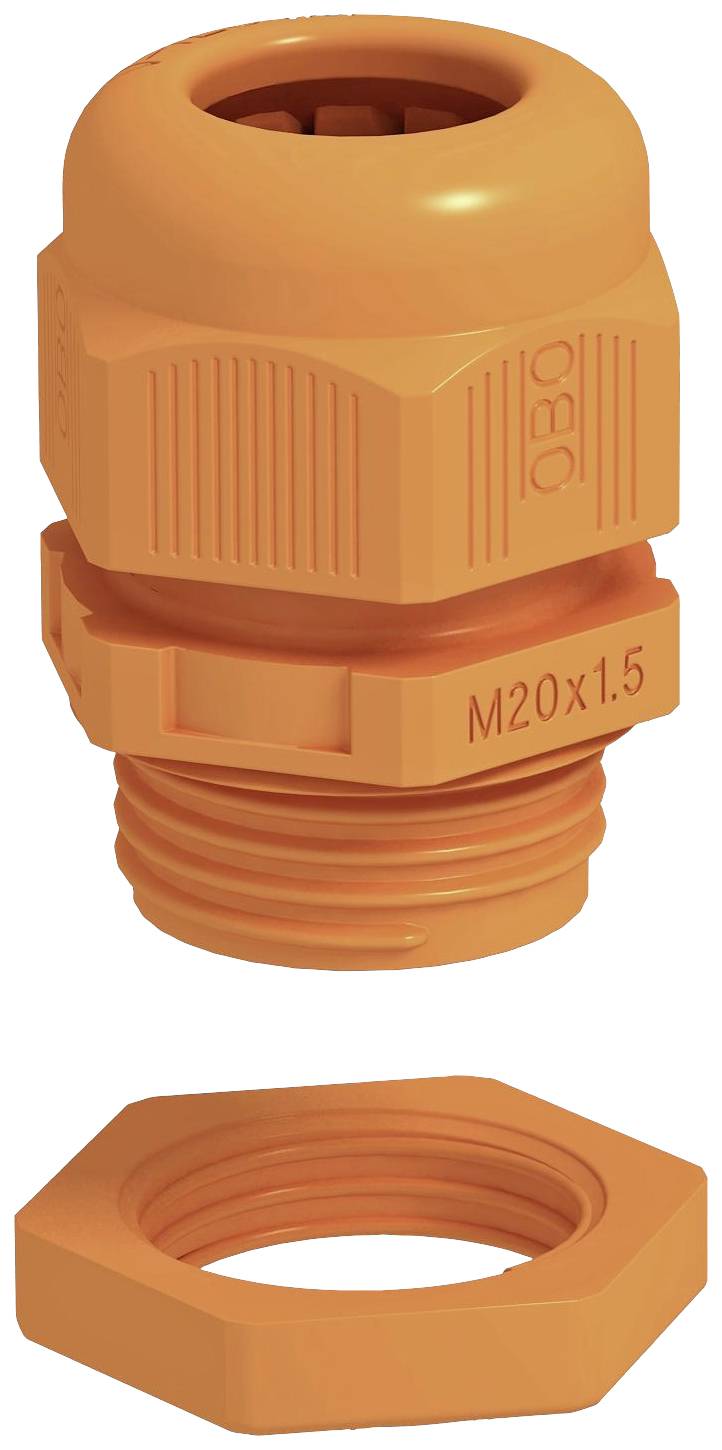

OBO Bettermann 7205660 Cable gland 1.5 mm Plastic 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Type
Straight
Material
Plastic
Clamp Ø
6 mm
Terminal Ø (max.)
13 mm
Technical specifications
- Metric thread type:
- Hexagon Width across corners: 27 mm
- Suitable for cable diameter: 6..13 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Color: Other
- Bend protection: no
- With nut: yes
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with locknut
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
- Clamp Ø
6 mm
- Terminal Ø (max.)
13 mm
- Thread length
9 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
24 mm
- Halogen-free
Yes
- Content
10 pc(s)
- Manufacturer part #
7205660
- Type
V-TEC VM20+ OR
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959038 OBO Bettermann 7205660 Cable gland 1.5 mm Plastic 10 pc(s)
Description
Robust cable gland into domed cap design with a metric connection thread according to IEC 423 including pre-nuts. For high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Sealing ring made of acrylonitrile butadiene rubber/Polychloropren. Molded shape lip seal between the two fittings, no connection thread sealing ring is required. VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar 1 h. For the electrical function receives according to DIN 4102 part 12 in connection with the cable junction box of the FireBox T series.
