OBO Bettermann 7205700 TK 04 Ceramic terminal flexible: - fixed: 4-4 mm² Number of pins: 1 5 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ceramic terminal
Cross section (inflexible) (min.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Number of pins
1
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 5 pc(s))
Total (€ 4.03 / piece)
€ 20.16
plus VAT.
14-day return policy included
Technical specifications
- Explosion tested design "Ex e": No
- Design of electrical connection 1: screw terminals.
- Design of electrical connection 2: screw terminals.
- Connection position: lateral
- Number of clamping points each pole: 2
- Installation type: Other
- Material of the insulating body: Ceramic
- Operating temperature: 250..250°C
- Height at niedrigstbauender fixings: 21.5 mm
- Length: 21.5 mm
- End plate required: No
- Color: Other
- Transparent: no
- Packaging type
Piece
- Product type
Ceramic terminal
- Cross section (inflexible) (min.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
1
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
5 pc(s)

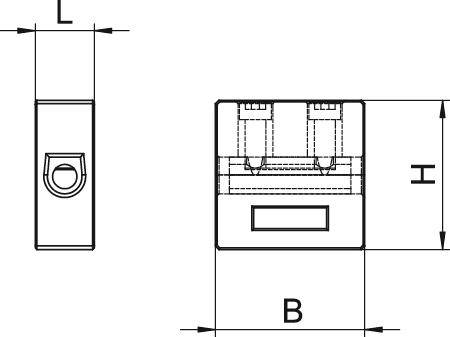

- Dim
(L x W) 21.5 mm x 8.5 mm
- Manufacturer part #
7205700
- Connection
Screws
- Insulation material
Ceramic
- Nominal voltage
400 V
- Width
8.5 mm
- Length
21.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961733 OBO Bettermann 7205700 TK 04 Ceramic terminal flexible: - fixed: 4-4 mm² Number of pins: 1 5 pc(s)
Description
High temperature resistant ceramic clamp for retrofitting of the FireBox T series.
