OBO Bettermann 7205704 TK 10 Ceramic terminal flexible: - fixed: 10-10 mm² Number of pins: 1 5 pc(s)
EAN:
Part number:
Item no:
Product type
Ceramic terminal
Cross section (flexible) (min.)
10 mm²
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (min.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Technical specifications
- Explosion tested design "Ex e": No
- Design of electrical connection 1: screw terminals.
- Design of electrical connection 2: screw terminals.
- Connection position: lateral
- Number of clamping points each pole: 2
- Installation type: Other
- Material of the insulating body: Ceramic
- Operating temperature: 250..250°C
- Width/spacing: 12.5 mm
- Height at niedrigstbauender Installation type: 24 mm
- Length: 24 mm
- End plate required: No
- Color: Other
- Transparent: no
- Product type
Ceramic terminal
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
10 mm²
- Number of pins
1
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Content
5 pc(s)

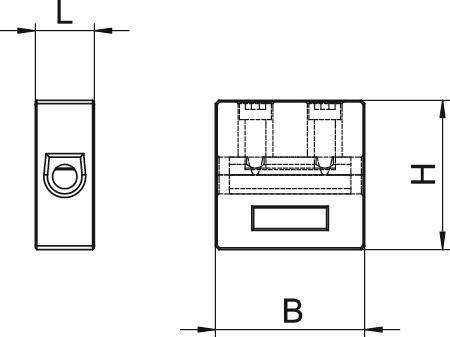

- Dim
(L x W) 24 mm x 12.5 mm
- Manufacturer part #
7205704
- Connection
Screws
- Insulation material
Ceramic
- Nominal voltage
250 V
- Width
12.5 mm
- Length
24 mm
- Pitch
12.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964446 OBO Bettermann 7205704 TK 10 Ceramic terminal flexible: - fixed: 10-10 mm² Number of pins: 1 5 pc(s)
Description
High temperature resistant ceramic clamp for retrofitting of the FireBox T series.
