OBO Bettermann 7218008 Fire protection 2 m
EAN:
Part number:
Item no:
Technical specifications

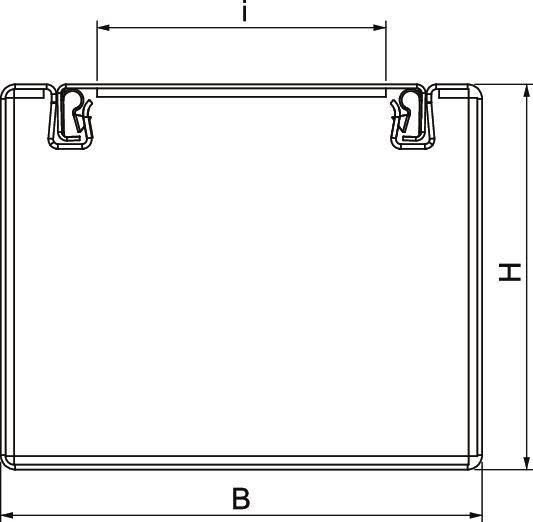

- External height 80 mm
- Outer width 100 mm
- Inner height: 74 mm
- Inner width 94 mm
- Length: 2000 mm
- Usable cross-section: 5180 mm²
- Number of flammable pages: 4
- Sheath: Steel
- Surface protection: Zinc-plated strip
- Separator walls possible: Yes
- With floor perforation: Yes
- Lid mounting: Other
- Product type
Fire protection
- Component
Wiring duct
- Supplied length
2000 mm
- Content
2 m
- Dim
(L x W x H) 2 m x 100 mm x 80 mm
- Length
2 m
- Width
100 mm
- Height
80 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3407081 OBO Bettermann 7218008 Fire protection 2 m
Description
Metal installation duct with an easy-to-use fire extinguishing fabric for secure cable laying. Classified as installation channel EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents fire transmission over the classified period and protects against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. Only approved pre-fabricated molded parts may be used. The cover is snapped on without tool and allows a quick revision and re-assignment. Offset lid mounting for universal equipotential bonding of the entire channel possible.
This text is machine translated.
Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. Only approved pre-fabricated molded parts may be used. The cover is snapped on without tool and allows a quick revision and re-assignment. Offset lid mounting for universal equipotential bonding of the entire channel possible.
This text is machine translated.
Scope of delivery
- 1 x 2 m fire protection
