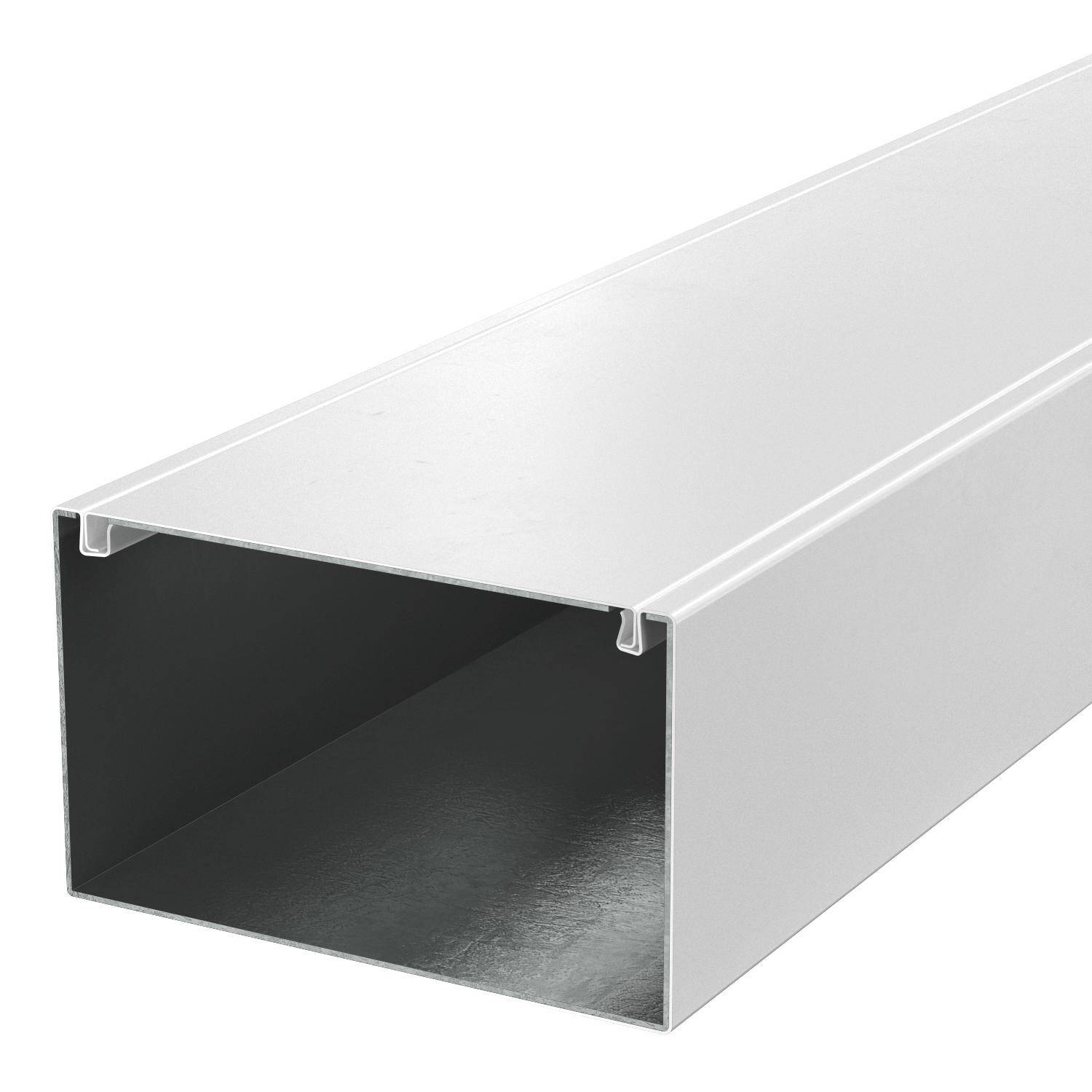

OBO Bettermann 7218014 Fire protection 2 m White
EAN:
Part number:
Item no:
Technical specifications
- External height 120 mm
- Outer width 200 mm
- Inner height: 114 mm
- Inner width 194 mm
- Length: 2000 mm
- Usable cross-section: 18500 mm²
- Number of flammable pages: 4
- Sheath: Steel
- Surface protection: Coated
- Colour: white
- RAL number: 9010
- Separator walls possible: Yes
- With floor perforation: Yes
- Lid mounting: Other
- Product type
Fire protection
- Component
Wiring duct
- Supplied length
2000 mm
- Content
2 m
- Factory colour
White

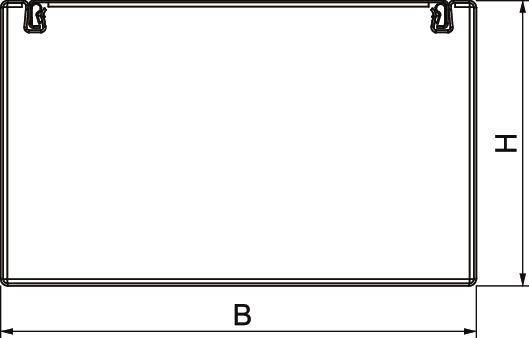

- Dim
(L x W x H) 2 m x 200 mm x 120 mm
- Length
2 m
- Width
200 mm
- Height
120 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3407048 OBO Bettermann 7218014 Fire protection 2 m White
Description
Metal installation duct with an easy-to-use fire extinguishing fabric for secure cable laying. Classified as installation channel EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents fire transmission over the classified period and protects against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. Only approved pre-fabricated molded parts may be used. The cover is snapped on without tool and allows a quick revision and re-assignment. Offset lid mounting for universal equipotential bonding of the entire channel possible.
This text is machine translated.
Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. Only approved pre-fabricated molded parts may be used. The cover is snapped on without tool and allows a quick revision and re-assignment. Offset lid mounting for universal equipotential bonding of the entire channel possible.
This text is machine translated.
Scope of delivery
- 1 x 2 m fire protection
