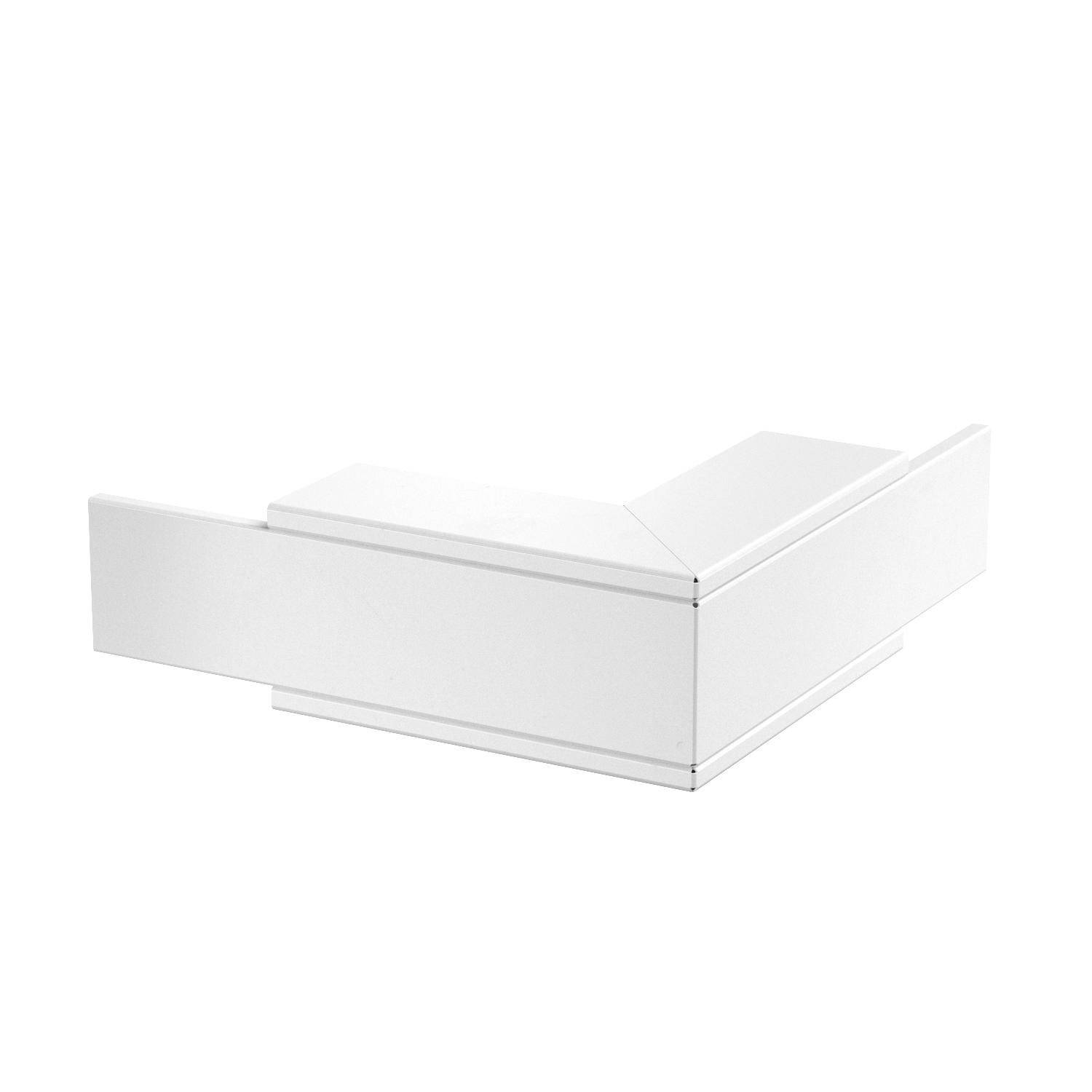

OBO Bettermann 7218044 Outside corner 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- Angle 90 °
- Outer width 220 mm
- Inner height: 80 mm
- Inner width 100 mm
- Number of flammable pages: 4
- Sheath: Steel
- Surface protection: Coated
- Colour: white
- RAL number: 9010
- Separator walls possible: No.
- With floor perforation: Yes
- Lid mounting: Other
- Product type
Outside corner
- Component
Outside corner
- Content
1 pc(s)
- Factory colour
White
- Dim
(W x H) 220 mm x 80 mm
- Width
220 mm
- Height
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162429 OBO Bettermann 7218044 Outside corner 1 pc(s) White
Description
Outer corner with an impromptu fire protection fabric for installation channel PYROLINE® Rapid PLM. Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. The cover is snapped on without tool and allows a quick revision and re-assignment. Lid supernatant enables vertical mounting for consistent potential equalization of the entire channel path.
This text is machine translated.
This text is machine translated.
