OBO Bettermann 7218112 Bend 1 pc(s) White
EAN:
Part number:
Item no:
Technical specifications
- 45 ° angle
- Outer width 190 mm
- Inner height: 120 mm
- Inner width 200 mm
- Number of flammable pages: 4
- Sheath: Steel
- Surface protection: Coated
- Colour: white
- RAL number: 9010
- Separator walls possible: No.
- With floor perforation: Yes
- Product type
Bend
- Content
1 pc(s)
- Factory colour
White
- Dim
(W x H) 200 mm x 120 mm
- Width
200 mm
- Height
120 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162460 OBO Bettermann 7218112 Bend 1 pc(s) White
Description

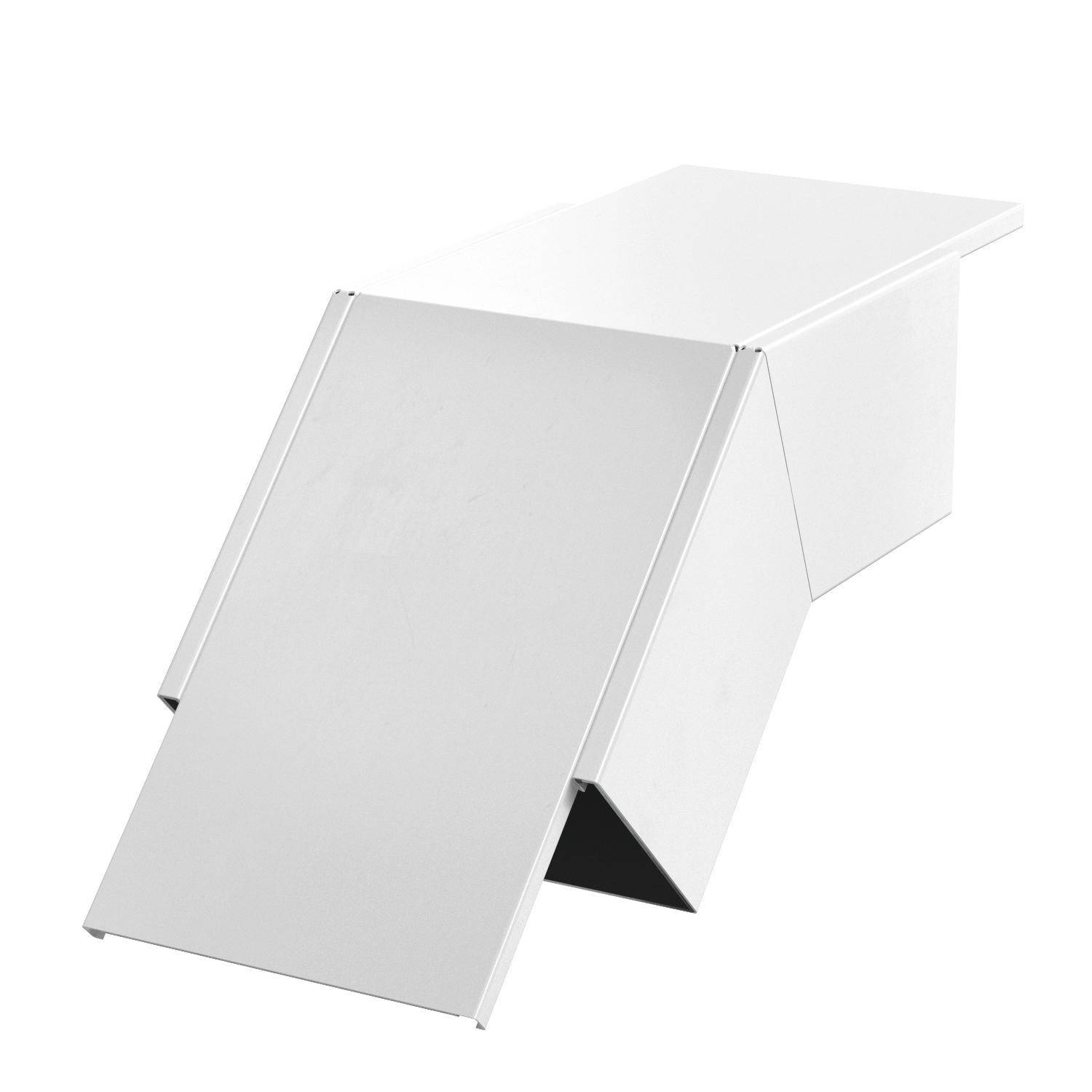

45° vertical bow in falling design with an intuitive fire protection fabric for installation channel PYROLINE® Rapid PLM. Suitable for direct wall and ceiling mounting, mounting below the system floor and on support systems. Tool-free joint assembly with PLM SI butt connector. The cover is snapped on without tool and allows a quick revision and re-assignment. Lid supernatant enables vertical mounting for consistent potential equalization of the entire channel path.
This text is machine translated.
This text is machine translated.
