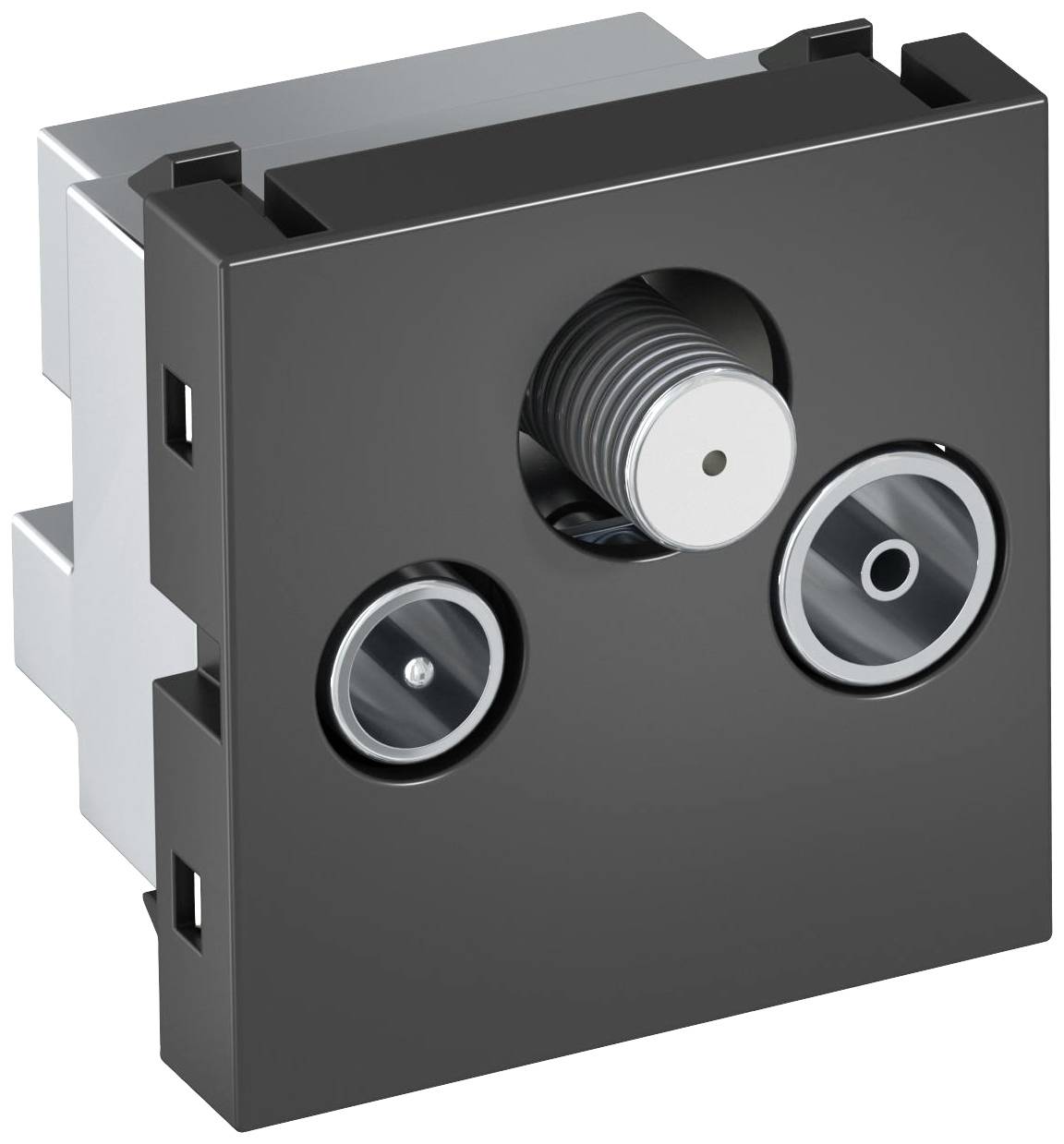

OBO Bettermann ANT-3SD SWGR1 Antenna socket Terminated
EAN:
Part number:
Item no:
Technical specifications
- Connection damping at 860 MHz = 1 dB, Connection attenuation with 2150 MHz = 2 dB, number of outlets = 3, frequency=5. .2150 MHz
- Type
Terminated
- Product type
Antenna socket
- Suitable for
BK
- Mounting type
Mounting brackets
- SAT frequency (max.)
2150 MHz
- No. of FMs
1 x
- No. of TVs
1 x
- No. of SATs
1 x
- SAT signal attenuation
2 dB
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961972 OBO Bettermann ANT-3SD SWGR1 Antenna socket Terminated
Description
Stub socket for connecting antennas, BK and satellite reception systems with connection socket for TV, radio and SAT-plug. The antenna socket can be used in device installation ducts Rapid 45, device installation ducts Rapid 80, Installation columns and under floor systems.
