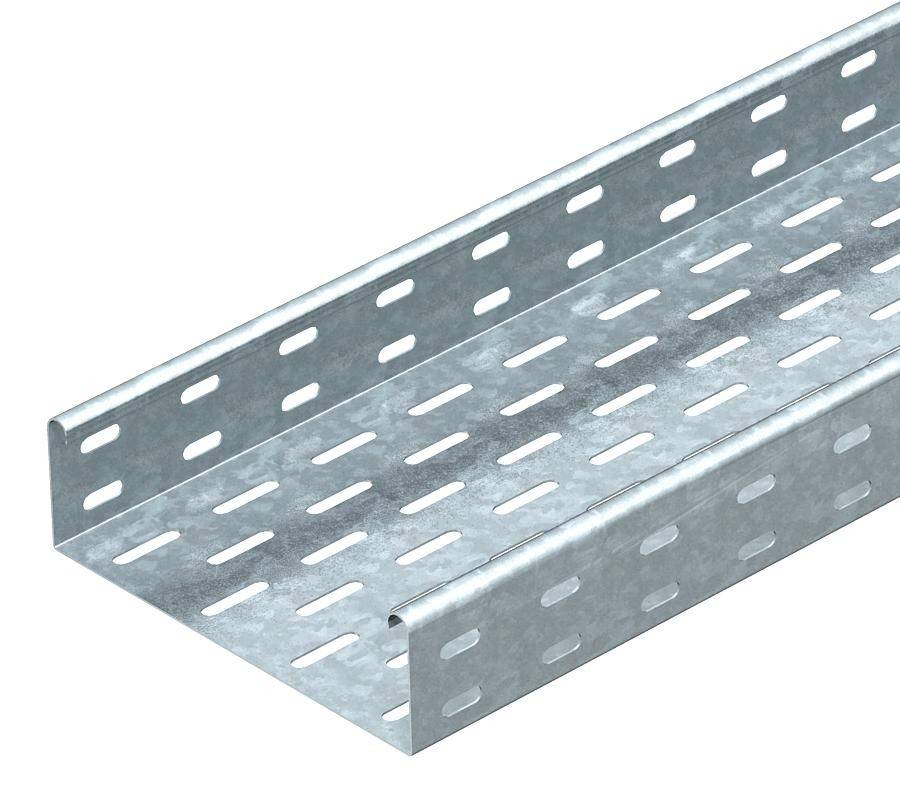

OBO Bettermann Cable duct (L x W x H) 3000 x 100.00 x 60.00 mm 1 pc(s)
EAN:
Part number:
Item no:

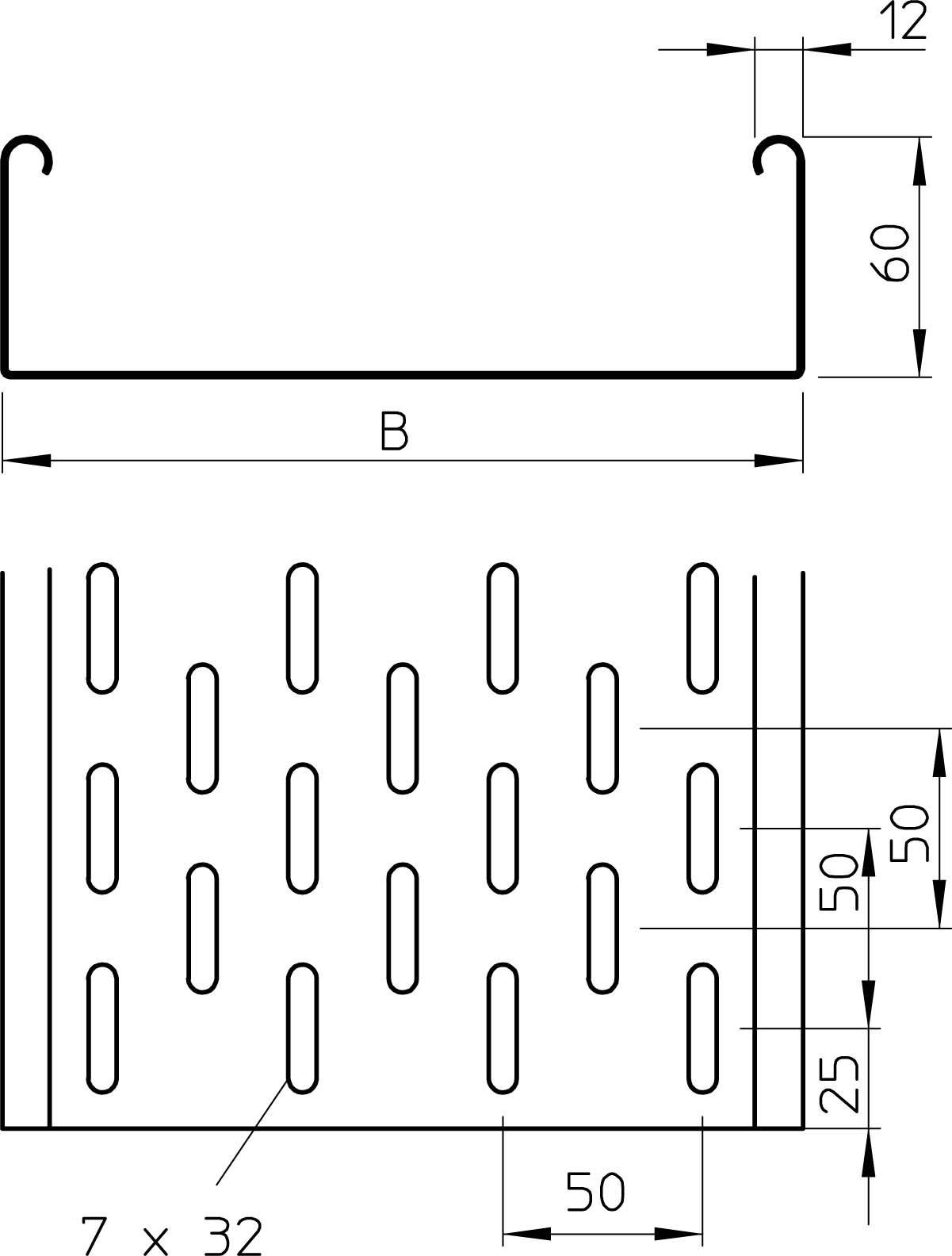

Technical specifications
- Height: 60 mm
- Width 100 mm
- Material thickness 1 mm.
- Length: 3000 mm
- Usable cross-section: 5800 mm²
- With top: No.
- Side holes: Yes
- Mounting holes in the ground: Yes
- NATO hole pattern: No.
- Design: The connectors supplied
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Stainless steel, stained: No.
- Material quality: Other
- Surface protection: Zinc-plated strip
- Weighs 1.73 kg/m.
- Load test type according to IEC 61537: Type II.
- Product type
Cable duct
- Type
Supplied connector
- Content
1 pc(s)
- Dim
(L x W x H) 3000 x 100.00 x 60.00 mm
- Length
3000 mm
- Width
100.00 mm
- Height
60.00 mm
- Cable length
3 m
- Version
Adapter
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3312958 OBO Bettermann Cable duct (L x W x H) 3000 x 100.00 x 60.00 mm 1 pc(s)
Description
MKS 60 = medium-heavy cable channel system in 60 mm side height. FS including longitudinal connector set RV 60.
