OBO Bettermann CEE suspended distributor VH-4 3SF1C16 6109808 415 V 16 A
EAN:
Part number:
Item no:
Technical specifications
- Material of the housing=plastic, handling=dependant
- Product type
CEE suspended distributor
- No. of CEE connectors
1
- No. of PG sockets
3
- Nominal input voltage
415 V
- Nominal output voltage
250 V
- Nominal input current
16 A
- Factory colour
Black
Yellow
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE CARA connector (3-pin, 16 A)
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966042 OBO Bettermann CEE suspended distributor VH-4 3SF1C16 6109808 415 V 16 A
Description

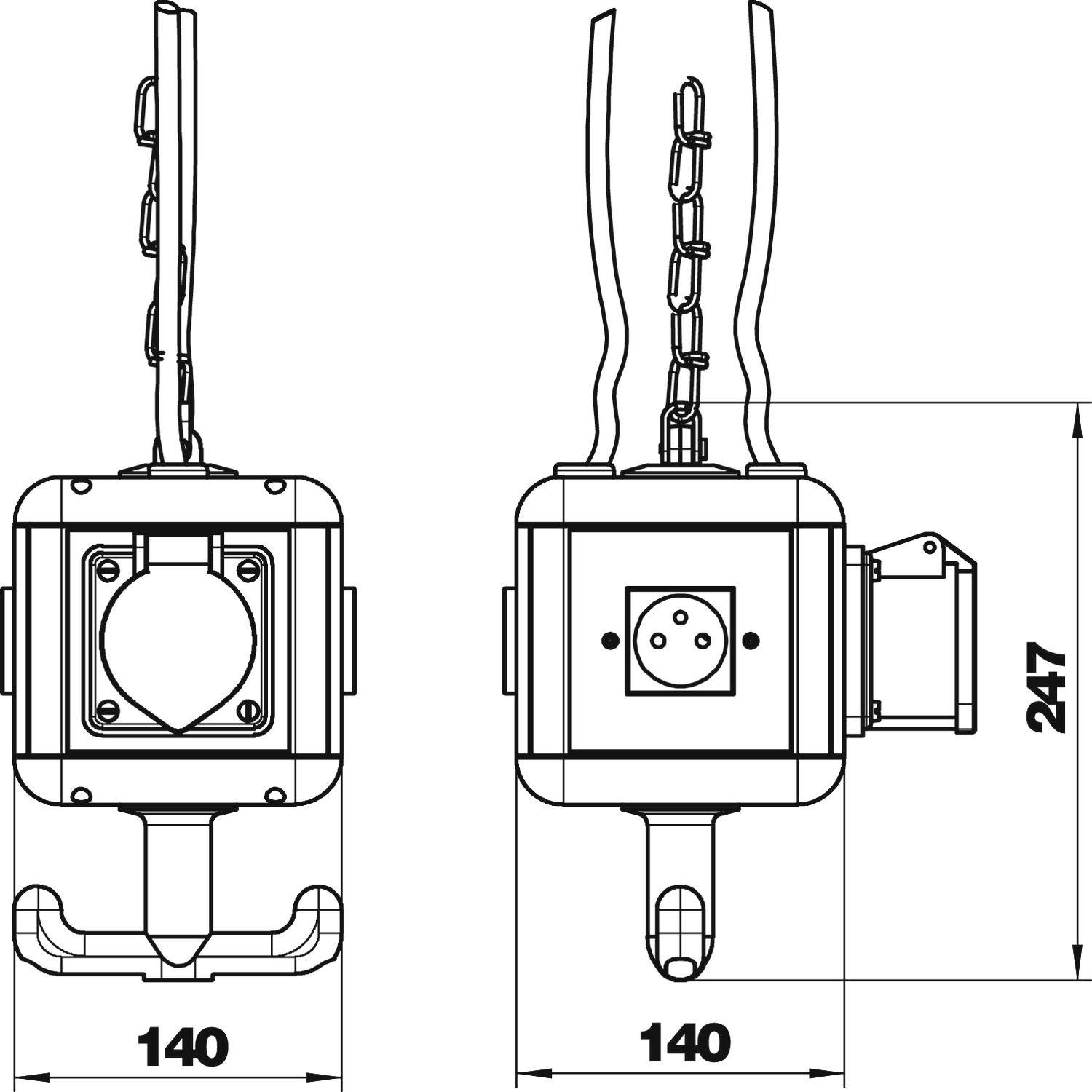

Housing with suspension eye and grip hook and with 4 cover plates. Equipped as follows: 1 x 3-pin terminals, 3 x 1fach sockets with earthing pin 16 A/250 V with protection against penetration of foreign bodies (increased contact protection), pre-wired to an AC circuit, 1 x CEE socket 16 A/415 V.
