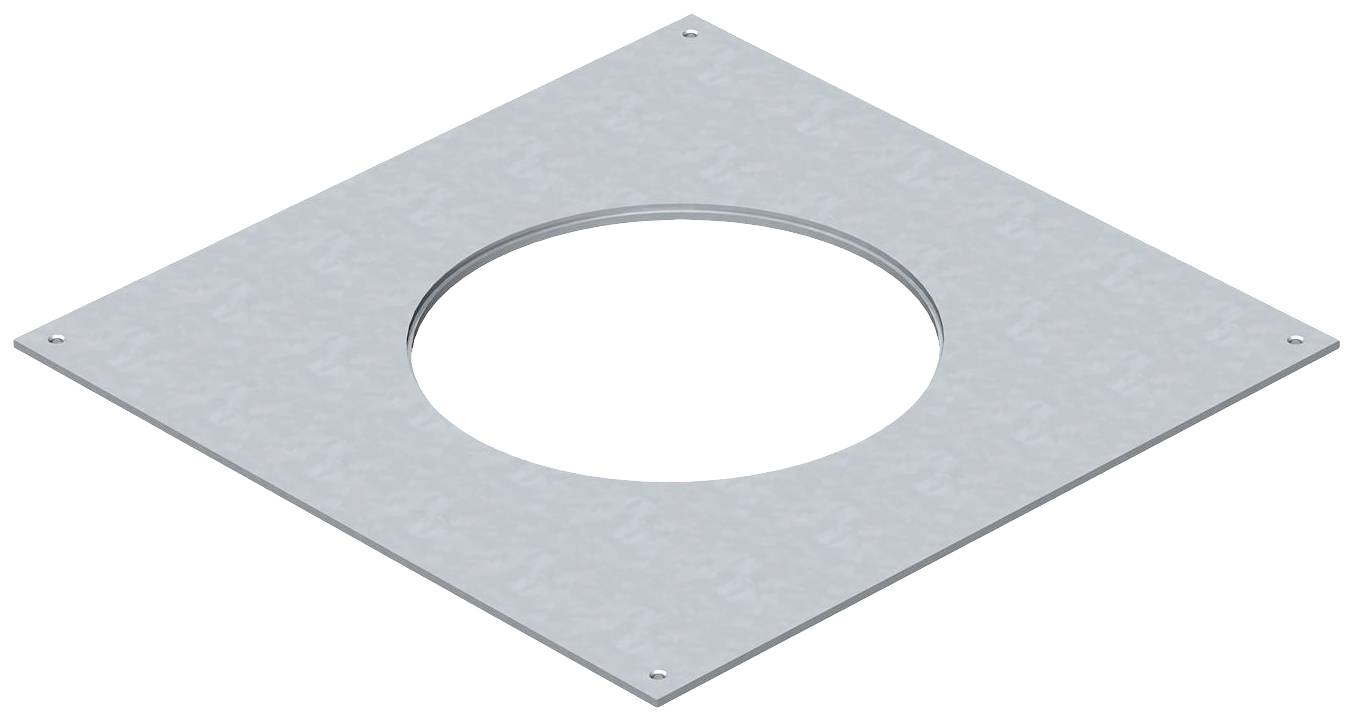

Metal plate in a square shape with a circular cut-out in the centre, shown in a slightly angled view.

Metal plate in a square shape with a circular cut-out in the centre, shown in a slightly angled view.

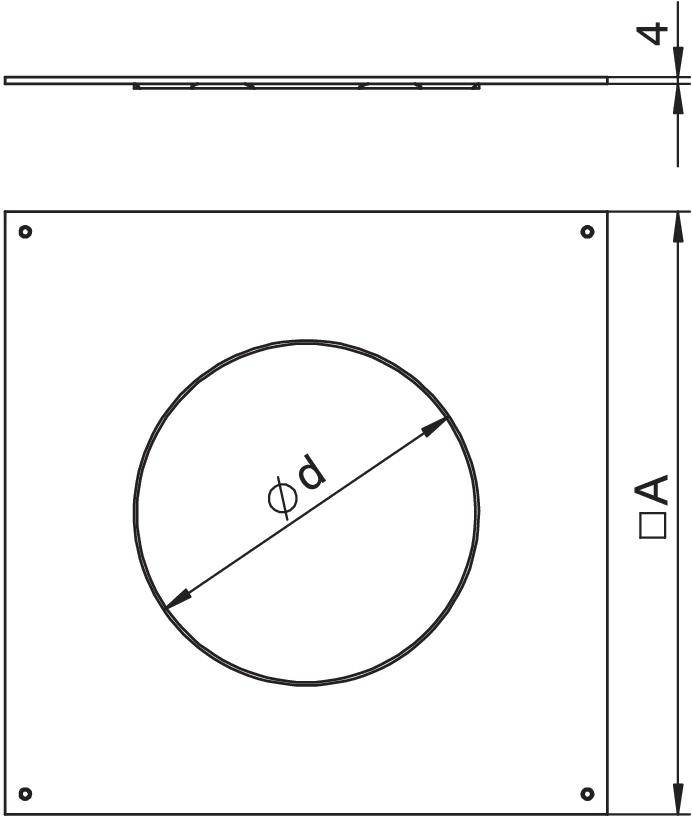

Technical drawing of a square plate piece with a central circular hole. Dimensions are marked with 'd' and 'A'.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Nominal size = 215 mm
Width = 282 mm
Length = 282 mm
Installation opening = round
Cover Installation opening = No
Material thickness = 4 mm
Material = Steel

Product type: Mount

Height: 3 mm

Length: 282 mm

Width: 282 mm

Dim: (L x W x H) 282 x 282 x 3 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1960650 OBO Bettermann DUG 250-3 R4 Mount

Description

Mounting Lid for unterflur-zug and junction boxes of type UZD250-2 and UZD 250-3 for the installation of a built-in unit of the nominal size R4. Mounting hole 3 mm deepened for subsequent filler with cover blind plate
