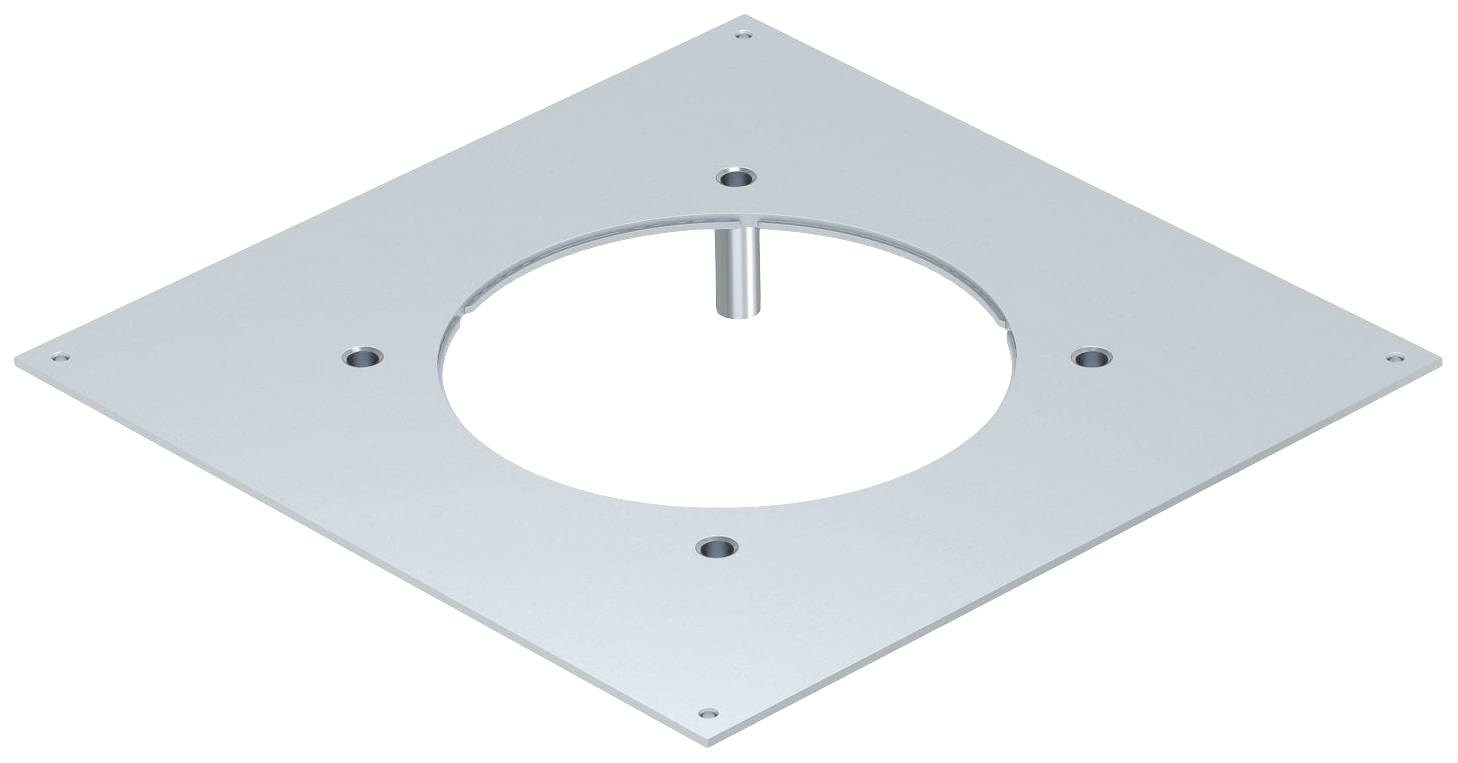

A square metal plate with a large central hole and several screw holes at the corners and around the hole.

A square metal plate with a large central hole and several screw holes at the corners and around the hole.

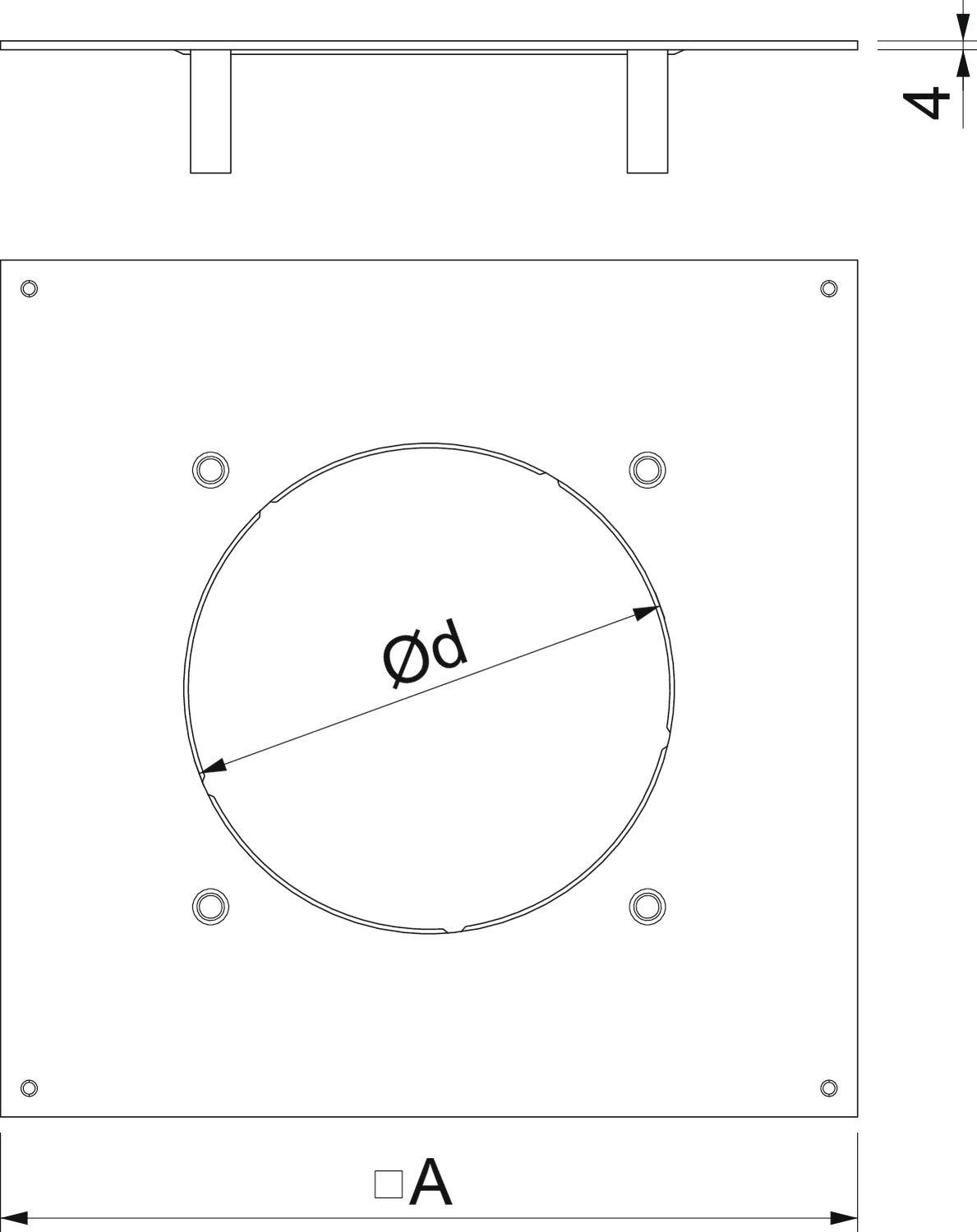

Technical drawing of a square flange with a central circular opening, shown from above and from the side; dimensions: diameter 'Ød' and width 'A'.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Nominal size = 350 mm
Width = 383 mm
Length = 383 mm
Installation opening = round
Cover Installation opening = No
Floor Care = dry
Material thickness = 4 mm
Material = Steel

Product type: Heavy duty mount

Length: 383 mm

Width: 383 mm

Dim: (L x W) 383 mm x 383 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1960645 OBO Bettermann DUG 350-3 R4SL Heavy duty mount

Description

The heavy-duty mounting cover for the underfloor box type UZD350-3 is ideal for mounting a round Heavy Load cassette the nominal size R4. The installation opening is 3 mm deeper and therefore can be retrofitted with a cover blind plate closed. The levelling units must be ordered separately.

This text is machine translated.
