1/2
OBO Bettermann GES2 DB 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for wet care = No
- Suitable for underfloor channel = No
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 1
- Material = polyamide (PA)
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 61 mm
- Color = black

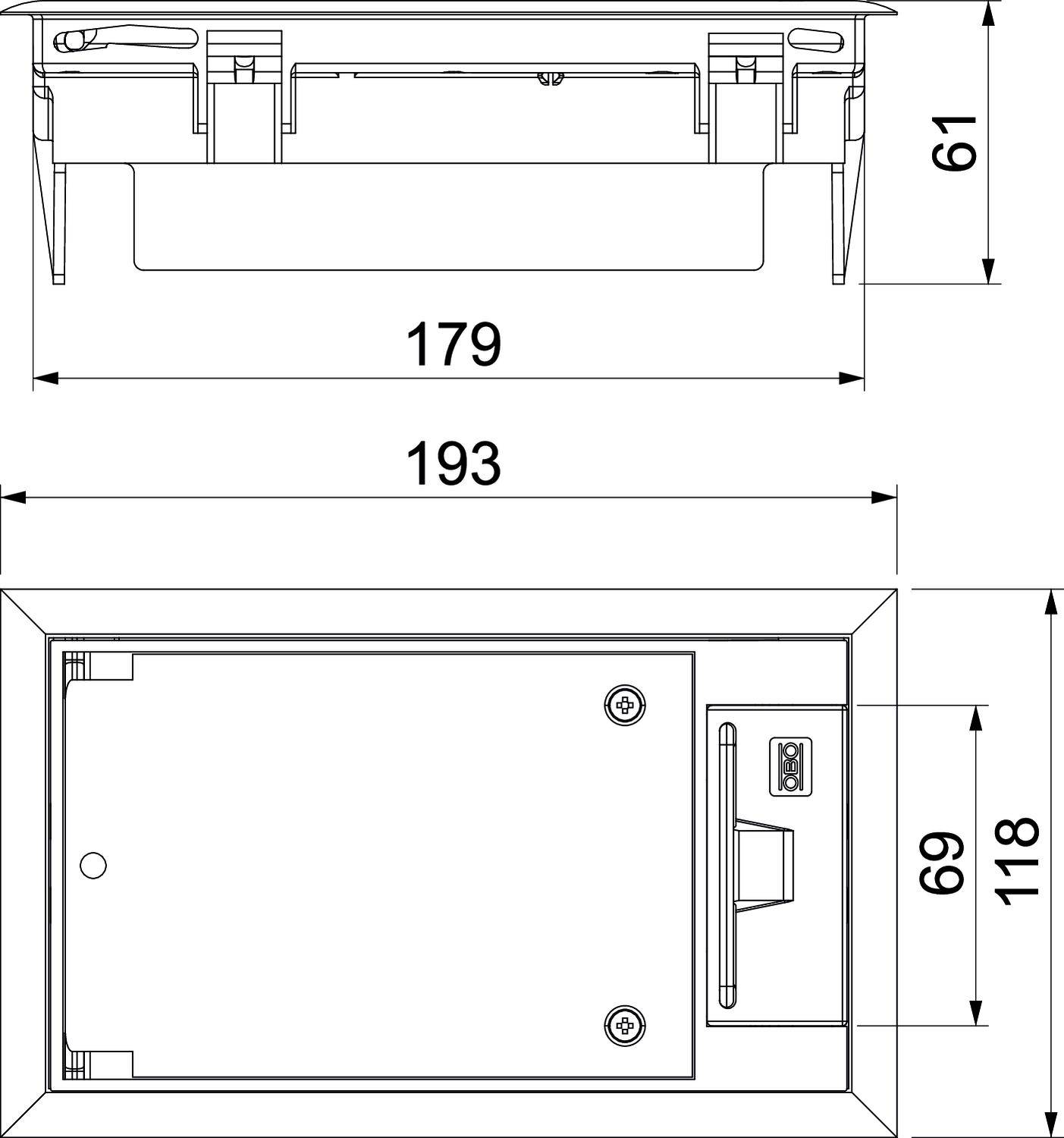

- Length Outer dimension = 194 mm
- Outside width dimension = 116 mm
- Length Installation dimension = 180 mm
- Installation dimensions: width = 104 mm
- Product type
Inset
- Height
61 mm
- Length
194 mm
- Width
116 mm
- Dim
(L x W x H) 194 x 116 x 61 mm
- Factory colour
Black
- Recess depth
61 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955259 OBO Bettermann GES2 DB 9011 Inset
Description

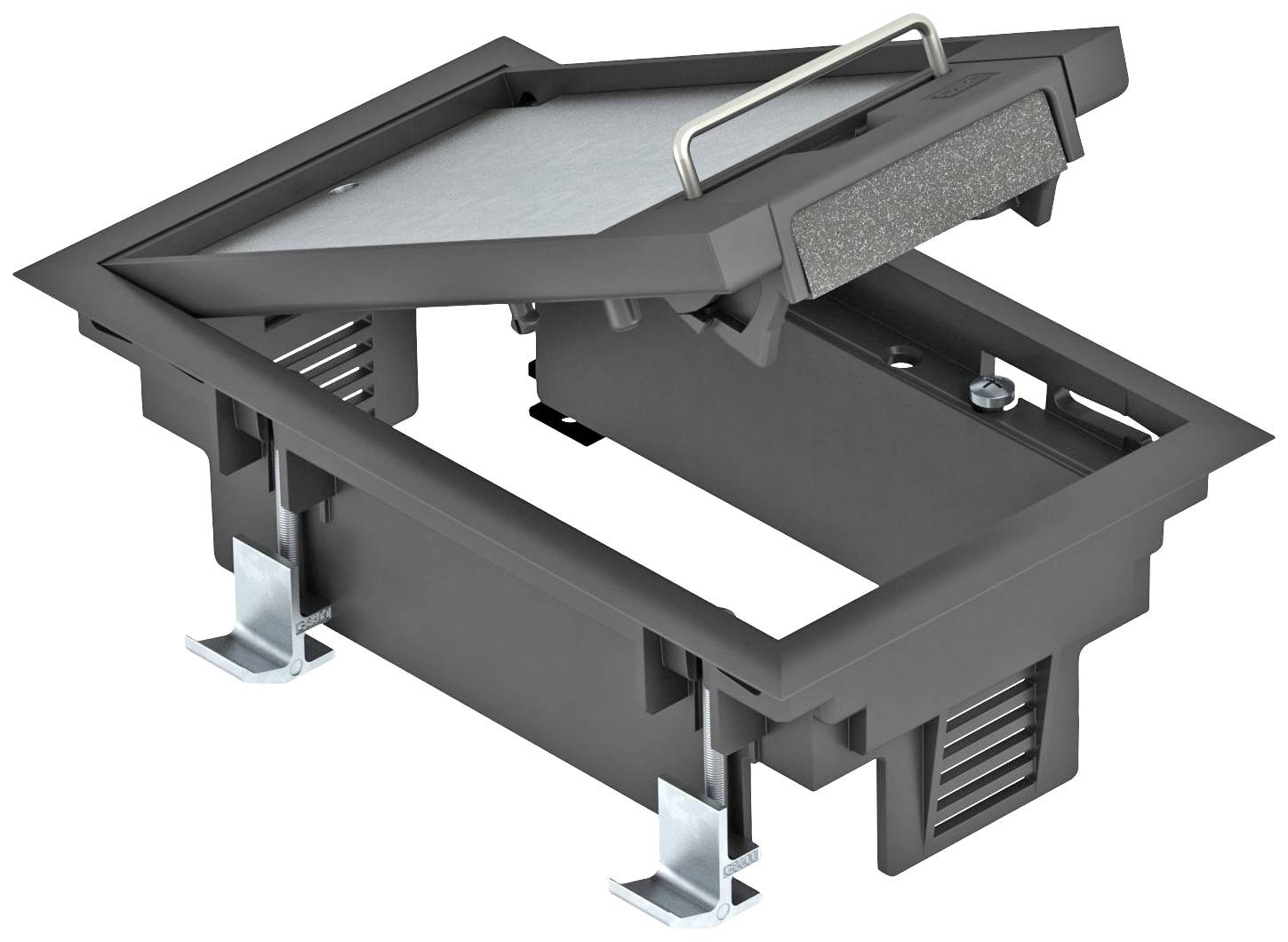

Insert for subway GB2 for use in double bottom. Mounting bracket with a clamping range up to 50 mm thickness. Carpet protection framework, hinged lid and cord outlet made of polyamide. Flooring, the recess in the lid 5 mm.
This text is machine translated.
This text is machine translated.
