OBO Bettermann GES4-2U10T 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = square
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 2
- Material = polyamide (PA)
- With flooring recess = Yes
- The depth of the flooring recess = 10 mm
- Flooring protection frame = Yes
- Min. Installation depth = 73 mm
- Color = gray
- RAL-number =7011

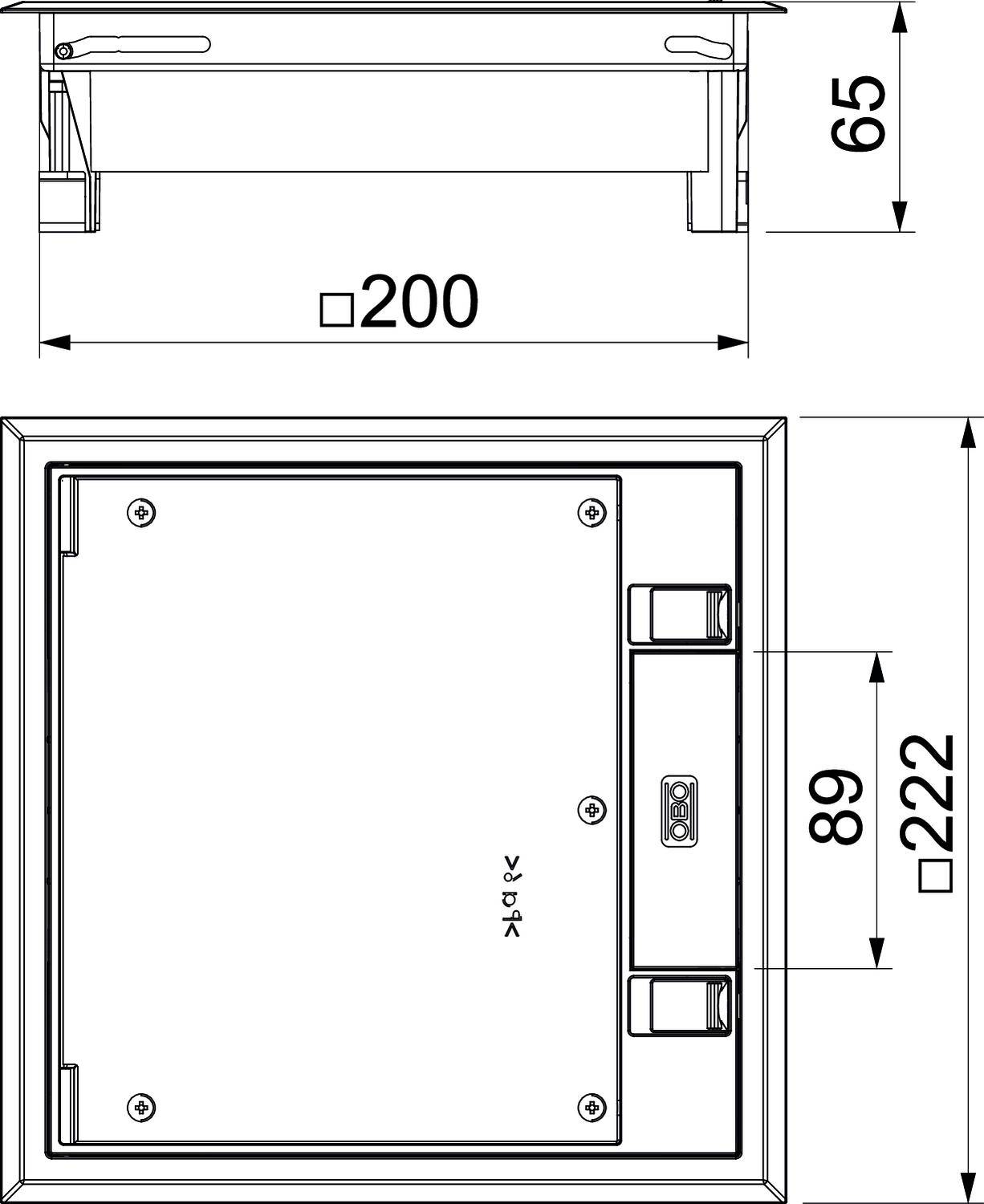

- Installation dimension = 201 mm length
- Installation dimensions: width = 201 mm
- Product type
Inset
- Length
201 mm
- Width
201 mm
- Dim
(L x W) 201 mm x 201 mm
- Factory colour
Grey
- Recess depth
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962072 OBO Bettermann GES4-2U10T 7011 Inset
Description
Insert for 4 installation devices in 2 device cups GB2 for use in channel systems and double bottom. Universal mounting brackets can be set to double bottom thickness up to 65 mm.
