OBO Bettermann GES6-2U10T 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = No
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = polyamide (PA)
- With flooring recess = Yes
- The depth of the flooring recess = 10 mm
- Flooring protection frame = Yes
- Min. Installation depth = 73 mm
- Color = gray
- RAL-number =7011

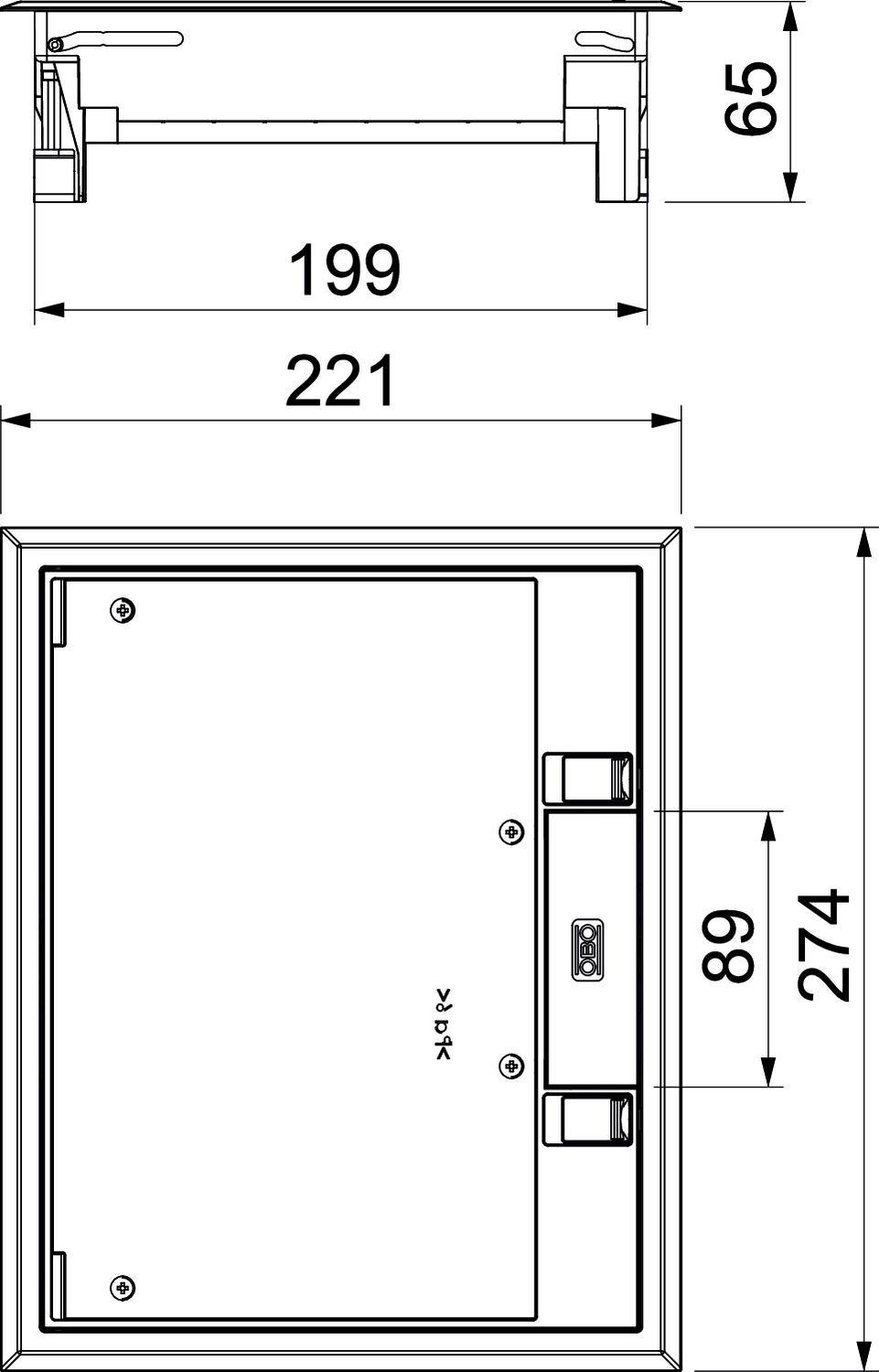

- Installation dimension = 201 mm length
- Installation dimensions: width = 253 mm
- Product type
Inset
- Length
201 mm
- Width
253 mm
- Dim
(L x W) 201 mm x 253 mm
- Factory colour
Grey
- Recess depth
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966108 OBO Bettermann GES6-2U10T 7011 Inset
Description

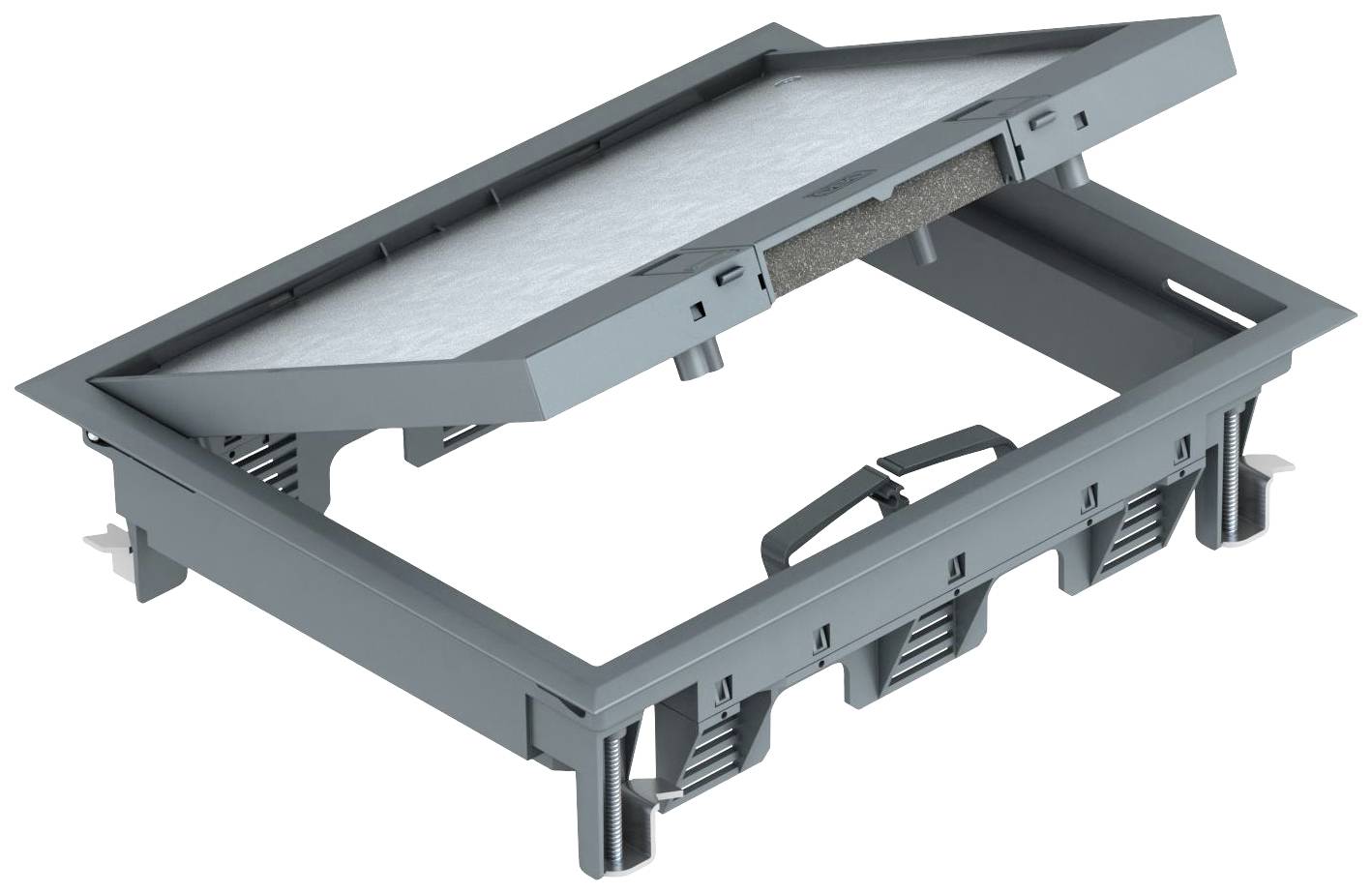

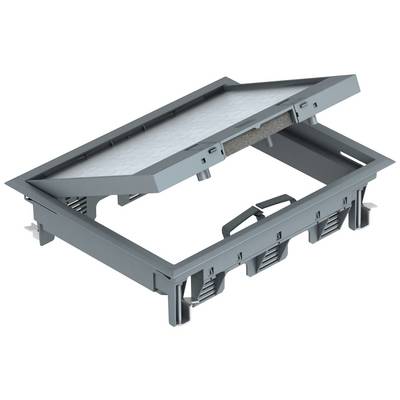

Insert for 6 or 9 module Standard (Type EKR-45 installation devices in 3 device cups GB2 for use in channel systems and double bottom. Universal mounting brackets can be set to double bottom thickness up to 65 mm. Carpet protection framework, hinged lid and cord outlet made of polyamide. Flooring, the recess in the lid 5 mm, if necessary also einstelllbar on 3, 8 or 10 mm.
