OBO Bettermann GES9 10U 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 9
- Material = polyamide (PA)
- Surface = structured
- With flooring recess = Yes
- The depth of the flooring recess = 10 mm
- Flooring protection frame = Yes
- Min. Installation depth = 66 mm
- Color = gray
- RAL-number =7011
- Length Outer dimension = 264 mm
- Installation dimensions: width = 242 mm
- Product type
Inset
- Length
264 mm
- Width
242 mm
- Dim
(L x W) 264 mm x 242 mm
- Factory colour
Grey
- Recess depth
66 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960652 OBO Bettermann GES9 10U 7011 Inset
Description

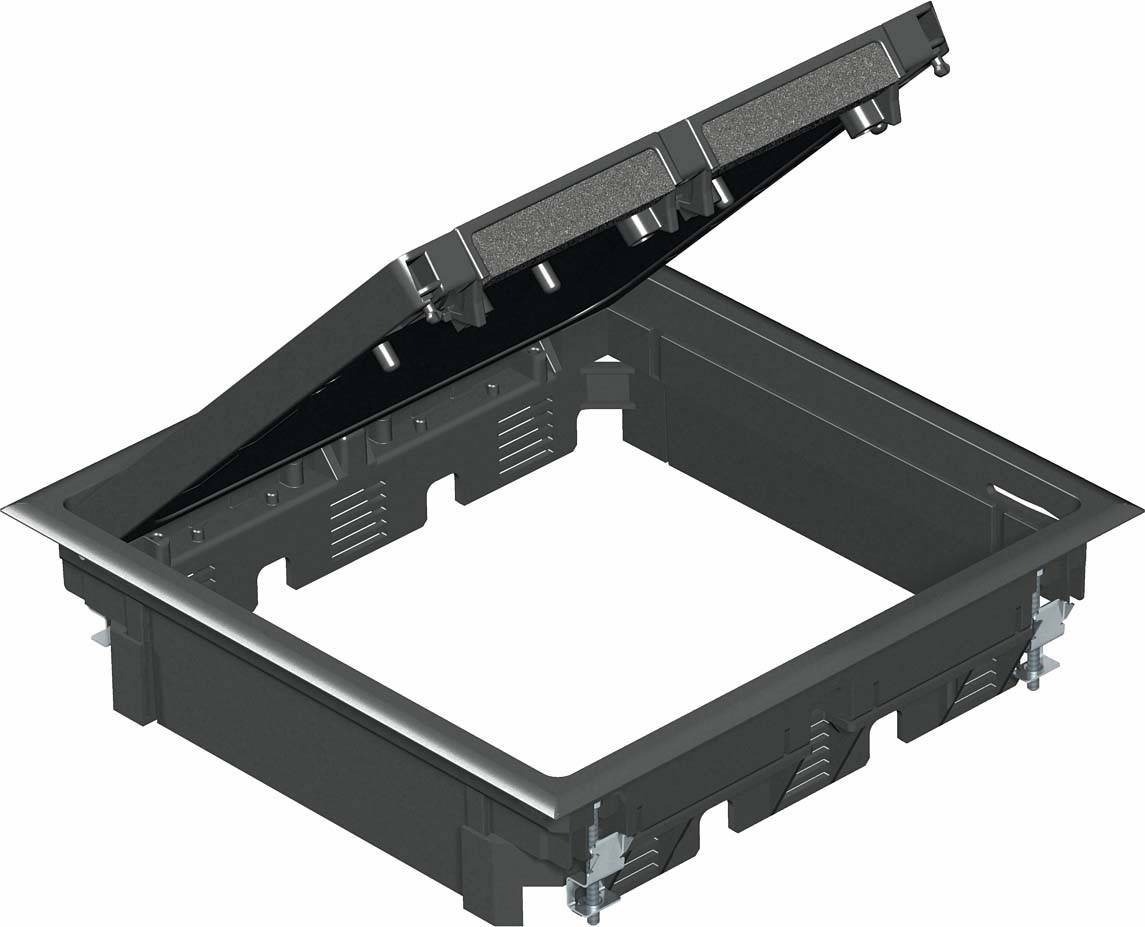

Insert for 9 installation devices in 3GB3 for use in duct systems. With universal mounting bracket, carpet protection framework, hinged lid and cord outlet made of polyamide. Flooring recess in the lid 10 mm
