OBO Bettermann GES9-3B U 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = square
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = other
- With flooring recess = Yes
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 73 mm
- Color = gray
- RAL-number =7011

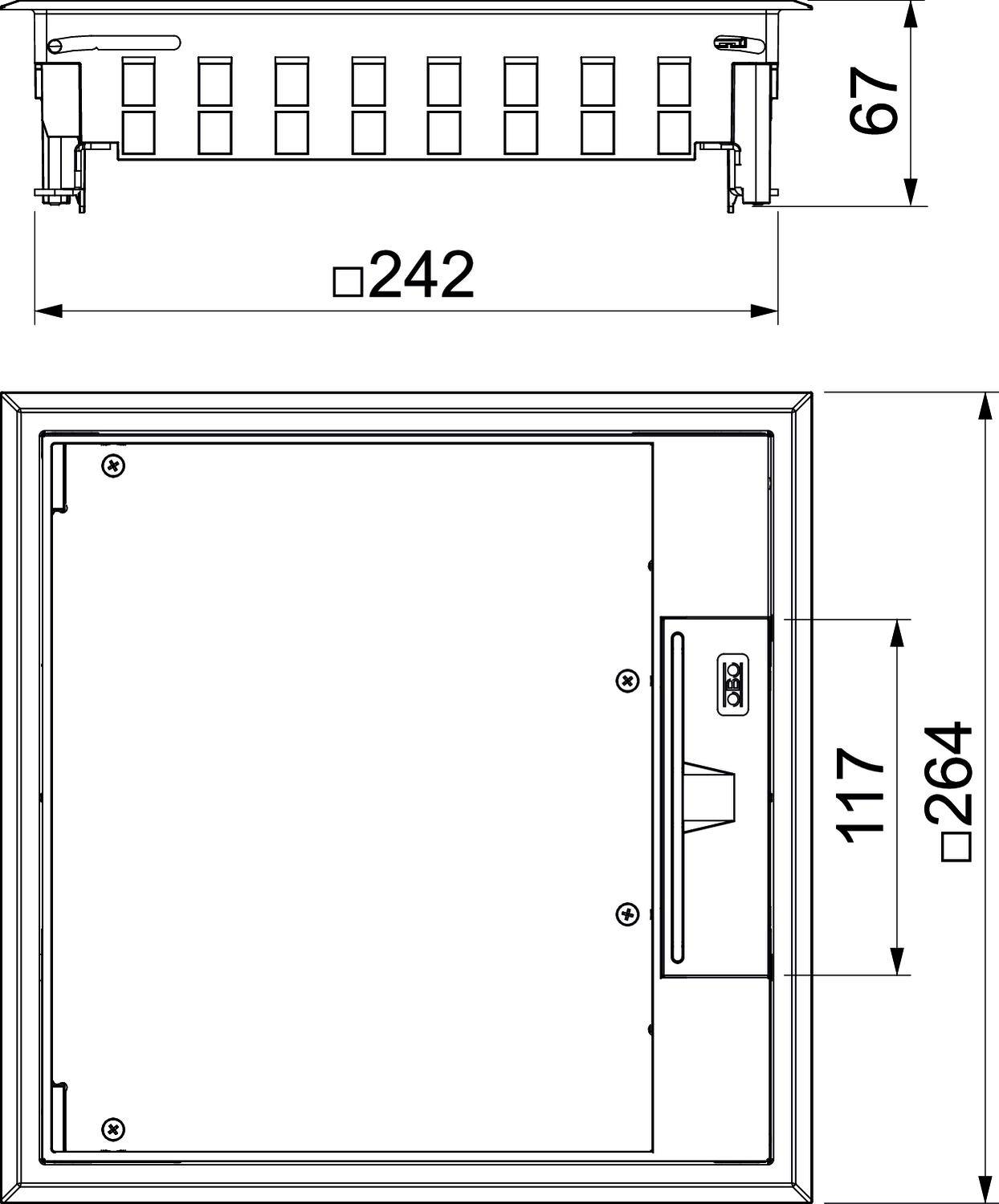

- Length Outer dimension = 264 mm
- Outside width dimension = 264 mm
- Length Installation dimension = 244 mm
- Installation dimensions: width = 244 mm
- Product type
Inset
- Length
264 mm
- Width
264 mm
- Dim
(L x W) 264 mm x 264 mm
- Factory colour
Grey
- Recess depth
73 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966018 OBO Bettermann GES9-3B U 7011 Inset
Description

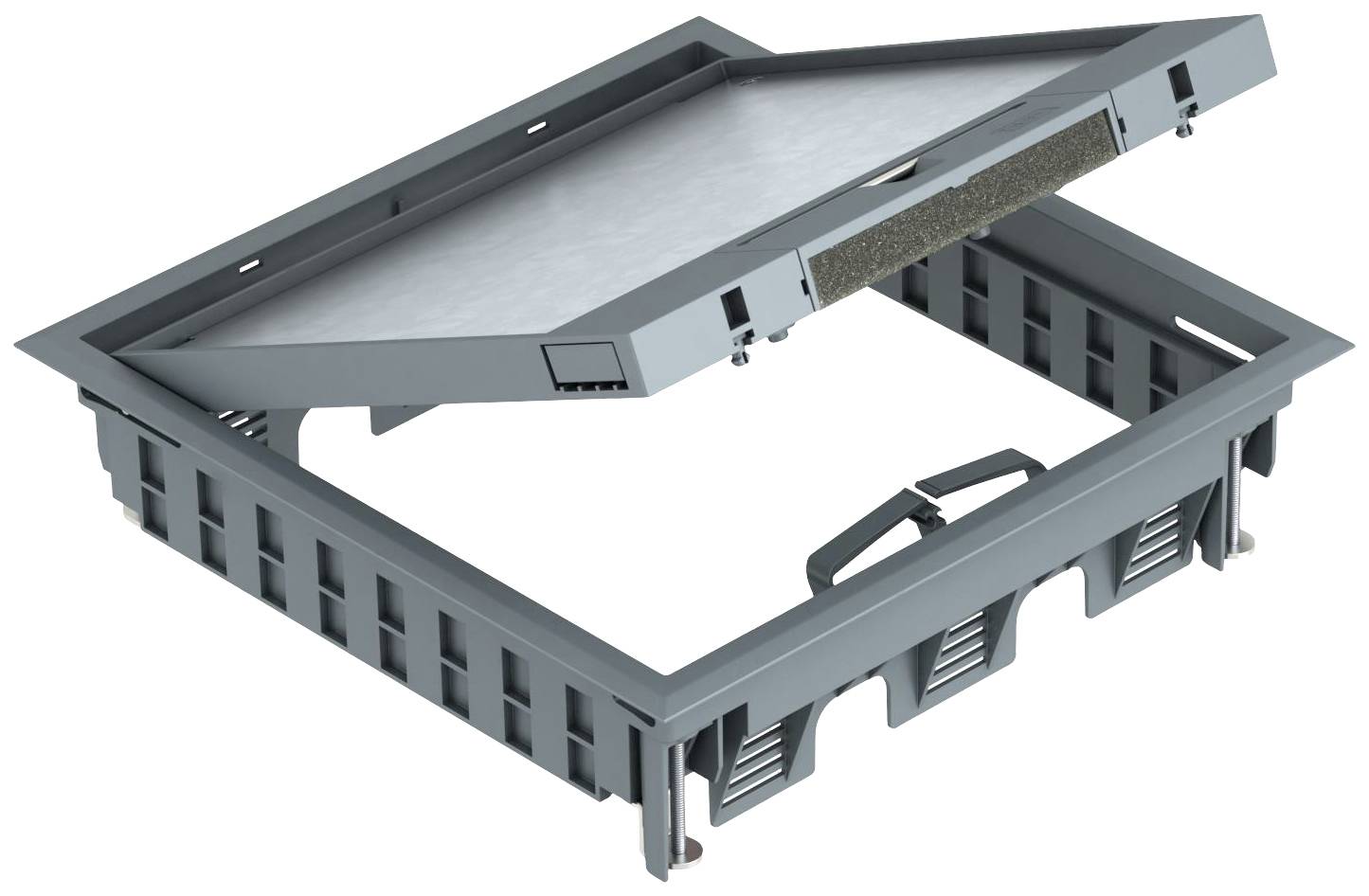

Device use with handle for 9 standard (Type EK) or 12 module-45 installation devices in 3 UT universal carrier 4 for use in channel systems and double bottom. Universal mounting brackets can be set to double bottom thickness up to 65 mm. Carpet protection framework, hinged lid and cord outlet from PC/ABS. Flooring, the recess in the lid 5 mm, if necessary also einstelllbar at 10 mm.
