OBO Bettermann GES9M-2 10U Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = square
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = rust free steel
- With flooring recess = Yes
- The depth of the flooring recess = 10 mm
- Flooring protection frame = Yes
- Min. Installation depth = 80 mm
- Color = other

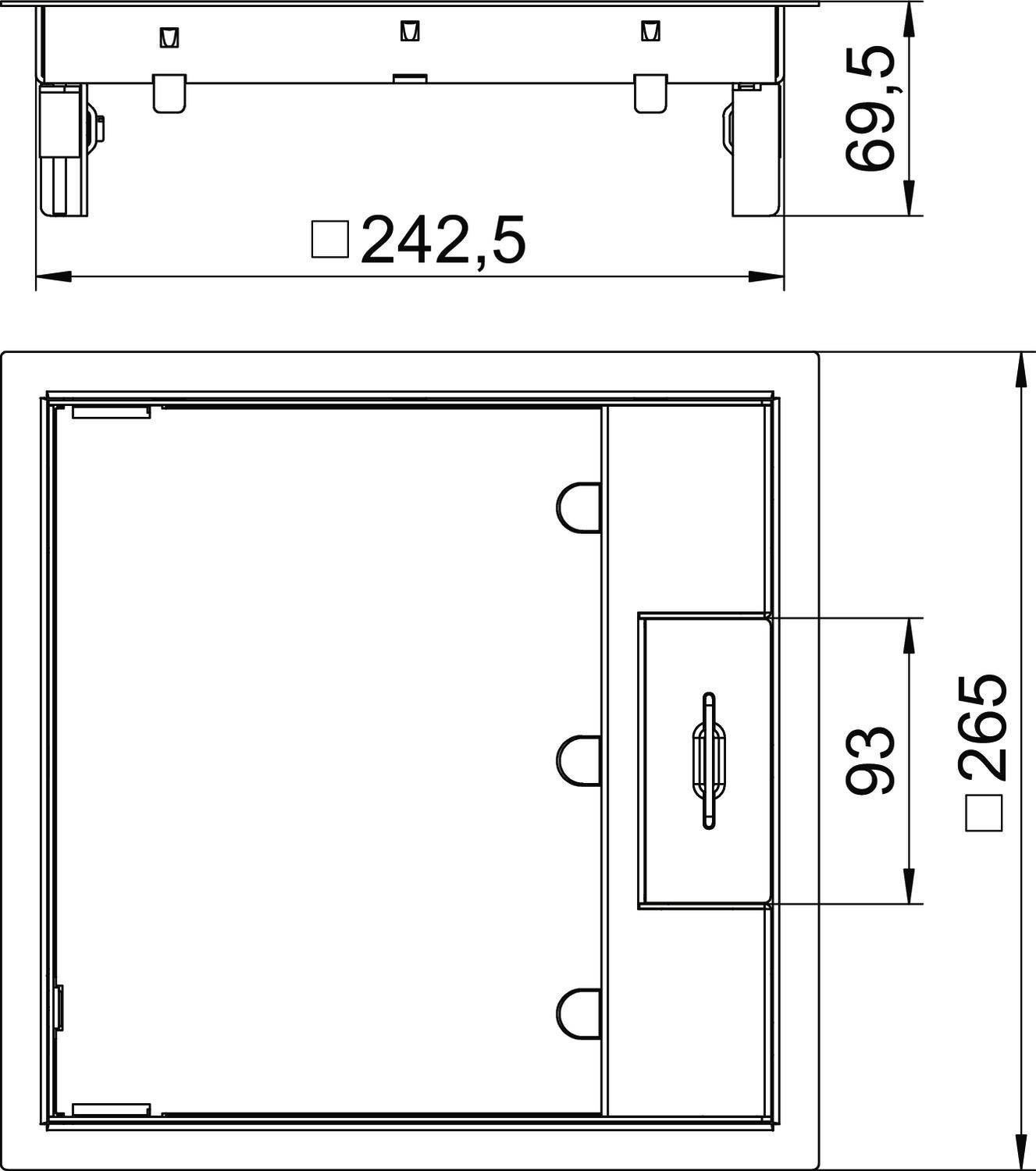

- Length Outer dimension = 265 mm
- Outside width dimension = 265 mm
- Length Installation dimension = 244 mm
- Installation dimensions: width = 244 mm
- Product type
Inset
- Length
265 mm
- Width
265 mm
- Dim
(L x W) 265 mm x 265 mm
- Recess depth
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959363 OBO Bettermann GES9M-2 10U Inset
Description

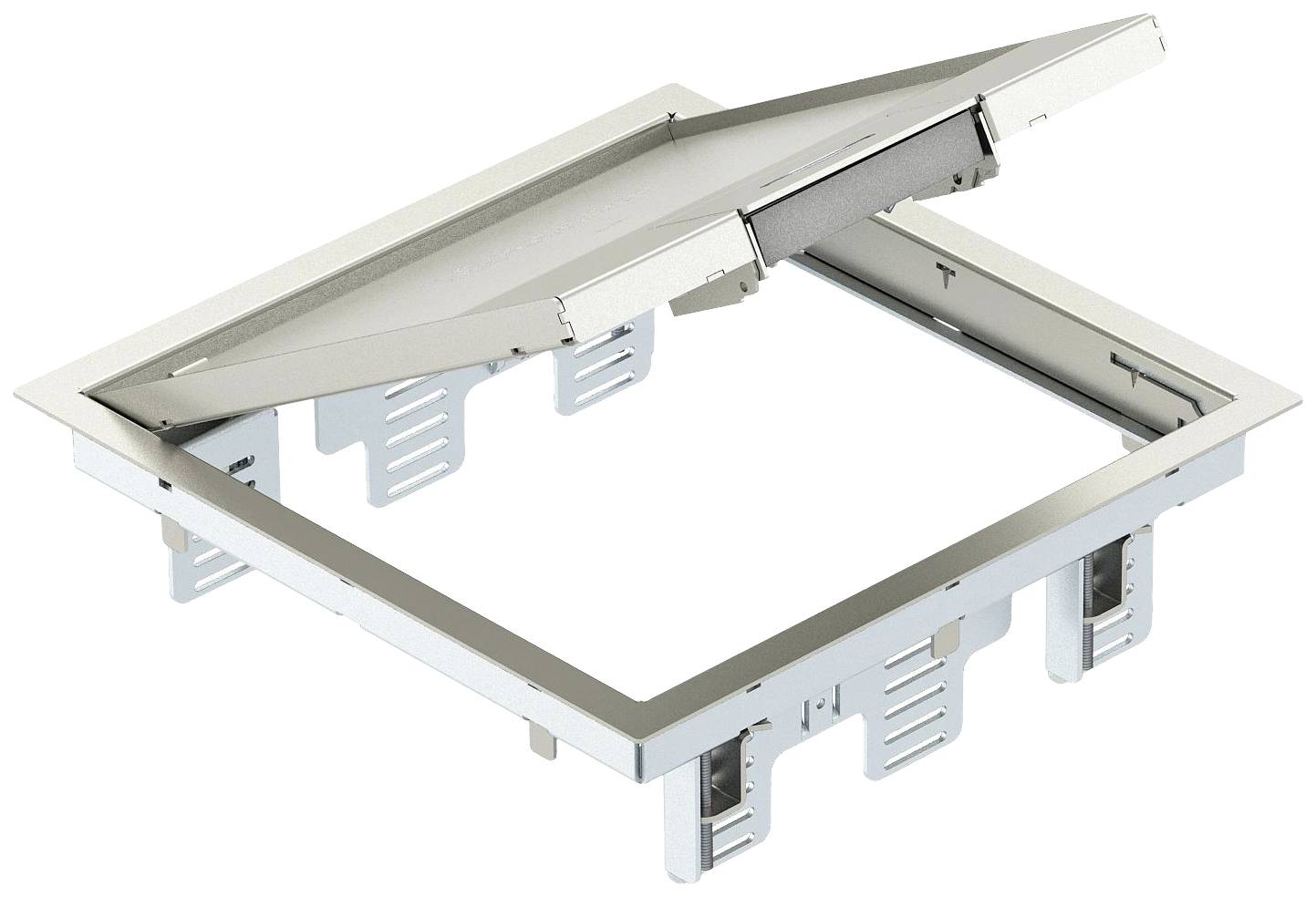

Insert with cord outlet for use in underground channel systems and double bottom. Mounting bracket with a clamping range up to 60 mm thickness. Cord outlet, carpet protective frame and hinged lid made of stainless steel, snap conductor made of galvanized steel. There are up to 12 separate devices module 45 can be installed.
