OBO Bettermann GESR7 10U 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = No
- Suitable for double-Ground = No
- Number of device cup = 3
- Material = polyamide (PA)
- With flooring recess = Yes
- The depth of the flooring recess = 10 mm
- Flooring protection frame = Yes
- Min. Installation depth = 75 mm
- Color = black
- RAL-number = 9011

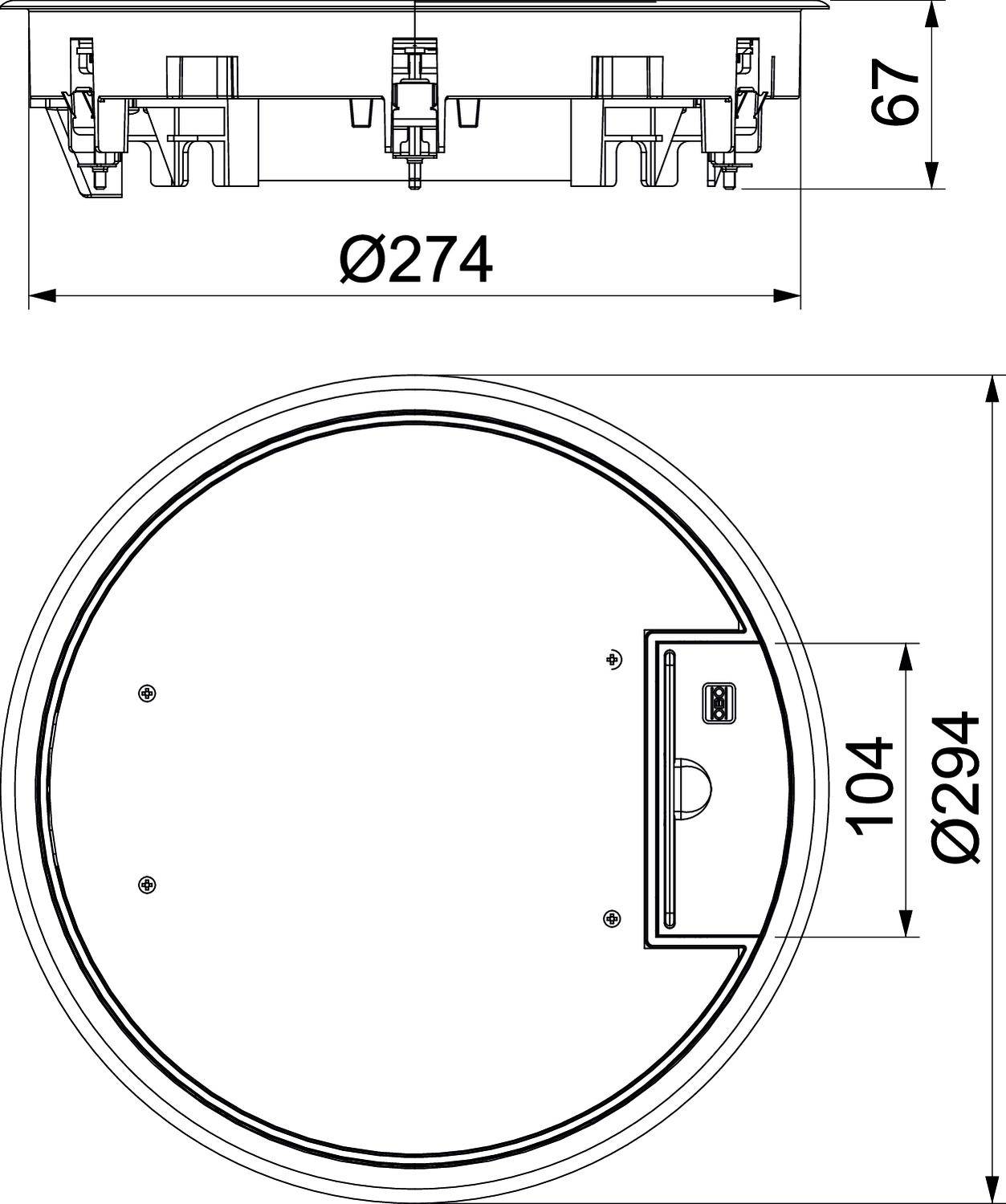

- Outer diameter = 294 mm
- Installation diameter = 264 mm
- Product type
Inset
- (Ø)
294 mm
- Dim
(Ø) 294 mm
- Factory colour
Black
- Recess depth
75 mm
- Outside Ø
294 mm
- Recess diameter
264 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962051 OBO Bettermann GESR7 10U 9011 Inset
Description

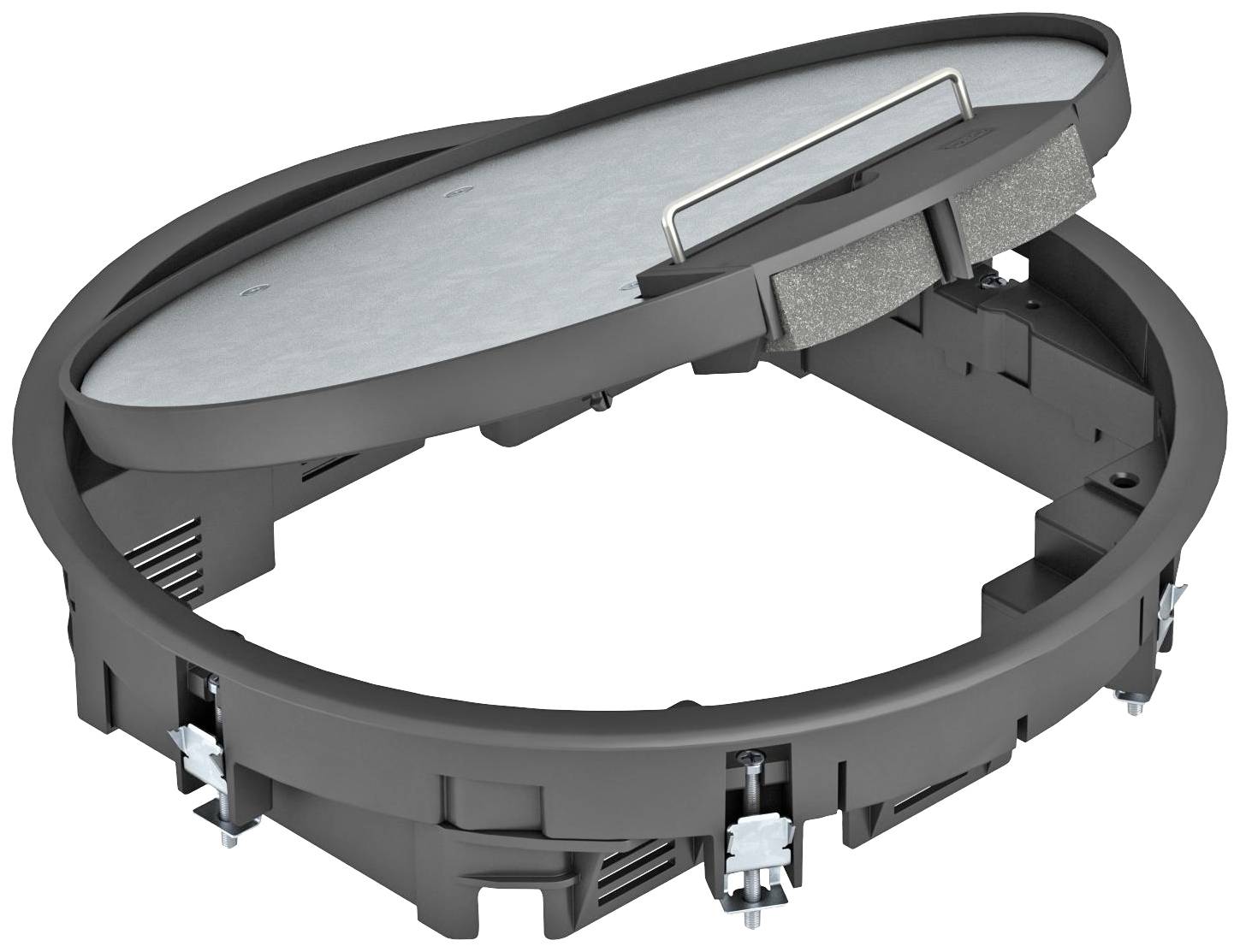

Device use around for 7 installation devices in 2 GB 2 and 1 GB3, for universal use in channel systems, double and hollow floors. Carpet protection framework, hinged lid and cord outlet made of polyamide. Flooring recess in the hinged lid
