OBO Bettermann GESR9-2U12T 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = polyamide (PA)
- With flooring recess = Yes
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 65 mm
- Color = gray
- RAL-number =7011

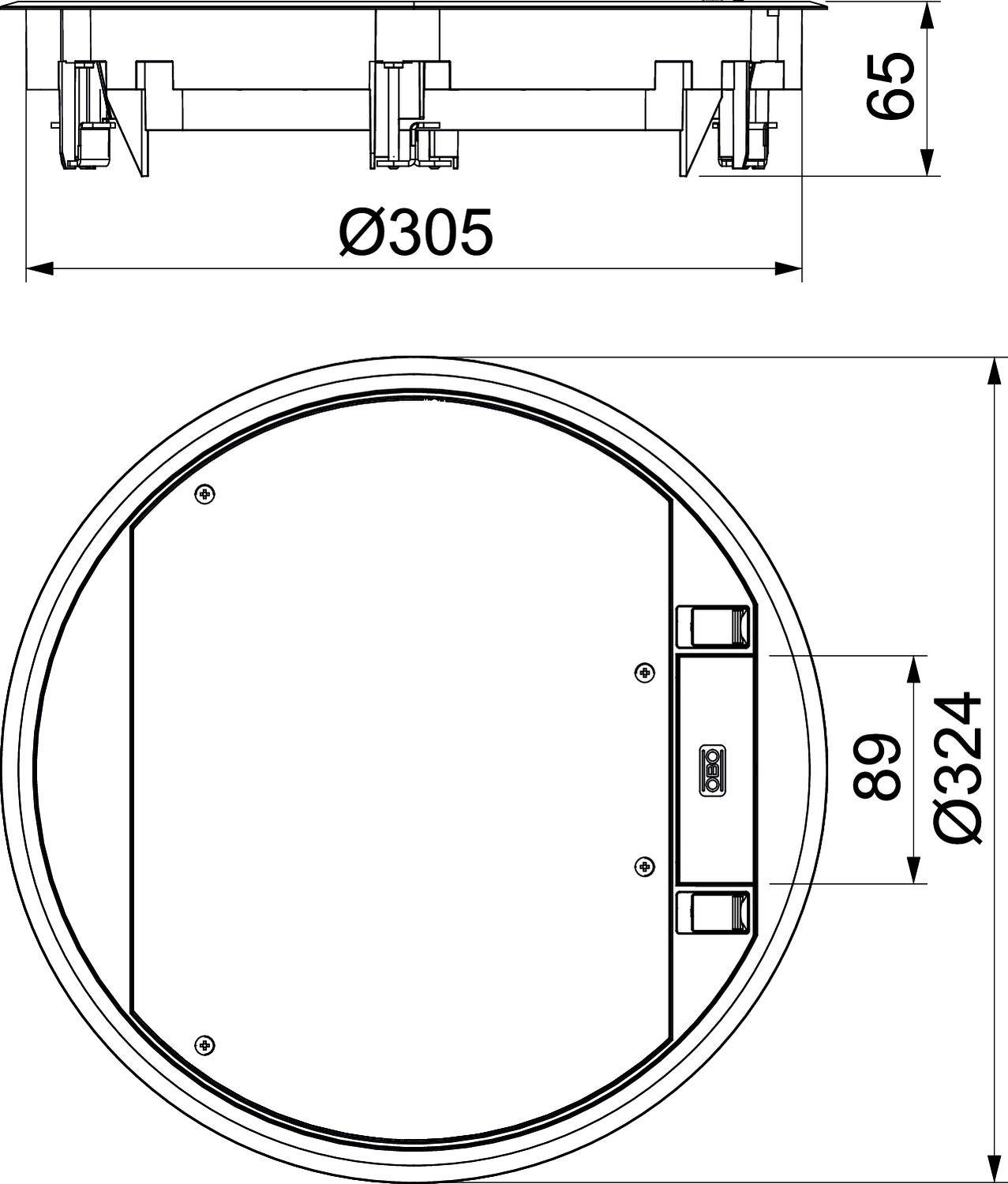

- Outer diameter = 324 mm
- Installation diameter = 304 mm
- Product type
Inset
- (Ø)
324 mm
- Dim
(Ø) 324 mm
- Factory colour
Grey
- Recess depth
65 mm
- Outside Ø
324 mm
- Recess diameter
304 mm
- Weight
2440 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958002 OBO Bettermann GESR9-2U12T 7011 Inset
Description

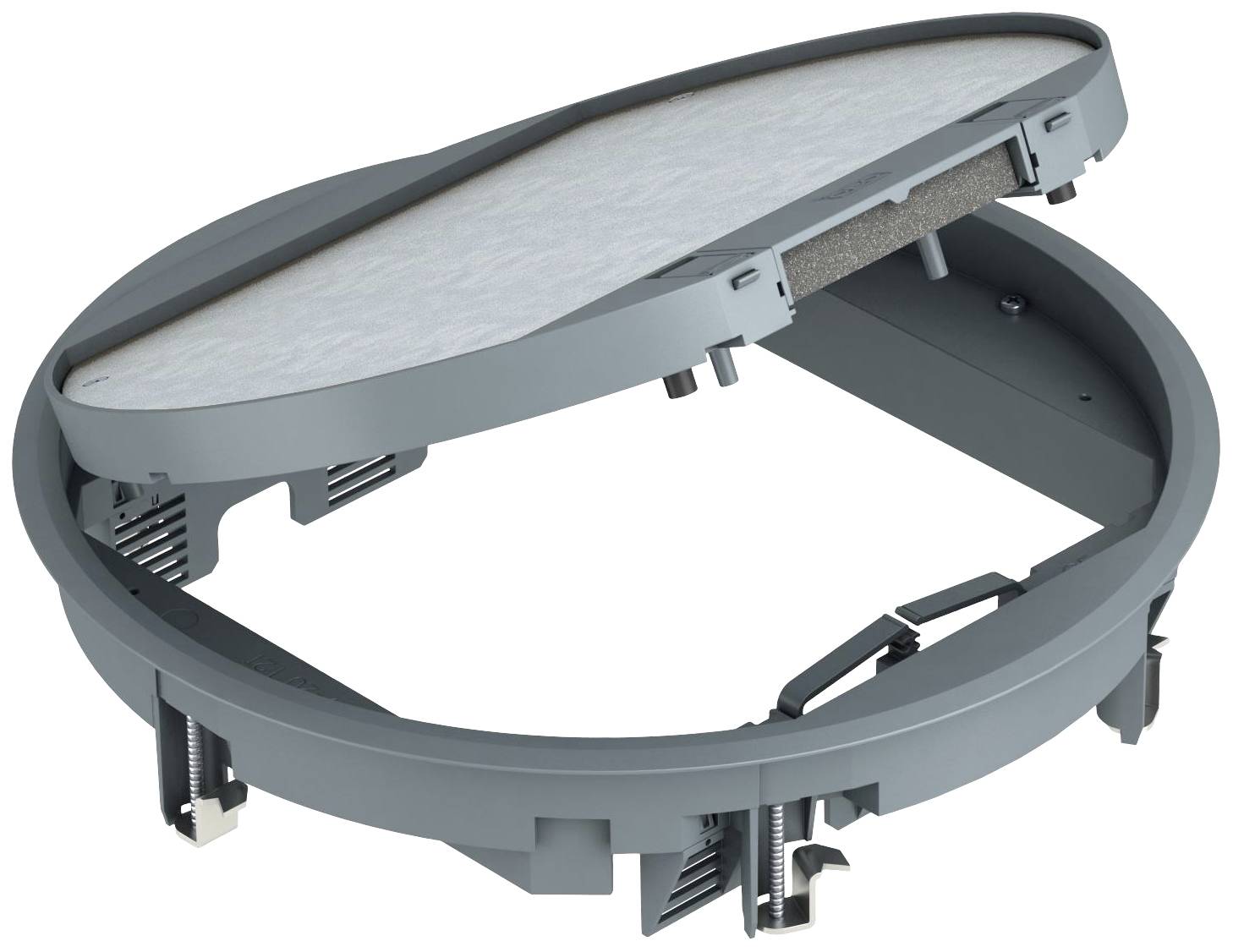

Device use around for 9 standard (Type EK) or 12 module-45 installation devices in 3GB3, for universal use in channel systems, double and hollow floors. Mounting hole dia. 305 mm. Carpet protection framework, hinged lid and cord outlet made of polyamide. For flooring insertion strength 5 mm. Alternatively, adjustable to 3, 10 or 12 mm.
This text is machine translated.
This text is machine translated.
