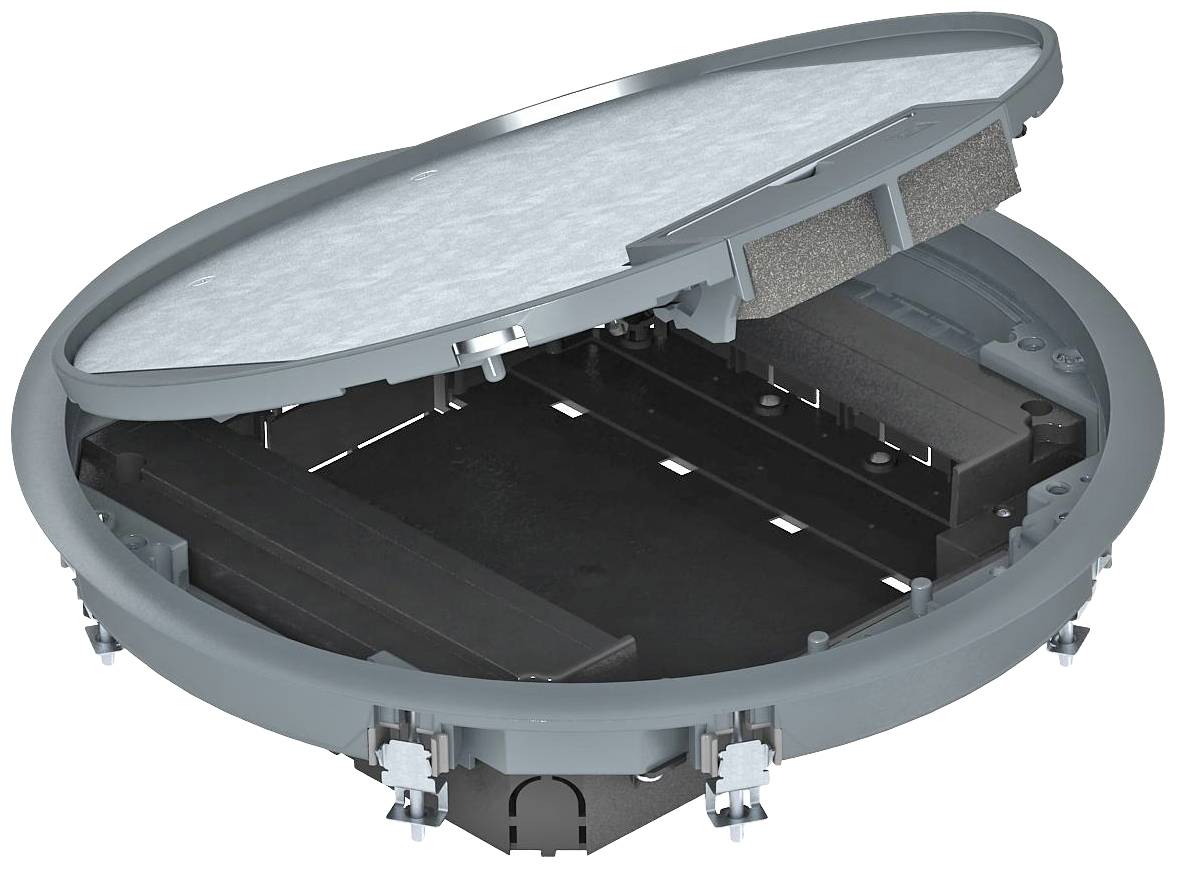

OBO Bettermann GESR9 55U V 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = No
- Suitable for double-Ground = No
- Number of device cup = 2
- Material = polyamide (PA)
- Surface = structured
- With flooring recess = Yes
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 55 mm
- Color = gray
- RAL-number =7011

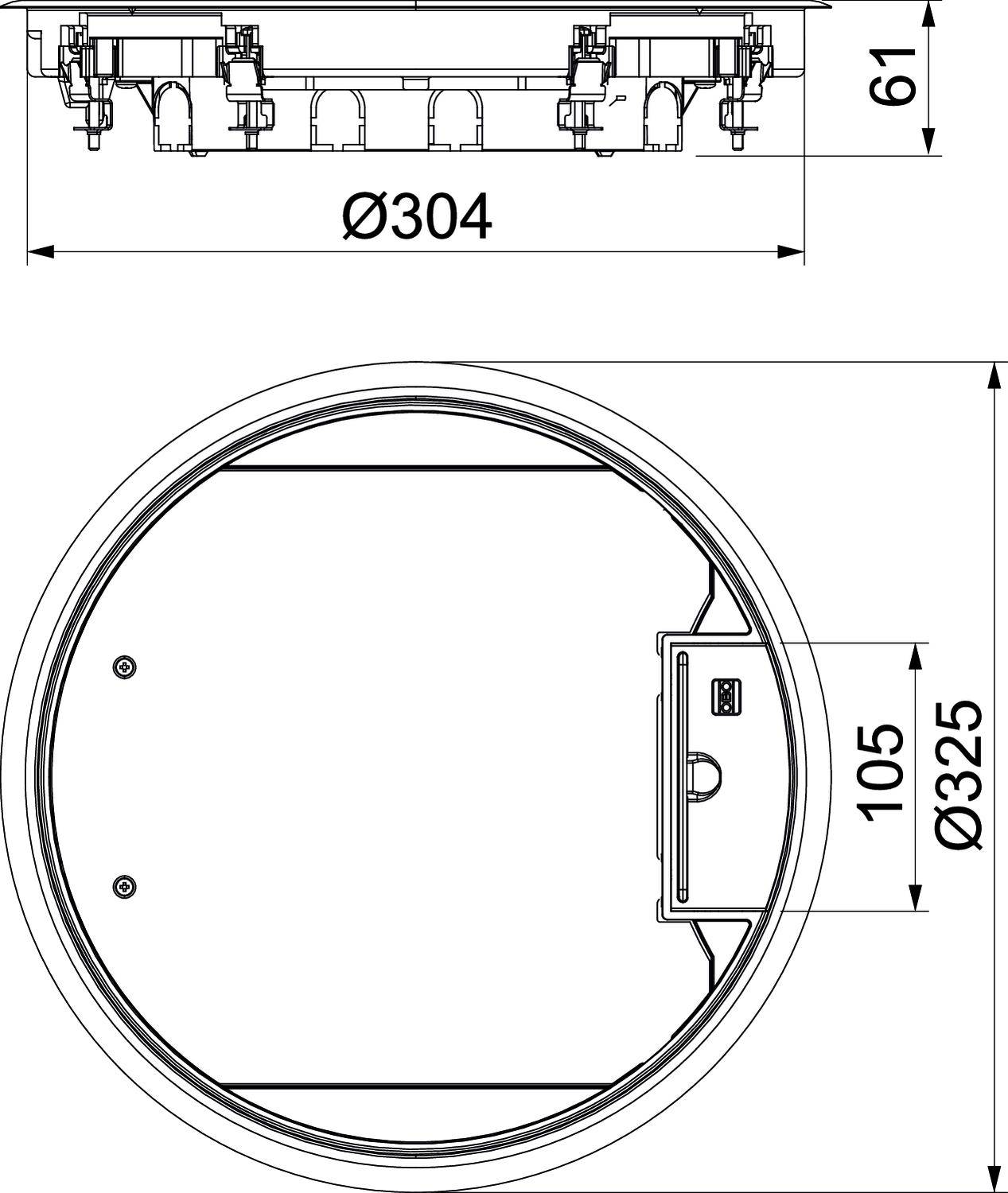

- Installation diameter = 305 mm
- Product type
Inset
- (Ø)
305 mm
- Height
55 mm
- Dim
(Ø x H) 305 mm x 55 mm
- Factory colour
Grey
- Recess depth
55 mm
- Recess diameter
305 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963380 OBO Bettermann GESR9 55U V 7011 Inset
Description
Insert GESR 9 with a fixed height of 55 mm. With two built-in housings for vertical installation of module 45 devices and four strain reliefs. The installation of the module 45-devices are two built-in frame is required. The device is equipped with universal mounting bracket
