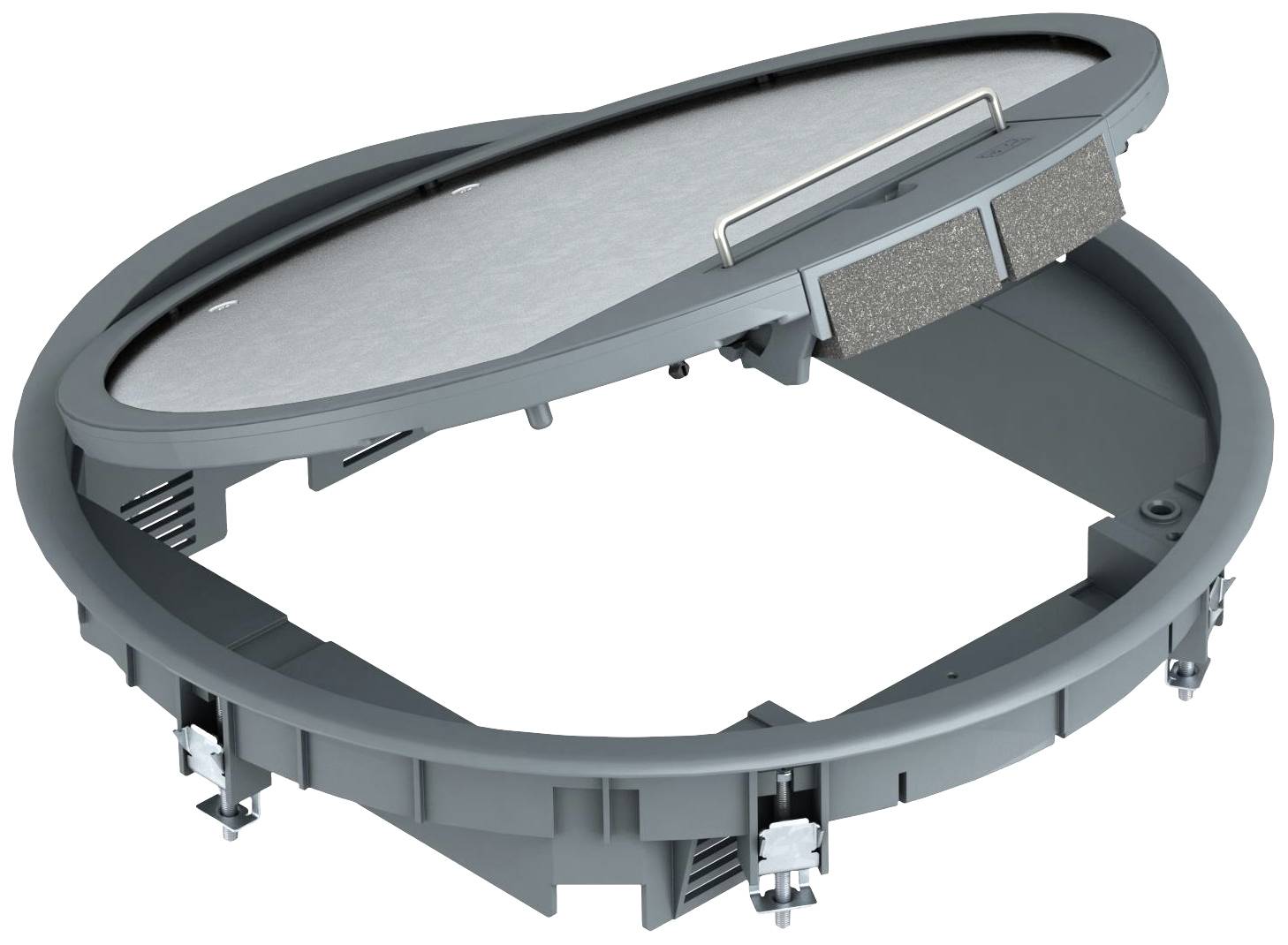

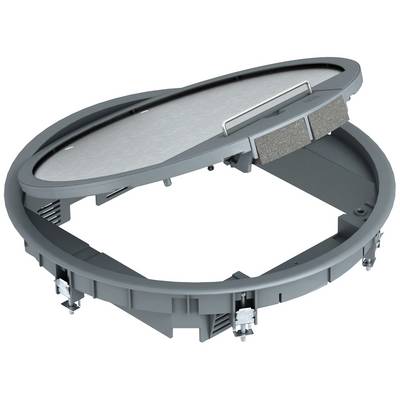

OBO Bettermann GESR9 SR U 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = polyamide (PA)
- With flooring recess = Yes
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 60 mm
- Color = gray
- RAL-number =7011

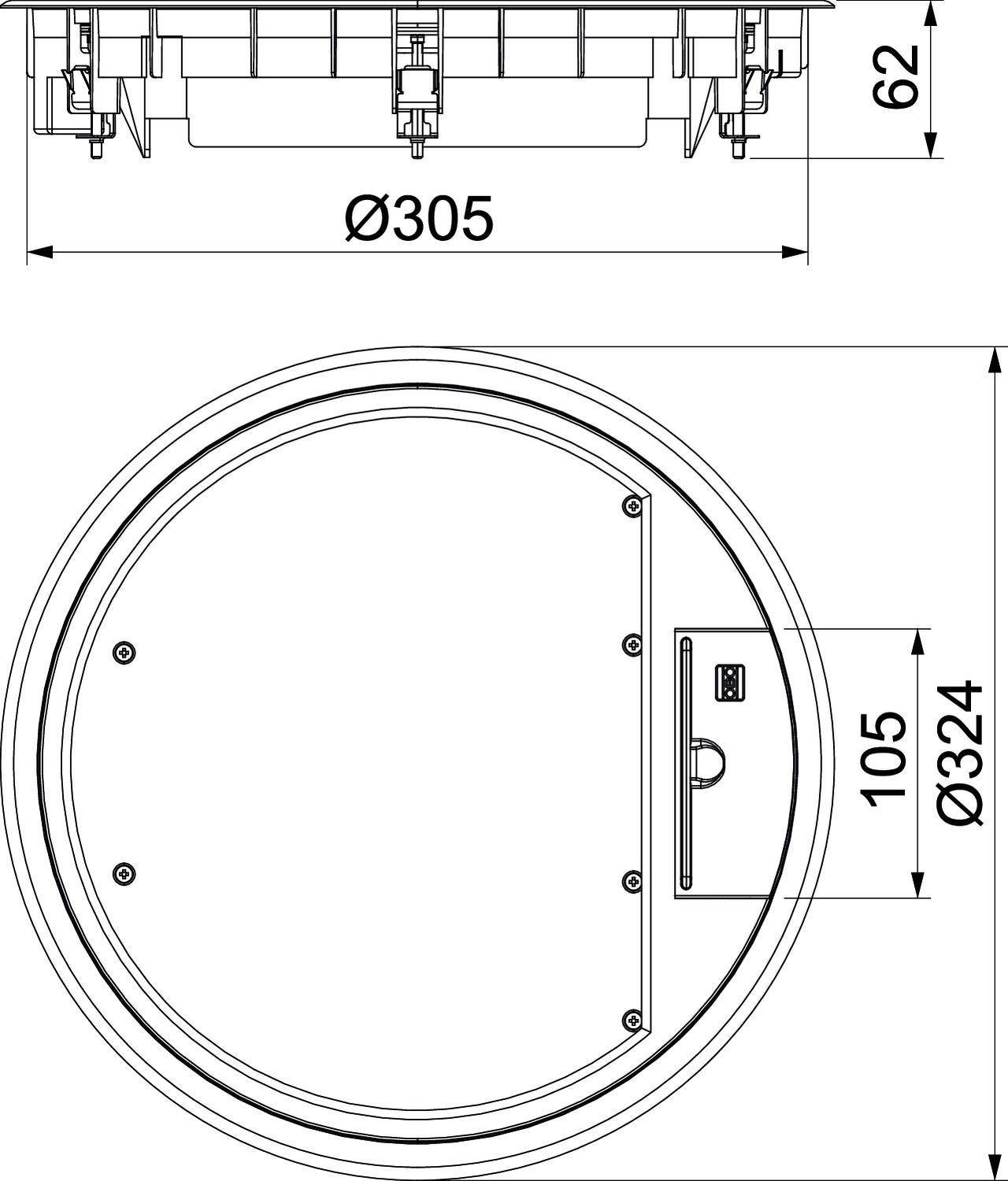

- Outer diameter = 324 mm
- Installation diameter = 303 mm
- Product type
Inset
- (Ø)
324 mm
- Dim
(Ø) 324 mm
- Factory colour
Grey
- Recess depth
60 mm
- Outside Ø
324 mm
- Recess diameter
303 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959322 OBO Bettermann GESR9 SR U 7011 Inset
Description
Device use around for 9 installation devices in 3GB3 for universal use in channel systems, double and hollow floors.< br /> carpet protection framework, hinged lid and cord outlet made of polyamide. Flooring recess in the lid 10 mm
