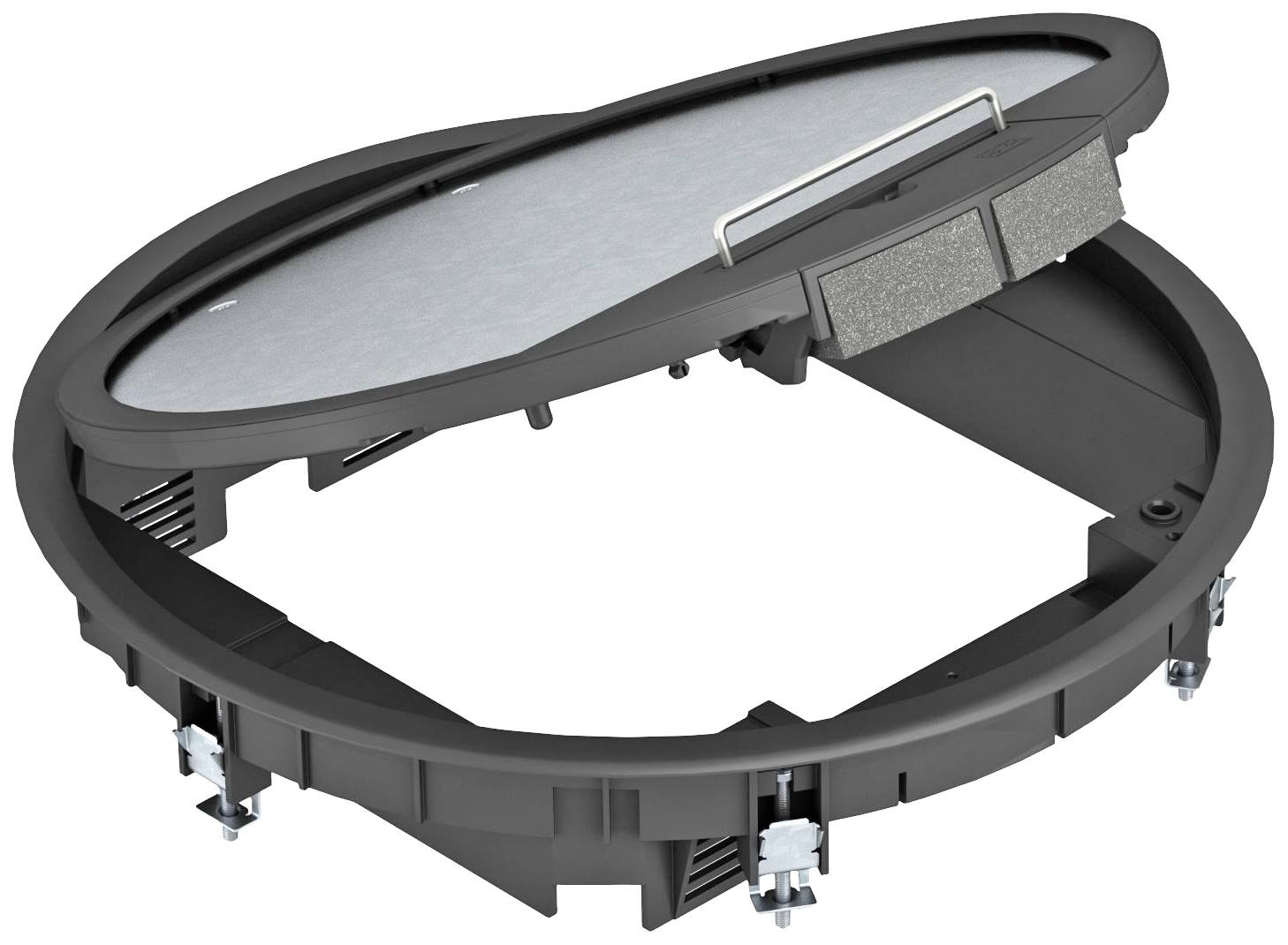

OBO Bettermann GESR9 SR U 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = polyamide (PA)
- With flooring recess = Yes
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 60 mm
- Color = black
- RAL-number = 9011

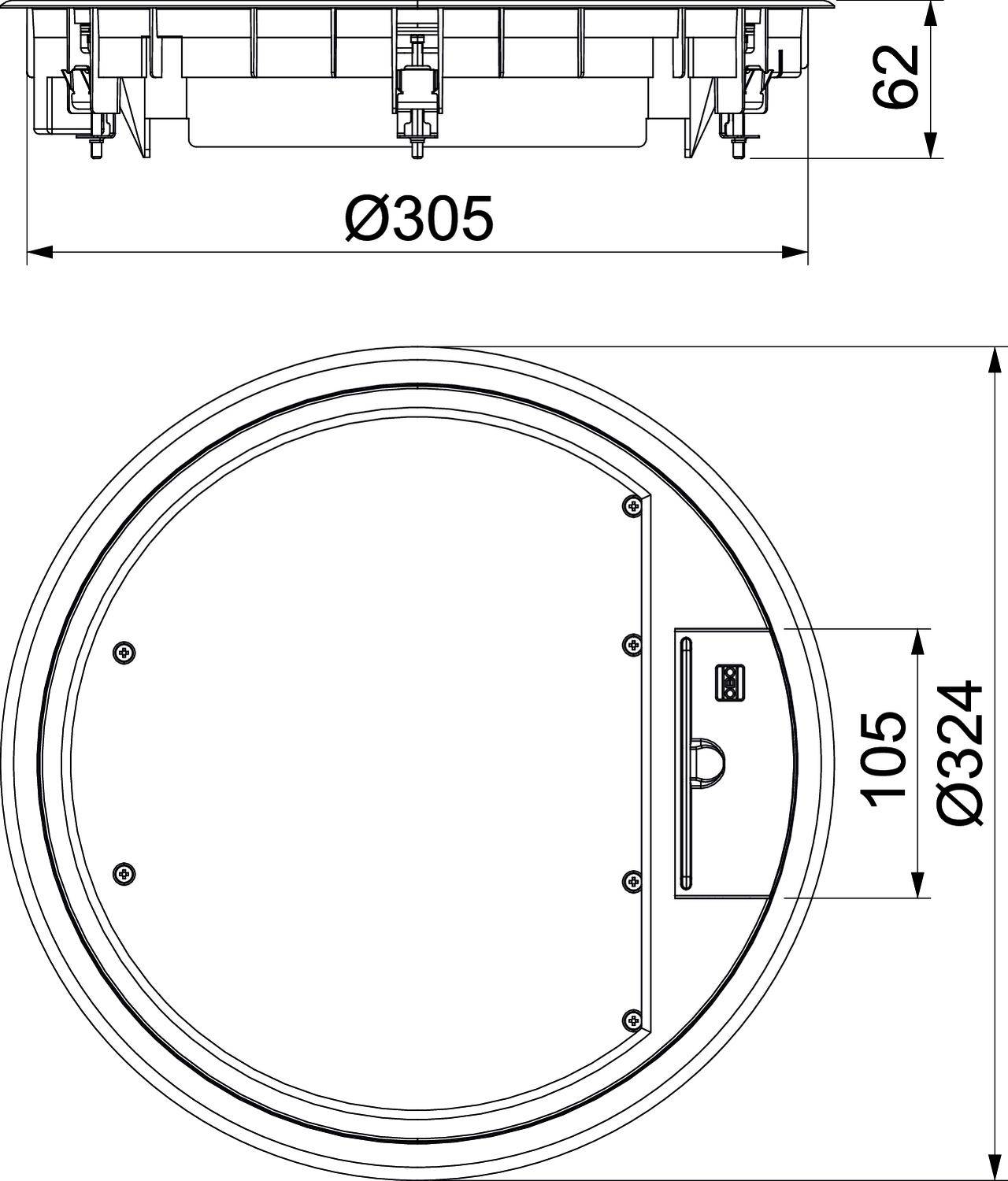

- Outer diameter = 324 mm
- Installation diameter = 304 mm
- Product type
Inset
- (Ø)
324 mm
- Dim
(Ø) 324 mm
- Factory colour
Black
- Recess depth
60 mm
- Outside Ø
324 mm
- Recess diameter
304 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957979 OBO Bettermann GESR9 SR U 9011 Inset
Description
Device use around for 9 installation devices in 3GB3, for universal use in channel systems, double and hollow floors. Hinged lid with internal carpet protection frame. Mounting hole dia. 305 mm. Carpet protection framework, hinged lid and cord outlet made of polyamide. For flooring insertion strength 5 mm.
